signal lights don't work all the time will flash sometime, replaced the turn signal switch
Mar 6, 2011 at 7:38 PM
signal lights
2001 DODGE RAM
FRANKJARONE
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Front or rear, both? Check all bulbs and sockets where applicable. Sometimes not good contact. Maybe combination flasher?
When problem is ongoing, check for voltage at the turn signals. At the lower rear, the dark green wire with brown tracer is voltage for turn/brake, they use the same bulb filament, just not at the same time.
When problem is ongoing, check for voltage at the turn signals. At the lower rear, the dark green wire with brown tracer is voltage for turn/brake, they use the same bulb filament, just not at the same time.
Mar 6, 2011 at 8:06 PM

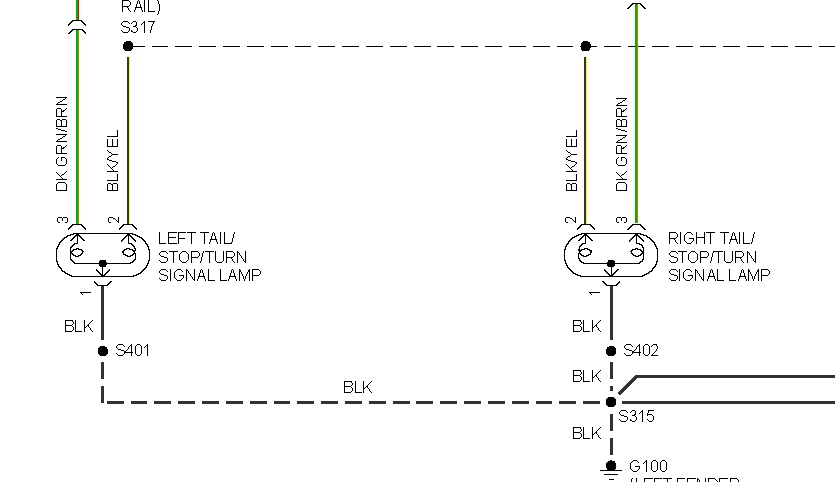

I forgot the wiring diagram.
Image (Click to enlarge)
Mar 6, 2011 at 8:06 PM
