2001 Dodge Intrepid Torque specs

2001 DODGE INTREPID
190,000 MILES • 2.7L • 6 CYL • AUTOMATIC
Avatar
MAMACHICHE
  • MEMBER
  • 8 POSTS
I want to know if anyone can tell me the torque specs for the connecting rod and the main bearings caps on my 2001 dodge intrepid 2.7
Also which are my tie bolts, inner and outer cap bolts.
Please help
Nov 24, 2014 at 3:20 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

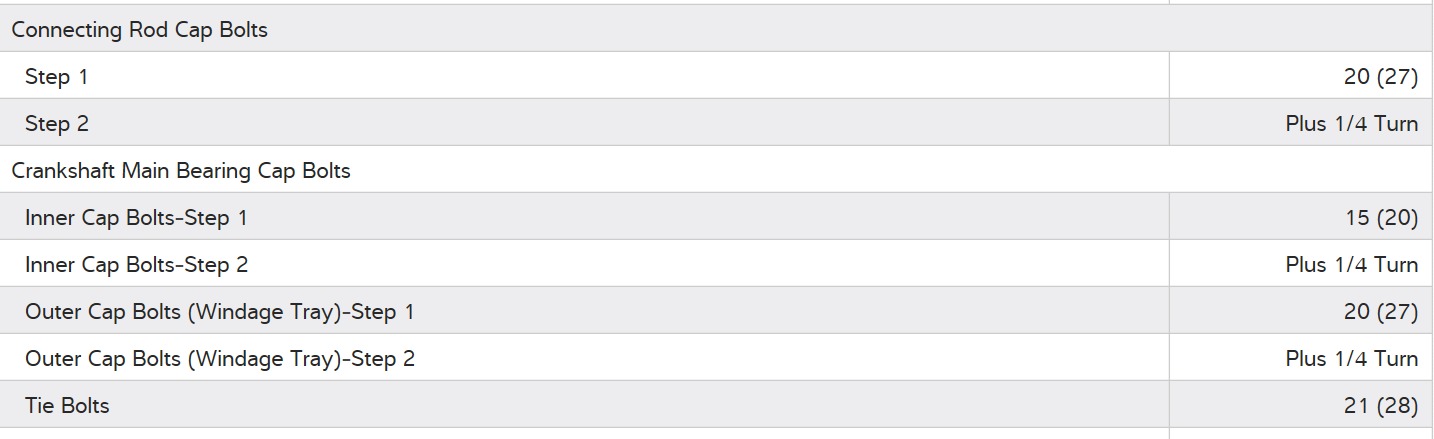

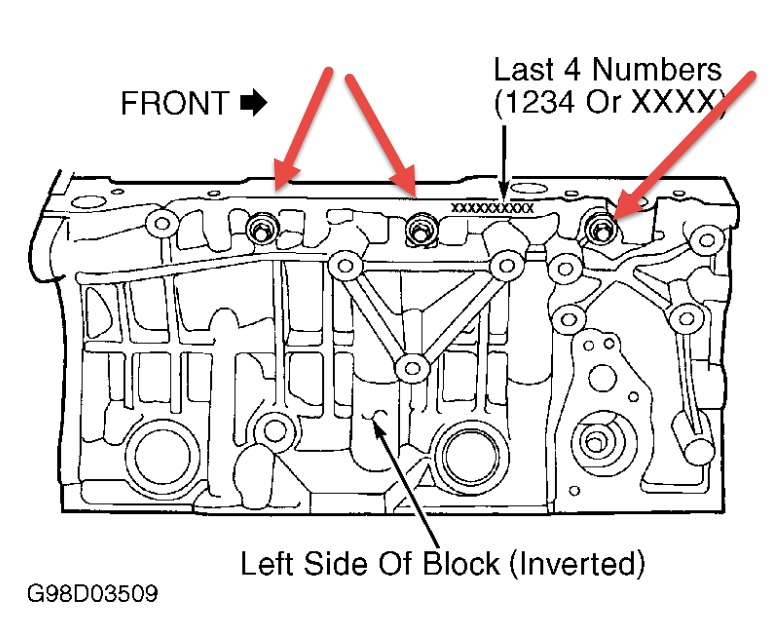

see pic NM in parenthesis tie bolts pointed out with arrows also studed bolts for main go to put windage tray on engine.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 24, 2014 at 6:43 AM
Avatar
MAMACHICHE
  • MEMBER
  • 8 POSTS
The windage tray is the cover that goes inside the oil pan correct? The one that covers the main and rod caps?
Nov 24, 2014 at 8:31 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
yes it keeps oil foam off of main and rod caps good for about 10 hp
Nov 24, 2014 at 9:32 AM
