fuse panel location

2001 DAEWOO LANOS
49,000 MILES • 4 CYL • 2WD • MANUAL
Avatar
GINKNA
  • MEMBER
  • 1 POST
I have a daewoo lanos 2001 and i dont have the fuse panel so i dont know which fuses are for which, how can i get my hands on one? Also my car's heating and air doesn't change vents.
Nov 23, 2010 at 12:22 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

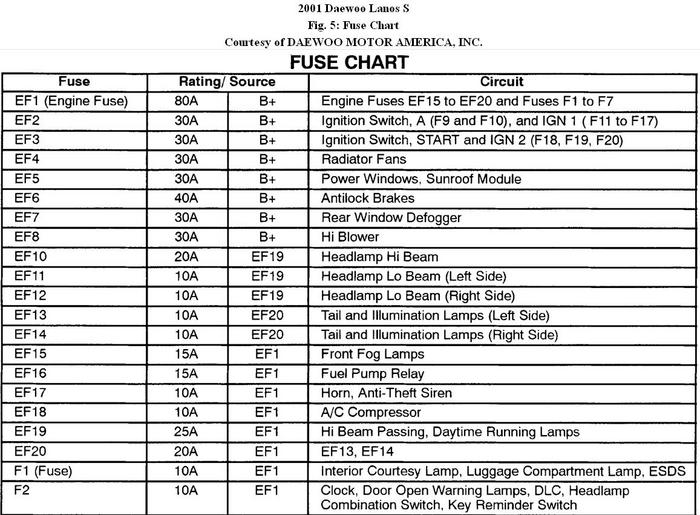

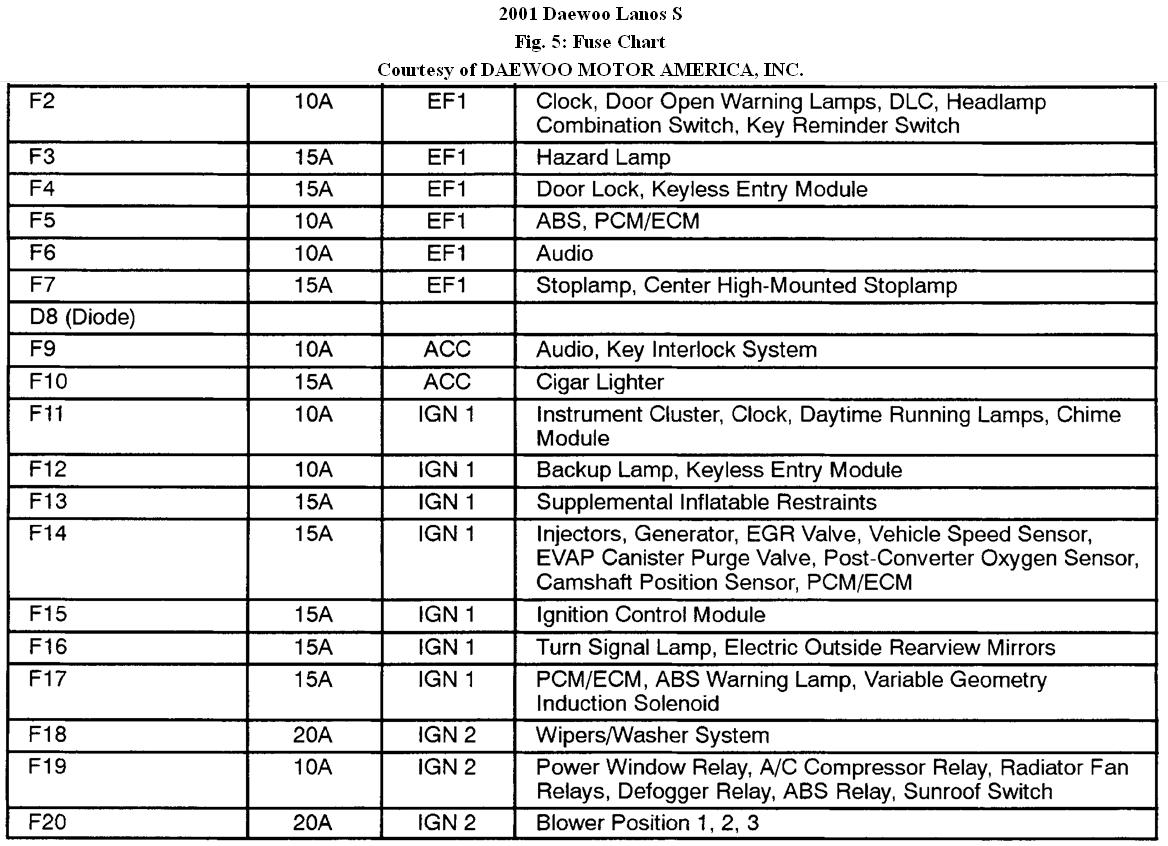

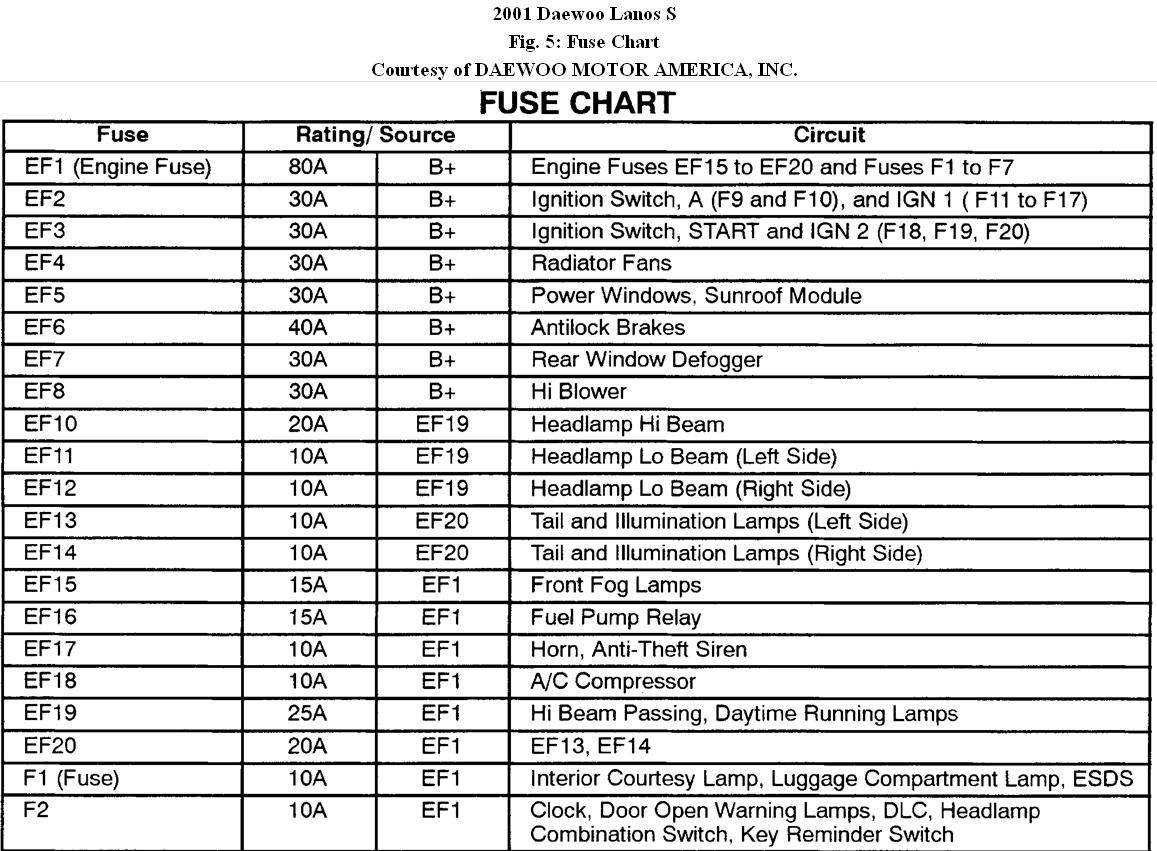

Here are the fuse panel legends and a guide to help test for power

https://www.2carpros.com/articles/how-to-check-a-car-fuse

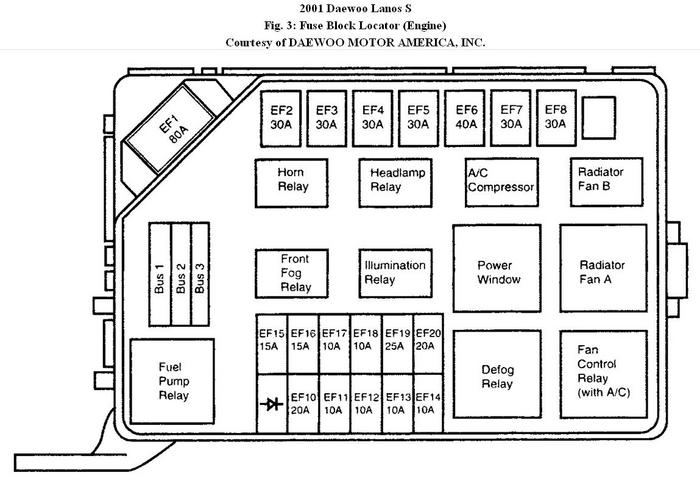

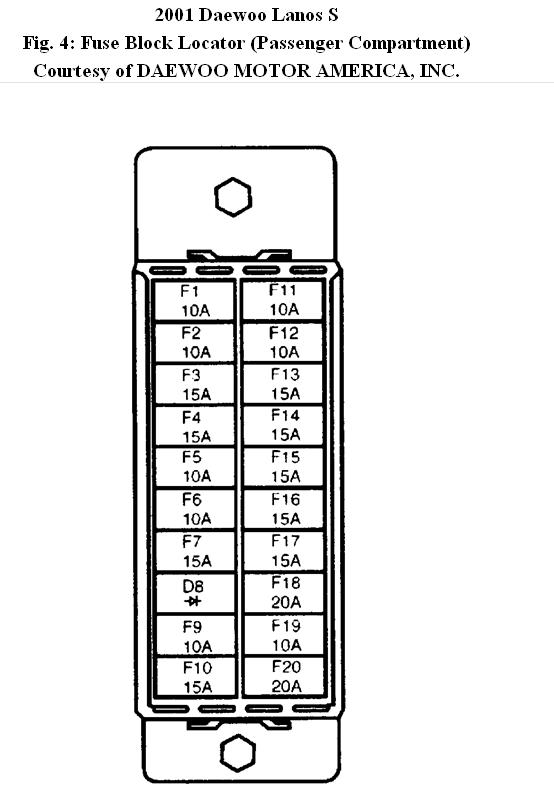

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Nov 23, 2010 at 3:04 PM
