Alternator harness wiring

2001 CHEVROLET TRACKER
145,000 MILES • 2.5L • V6 • 4WD • AUTOMATIC
Avatar
TLALLEN29
  • MEMBER
  • 8 POSTS
I was taking the alternator off and the two wire (blk/wht and Red/wht) wires came off connector. in which order do they go. Better yet which wire is in the middle? thank you.
Feb 27, 2014 at 10:10 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

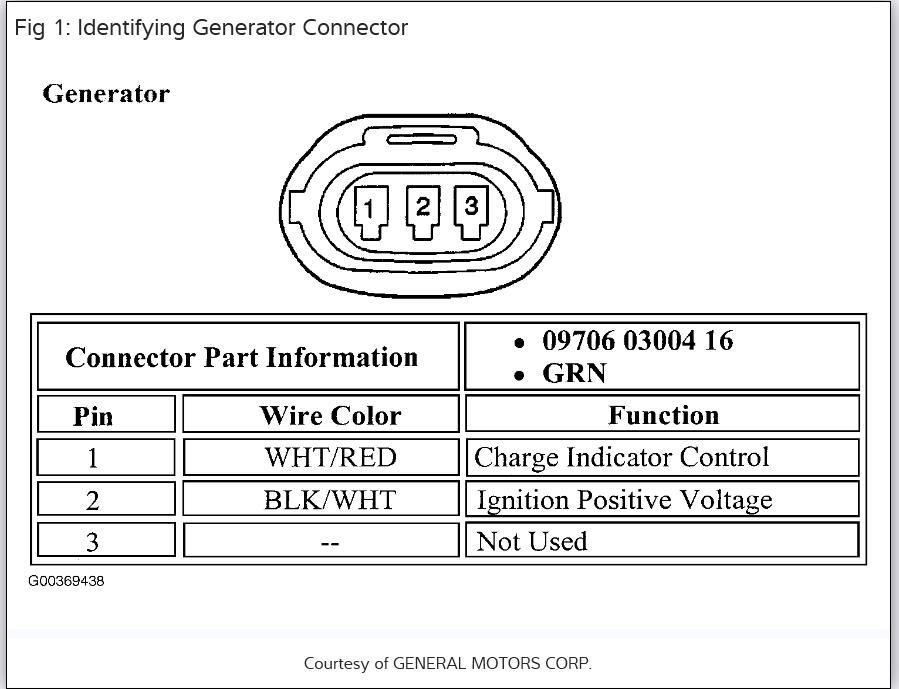

Black/White is the center pin. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Feb 27, 2014 at 11:26 AM
Avatar
TLALLEN29
  • MEMBER
  • 8 POSTS
Thank you worked like a charm.
Feb 28, 2014 at 9:15 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.
Feb 28, 2014 at 11:50 AM
