Steering column removal

2001 CHEVROLET SILVERADO
Avatar
FRNMRGN2
  • MEMBER
  • 2 POSTS
We have already removed top of dash and got to frame under dash we have it all loose. Now we cannot get it to go over steering column.
Dec 24, 2011 at 7:51 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
You would unplug the steering column disconnect the intermintant shaft at the base of the coloumn and there is a couple of bolts holding the column in.
Dec 24, 2011 at 7:56 PM
Avatar
FRNMRGN2
  • MEMBER
  • 2 POSTS
Where is the heater core located at from the dash area?
Dec 24, 2011 at 8:19 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

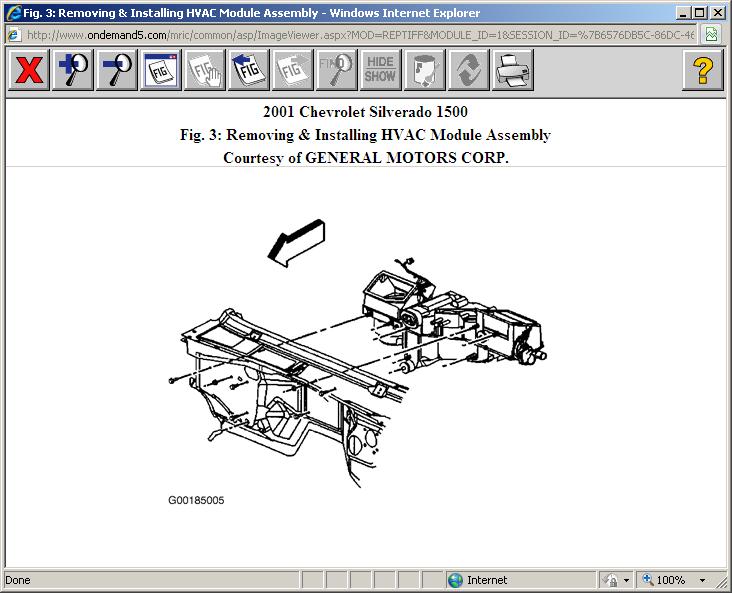

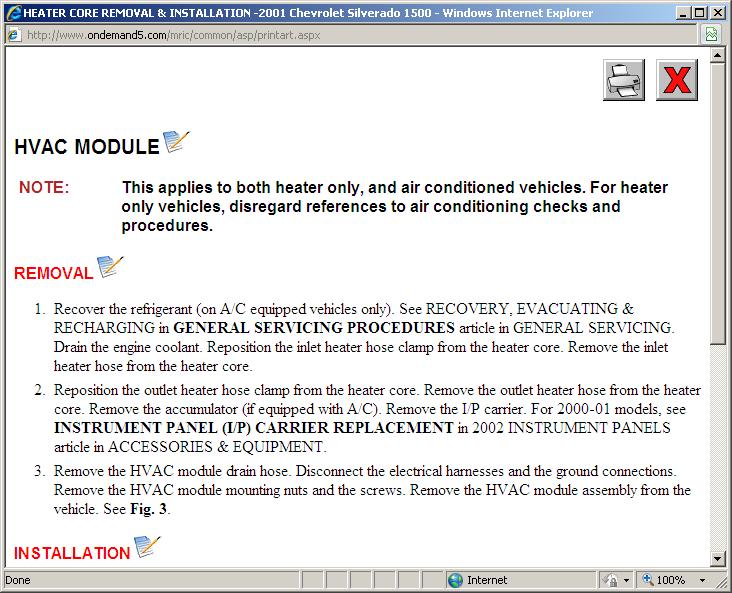

Behind the dash carrier in the HVAC module. I posted some instructions and a diagram.
Images (Click to enlarge)
Attached Media
Attached Media
Dec 24, 2011 at 9:52 PM
Avatar
GROVEKARA40
  • MEMBER
  • 1 POST
I need a diagram showing me how to remove and reinstall a steering column for a 1989 Chevrolet Celebrity six cylinder.
Jul 28, 2018 at 1:48 PM
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I am Danny.

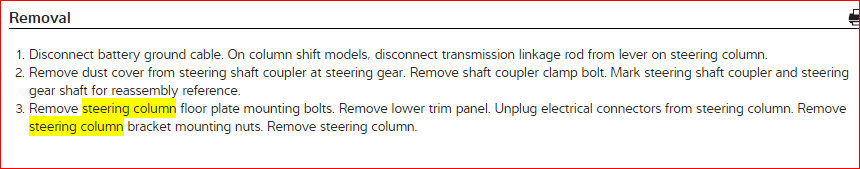

I have attached a few steps for you. Is this a tilt, non-tilt, or tilt-telescoping column? I can send a schematic on those as well. Hope this helps and thanks for using 2CarPros.
Danny-
Image (Click to enlarge)
Attached Media
Jul 28, 2018 at 3:24 PM
