Brake pedal goes to the floor

2001 CHEVROLET S-10
190,000 MILES • 4.6L • V6 • 2WD • AUTOMATIC
Avatar
BUSTER14
  • MEMBER
  • 1 POST
I just replaced the proportioning valve and am bleeding the brakes. Brake fluid squirting out at all points. Still pedal goes to floor. No braking power. Air bubbles in master cylinder. Do I need a new master cylinder? Vacuum booster checks out okay.
Oct 6, 2014 at 8:51 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

So where is it leaking from?
Is it from the proportioning valve? One of those lines?

Air bubble in the master cylinder could just be due to the leak as it allows air to enter the system.

So, the first step would be to fix the leaks. Then fill up with brake fluid and bleed the brakes.

https://www.2carpros.com/articles/how-to-bleed-or-flush-a-car-brake-system

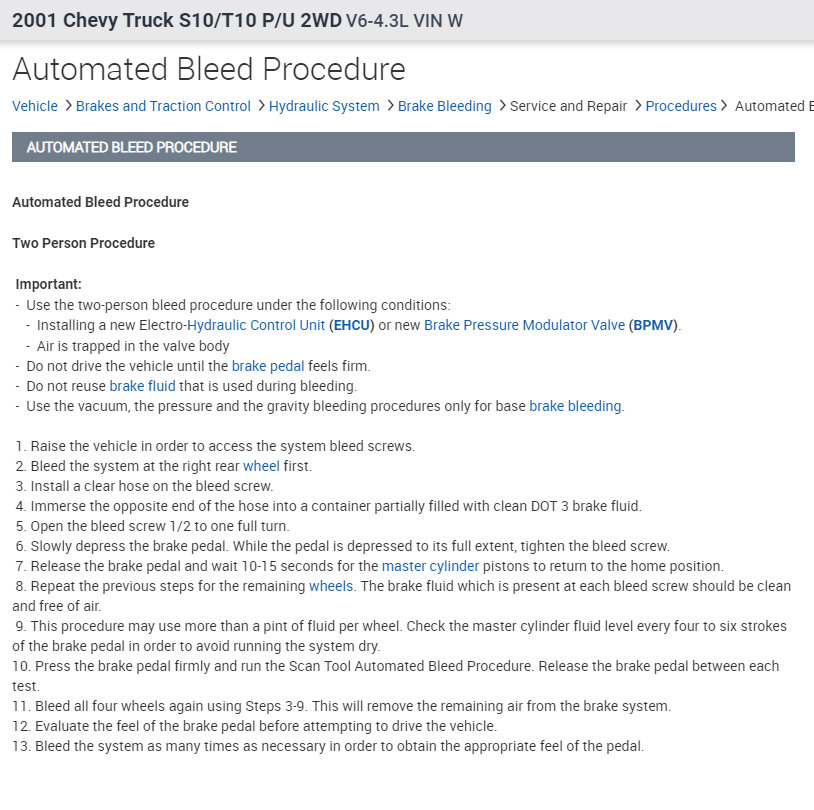

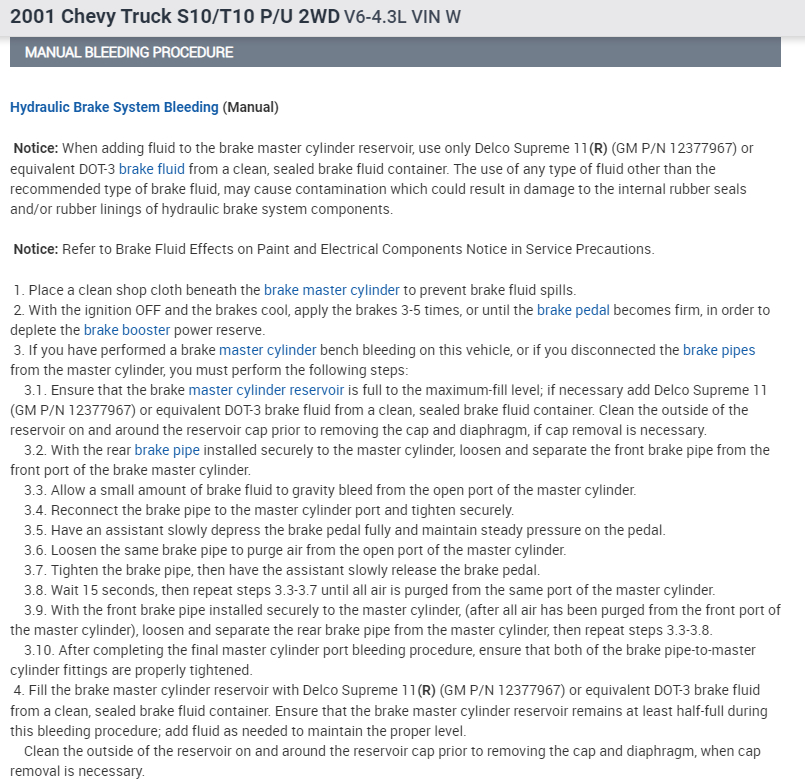

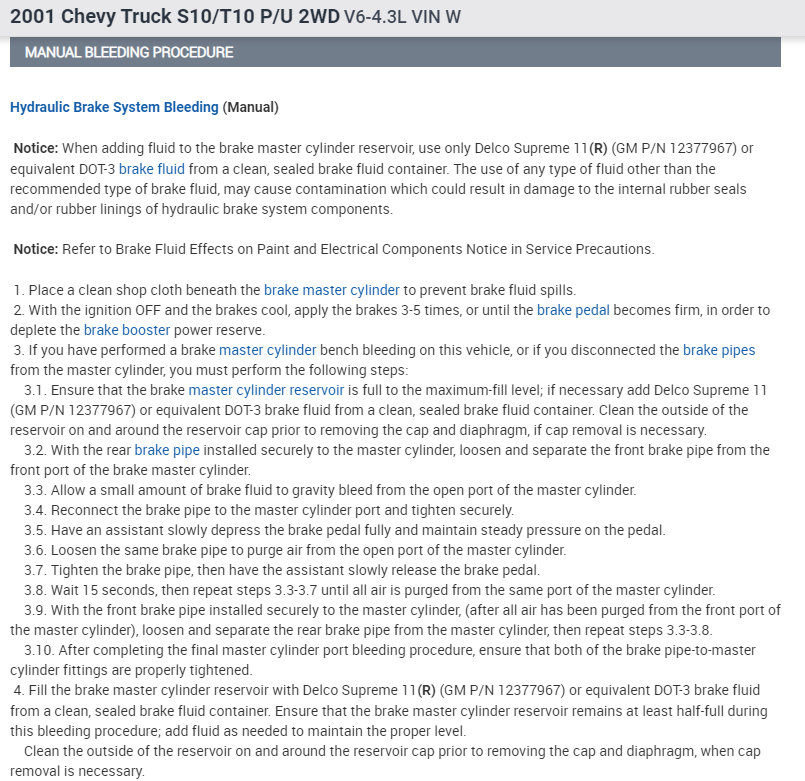

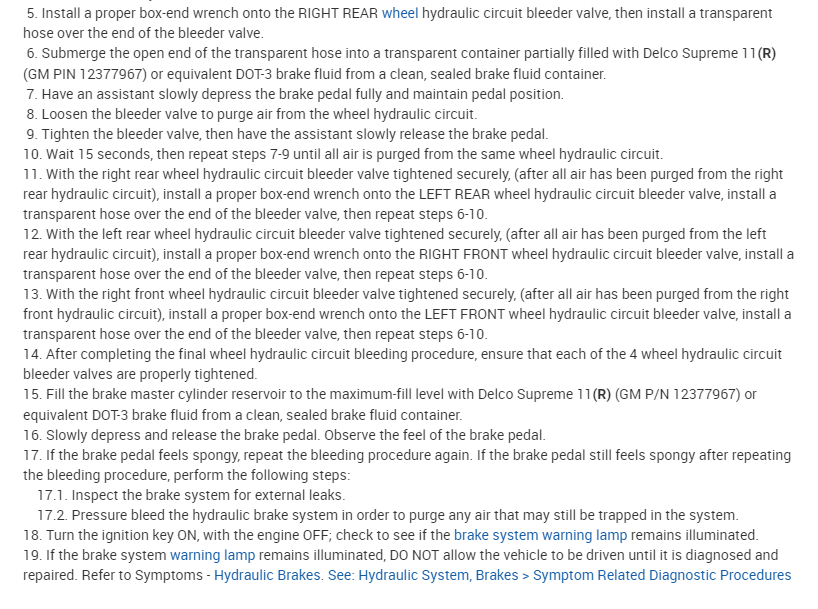

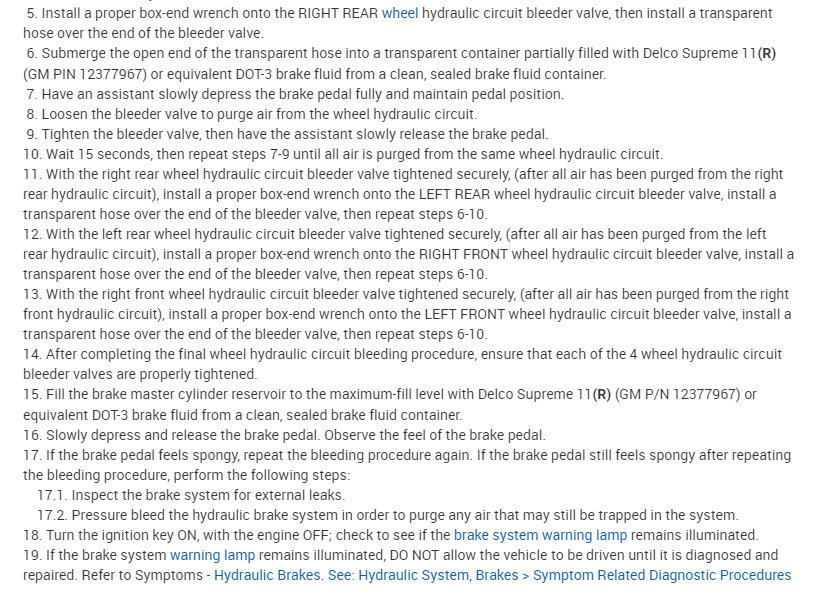

I have attached the brake bleeding procedure below.

Let me know a little more information about what you are experiencing.

Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 10, 2022 at 10:31 PM
