steering column removal

Hello,

Here are the instructions on how to replace the steering column with diagrams below.

1. Disconnect negative battery cable.

2. Disconnect steering column harness connectors. Remove nut and bolt from upper to lower shaft connection. Remove upper and lower steering column support nuts. Remove steering column, rotating column to allow shift lever to clear instrument panel opening, if necessary.

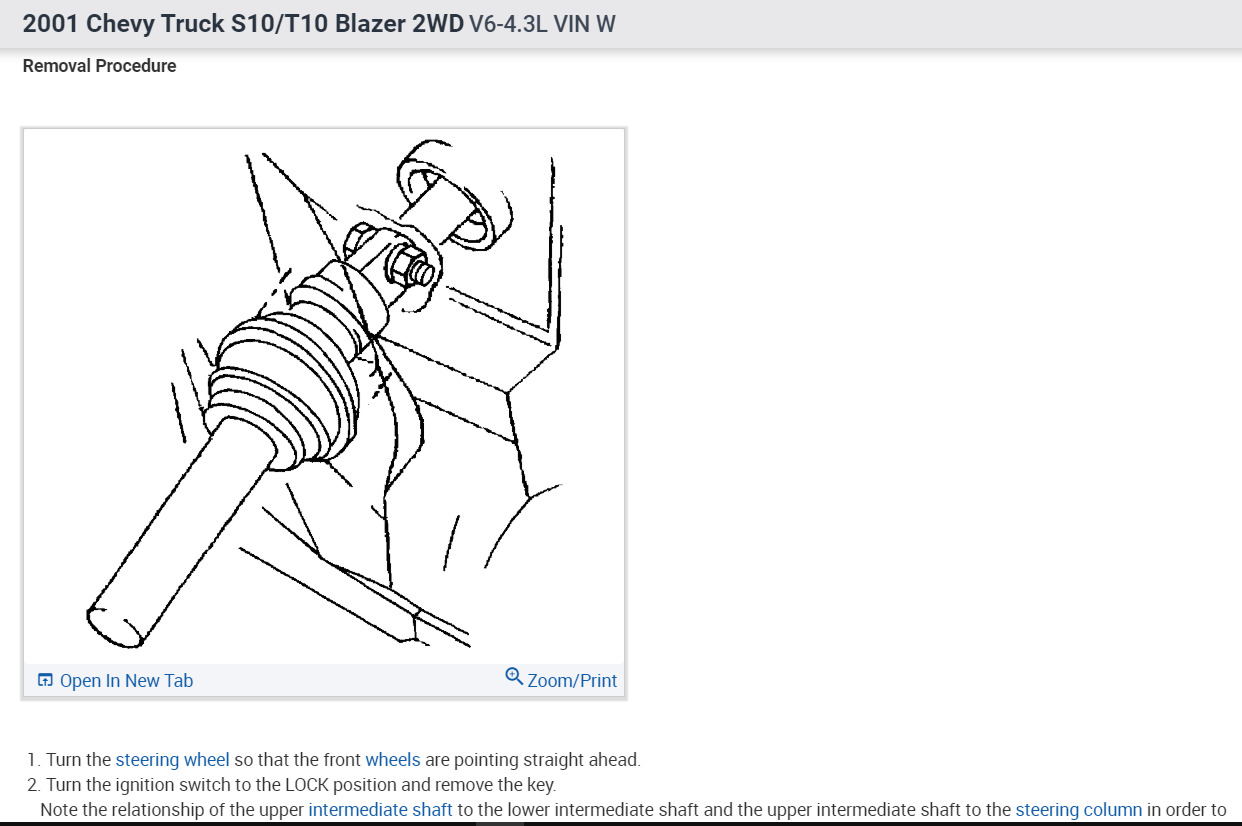

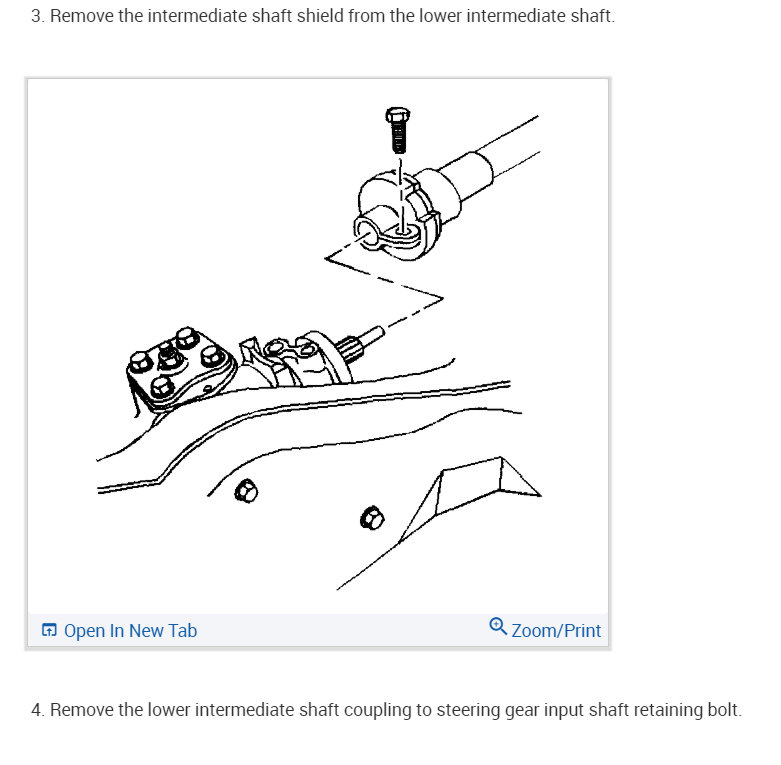

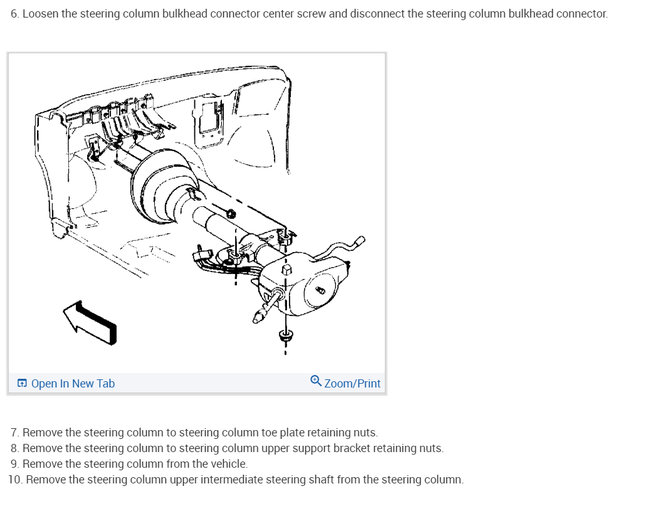

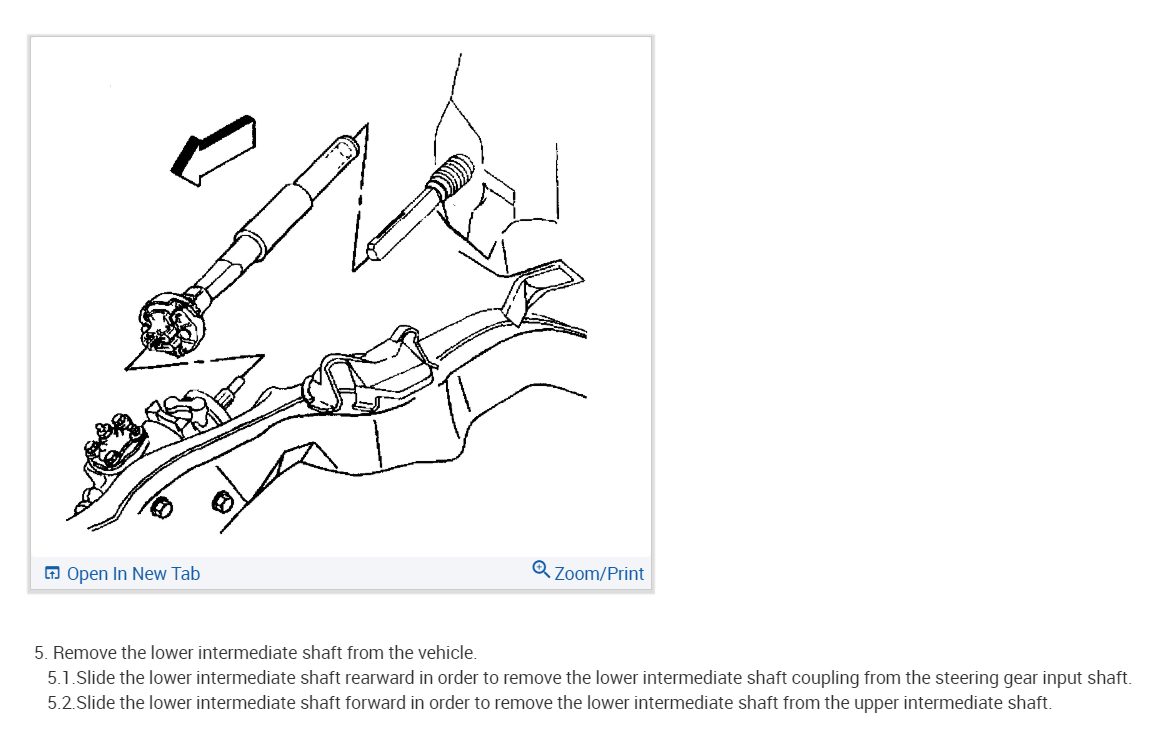

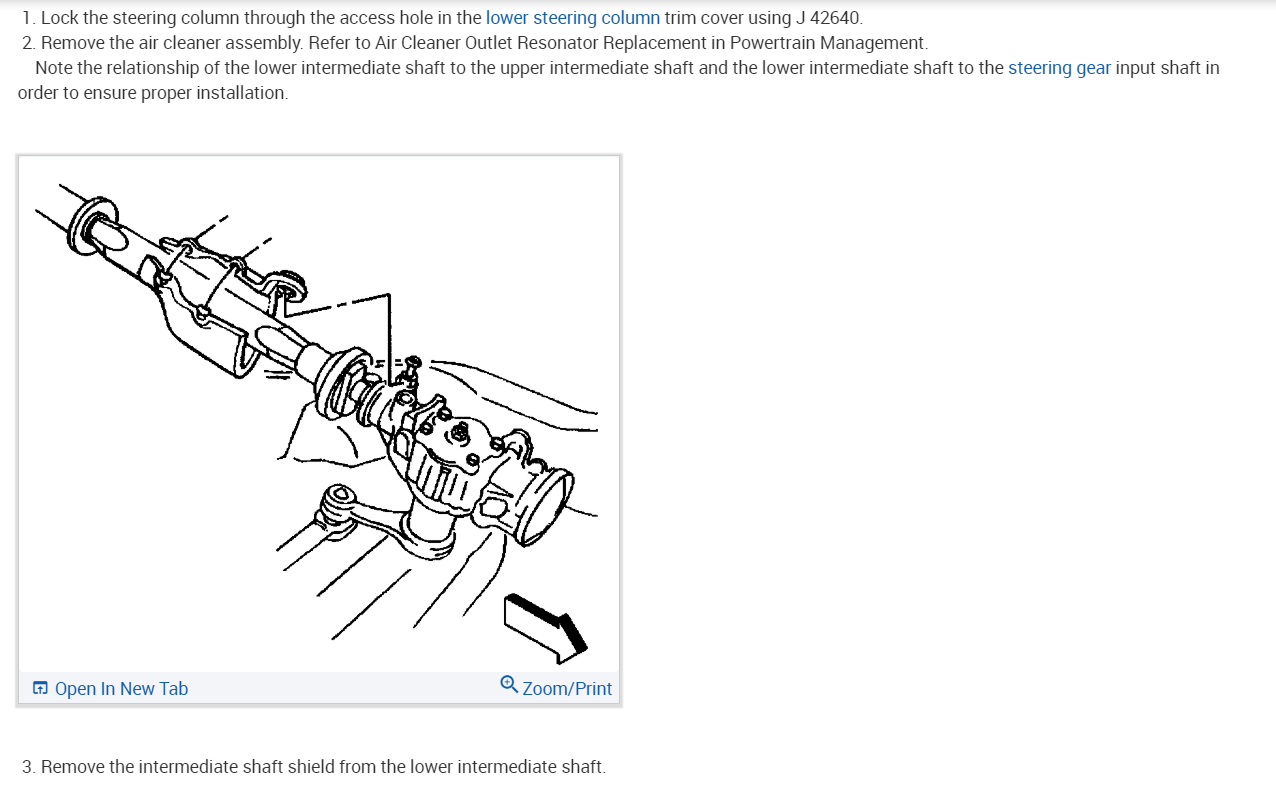

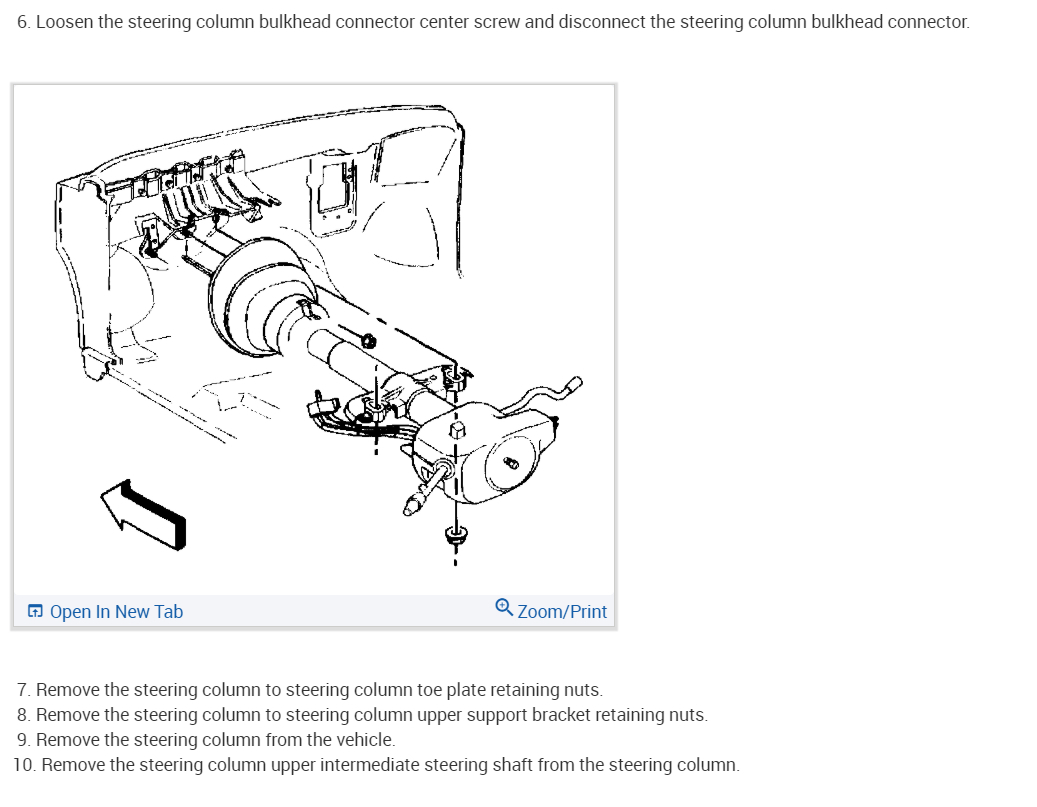

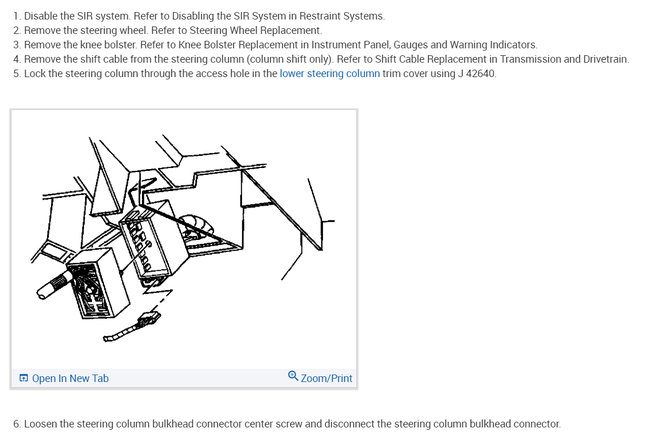

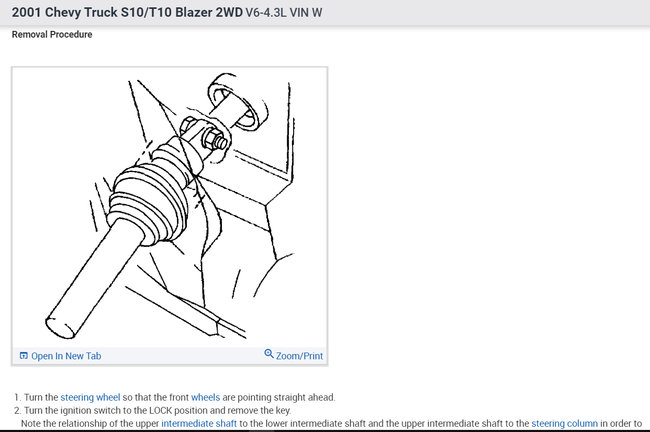

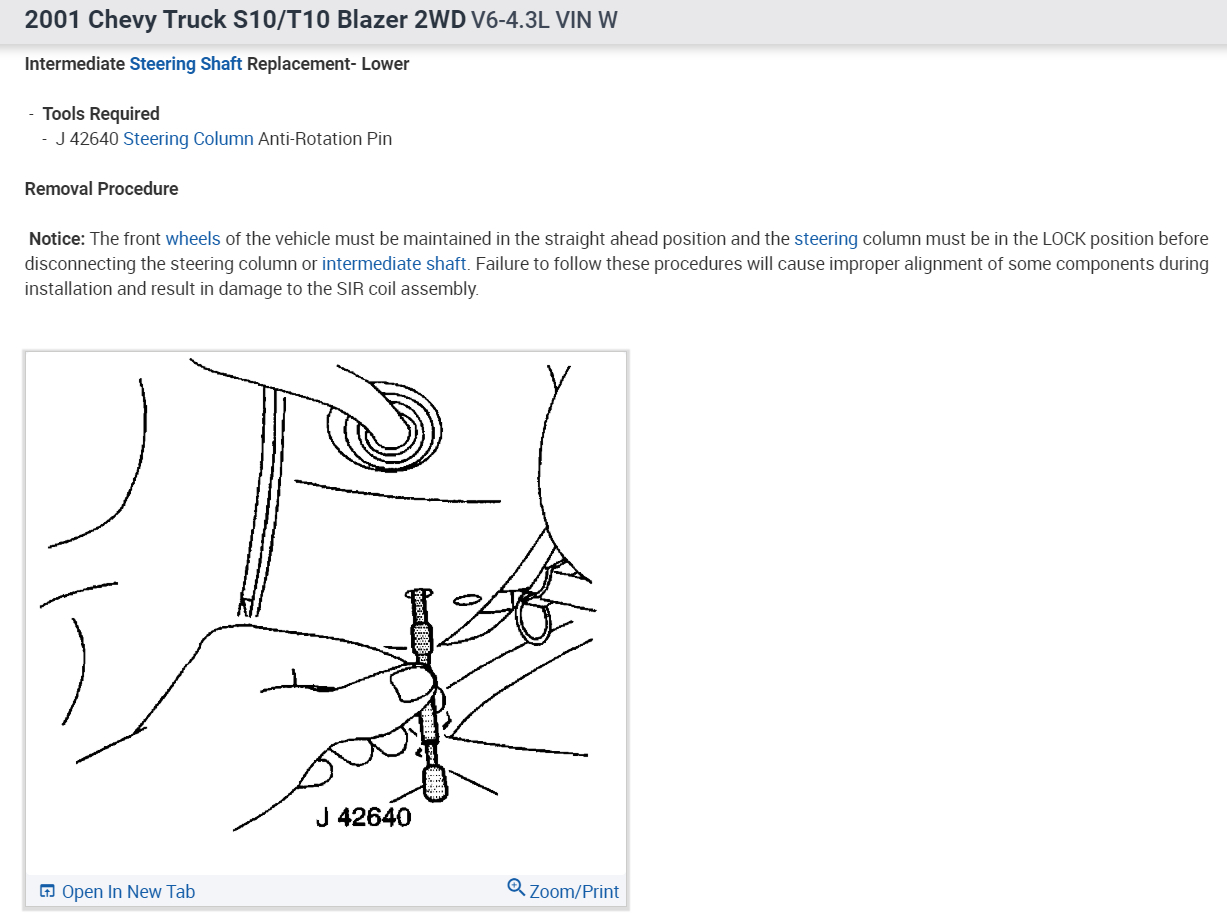

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
