camshaft sensor

2001 CHEVROLET BLAZER
204,000 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
How does a person check a cam position sensor ?
Apr 8, 2011 at 1:11 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
I'd start by checking ref voltage--ground--signal at the sensor. Any applicable trouble codes? What makes you think there is a problem with cam sensor?
Apr 8, 2011 at 1:33 PM
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
When I changed the distributor I forgot to plug in the electrical plug going to the distributor.My car started with a miss. Then remembering I did'nt plug it,I then pluged it in,and ther ws no difference in the way it ran,it still missed.
Apr 8, 2011 at 1:43 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

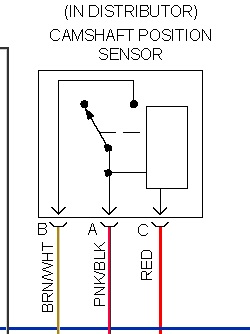

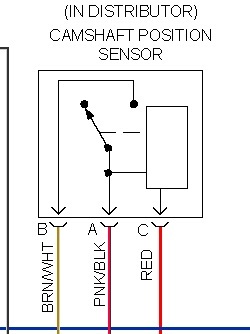

Terminal c should be 12 volts, key on.
Terminal A is ground.
Terminal B is signal, dc pulse, on and off.
Apr 8, 2011 at 1:54 PM
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
Thanks JDL I will check volts and let you know the results.By the way I got codes P0200 & P341. Thanks again
Apr 8, 2011 at 2:05 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
The po341 is for your cam sensor. Was the vehicle missing, before you worked on the distributor?

The po200, says the computer didn't see correct voltage on command line. The command line is a ground. You could have an injector issue?
Apr 8, 2011 at 2:28 PM
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
Yes JDL that is what I was told,hopefully I dont have to go there.Thank again,you have been most helpfull.
Apr 8, 2011 at 2:51 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Let us know what you find.
Apr 8, 2011 at 3:58 PM
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
JDL Problem solved,changed the cam sensor,don't have the miss I had before,have a slight miss but thats due to a plug wire or vacuum hose. Thank you all again so much.joyfixer
Apr 8, 2011 at 4:02 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Glad you got it going your way.
Apr 8, 2011 at 4:14 PM
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Are you getting a P1345 code at all.
Apr 8, 2011 at 4:16 PM
Avatar
JOYFIXER
  • MEMBER
  • 9 POSTS
No I'am not getting any codes now.
Apr 8, 2011 at 4:18 PM
