serpentine belt

2001 CADILLAC SEVILLE
Avatar
TTOWN77
  • MEMBER
  • 1 POST
diagram of a serpentine belt on a 2001 cadillac seville
Feb 3, 2011 at 7:23 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Hello,

Here is the serpentine belt routing diagrams and a guide to walk you through the steps.

https://www.2carpros.com/articles/replace-serpentine-belt

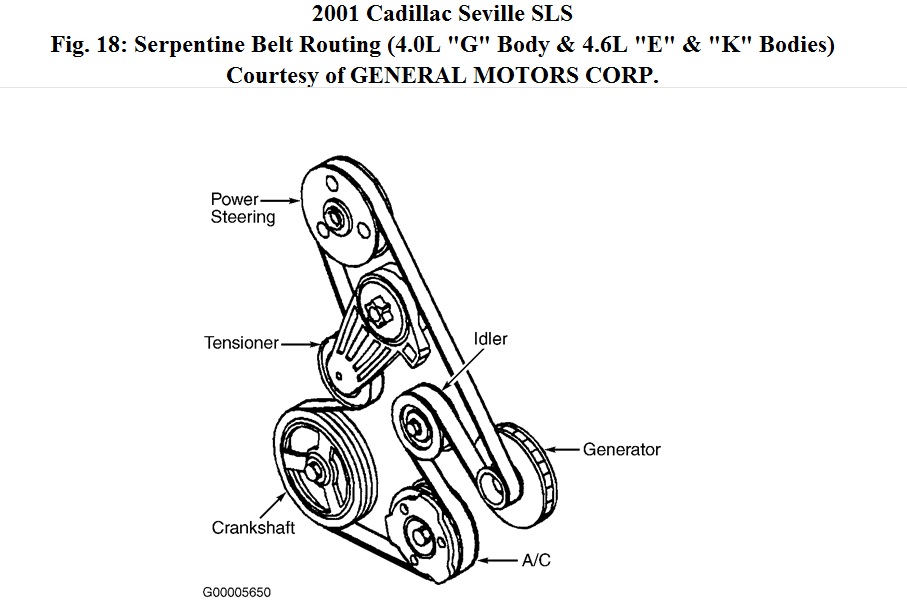

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)

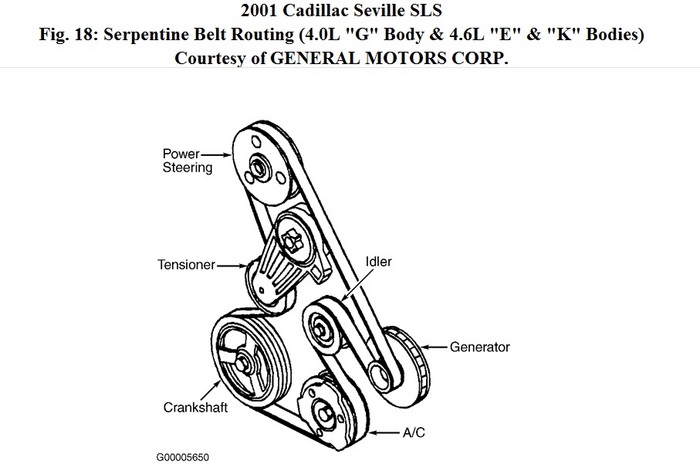

Attached Media
Feb 3, 2011 at 8:42 PM
