Serpentine belt schematic needed

2001 BUICK LESABRE
200,000 MILES
Avatar
DEBBIEREE
  • MEMBER
  • 1 POST
Our serpentine belt came off completely. I'm looking for the schematic to replace the new belt.
Dec 23, 2019 at 5:56 AM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

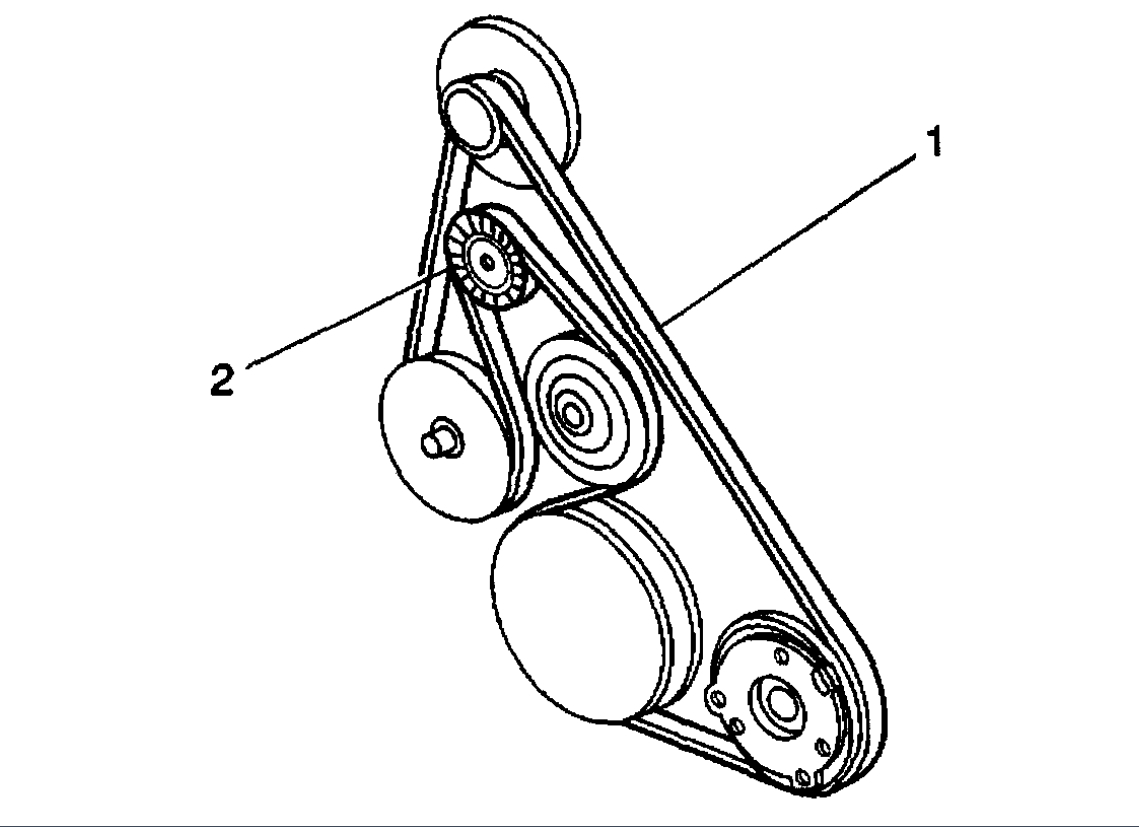

I have included the information that you have requested, the drive belt routing diagram, in the diagrams down below for you. I hope that this helps out.

Thanks,
Alex
2CarPros
Image (Click to enlarge)
Attached Media
Dec 23, 2019 at 1:06 PM
