how to replace the alternator
2001 ACURA MDX
186 MILES
YEE LEE
MEMBER
1 POST
FOLLOW
how do you remove the alternator and how is it going to come out?
Nov 5, 2011 at 6:04 PM
Advertisement
STRAILER
CERTIFIED EXPERT
53,854 POSTS
You should start by disconnecting the battery here is a guide to help you with that.
https://www.2carpros.com/articles/how-to-replace-a-car-battery

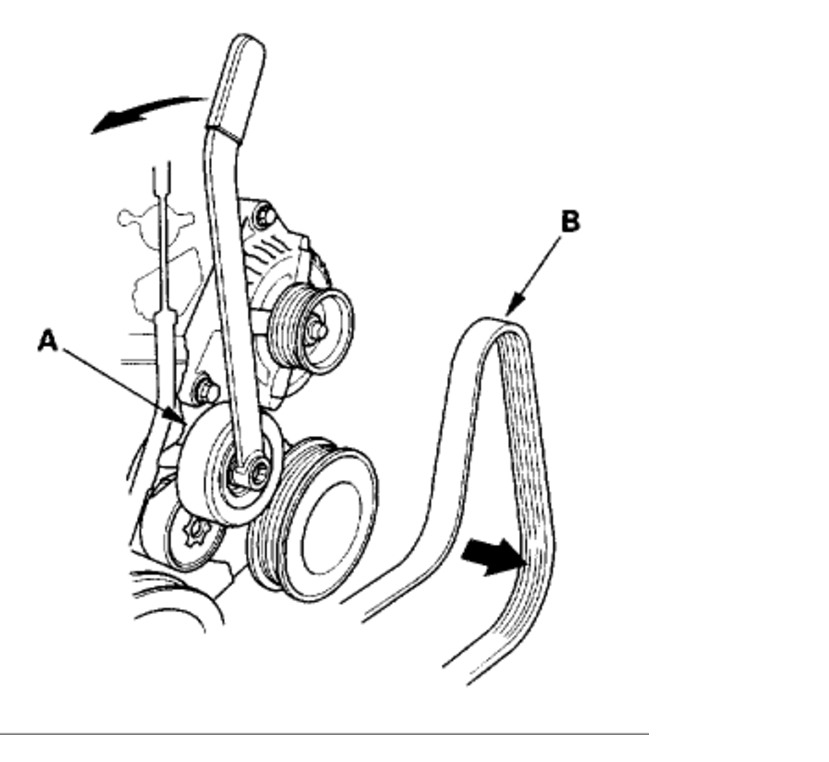

Next you will need to remove the serpentine belt. Here is a video for that
https://youtu.be/Q_Wn9c0Bvh0

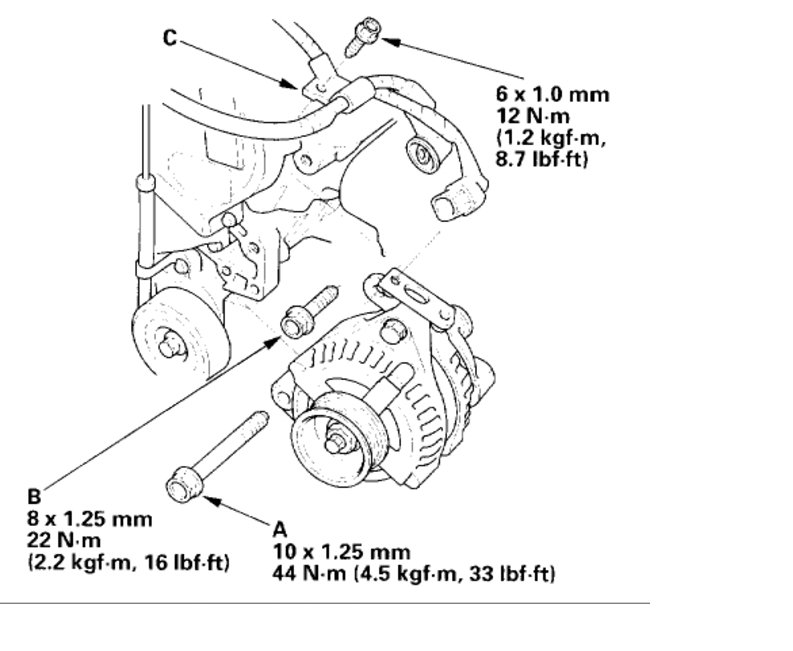

This guide will give you idea on what to expect when doing the job I have includes diagram fro you car (below). You might need to loosen the radiator to get the alternator out
https://www.2carpros.com/articles/how-to-replace-an-alternator
Once you are done you should check the unit to make sure you installed it correctly.
https://www.2carpros.com/articles/how-to-check-a-car-alternator
Here is a Denso unit from Amazon for $177.00
https://www.amazon.com/gp/product/B000IYA6G6/ref=as_li_qf_sp_asin_il_tl?ie=UTF8&tag=2carprcom-20&camp=1789&creative=9325&linkCode=as2&creativeASIN=B000IYA6G6&linkId=0079c83e20e9c005213aec312fc8c1dc
Please let us know what happens so it will help others.
Cheers, Ken
Images (Click to enlarge)
Sep 12, 2017 at 4:15 PM
HARWINDERSDEOL
MEMBER
1 POST
i need to know howto remove old alternator and install a new one
Sep 12, 2017 at 4:17 PM (Merged)
Advertisement
HMAC300
CERTIFIED EXPERT
48,601 POSTS

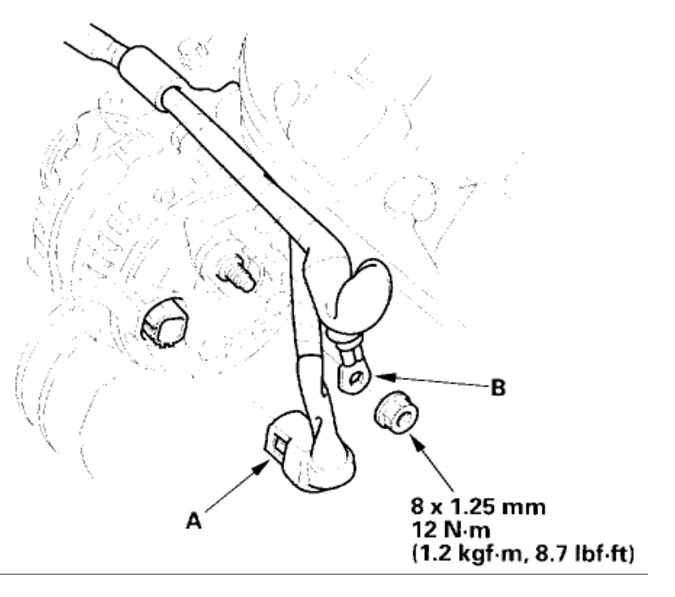

get radio anti theft code first then disconnect battery negative cable. disconnect cables form alternator then follow instructions in pic.
Image (Click to enlarge)
Sep 12, 2017 at 4:17 PM (Merged)
