2000 Volkswagen Passat Unsure

2000 VOLKSWAGEN PASSAT
176,000 MILES • 2.8L • V6 • FWD • AUTOMATIC
Avatar
VINCE007
  • MEMBER
  • 5 POSTS
Car was overheating decided to change thermostat, timing belt had to be removed, I was being careless and didn't mark where they should have stayed and now I'm sure its out of time and need to know where it should be and how to put it back in time so I do not bend a valve.
Aug 15, 2015 at 7:06 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS

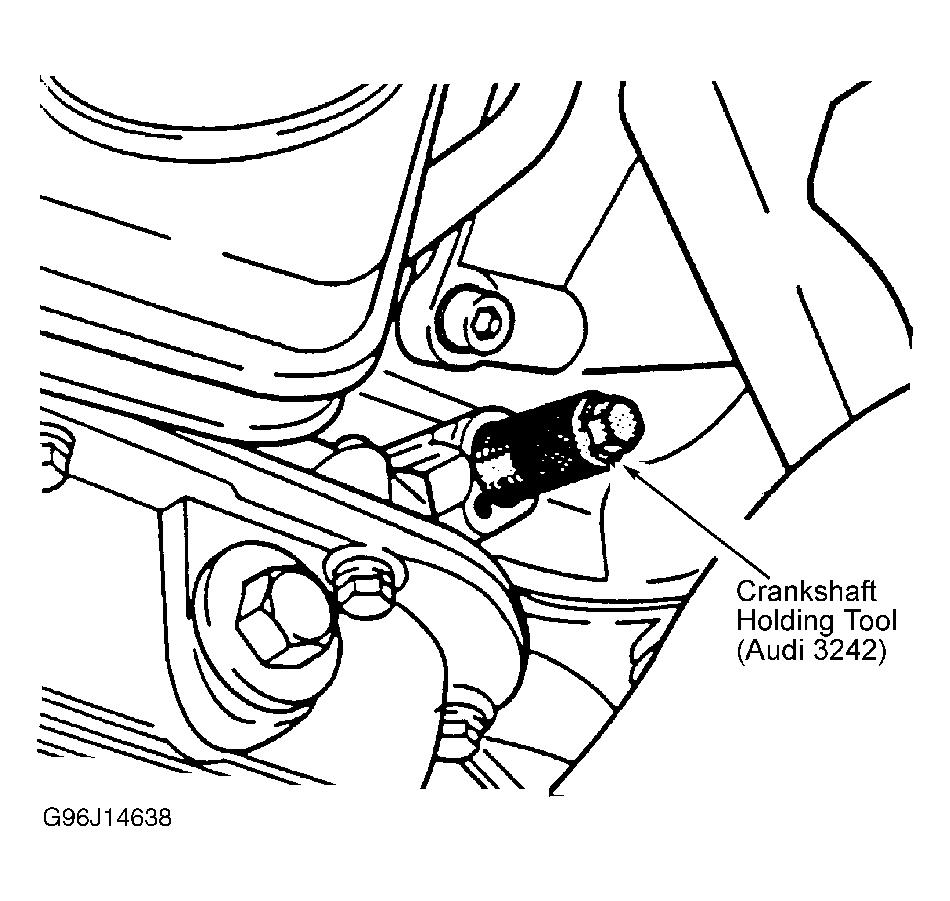

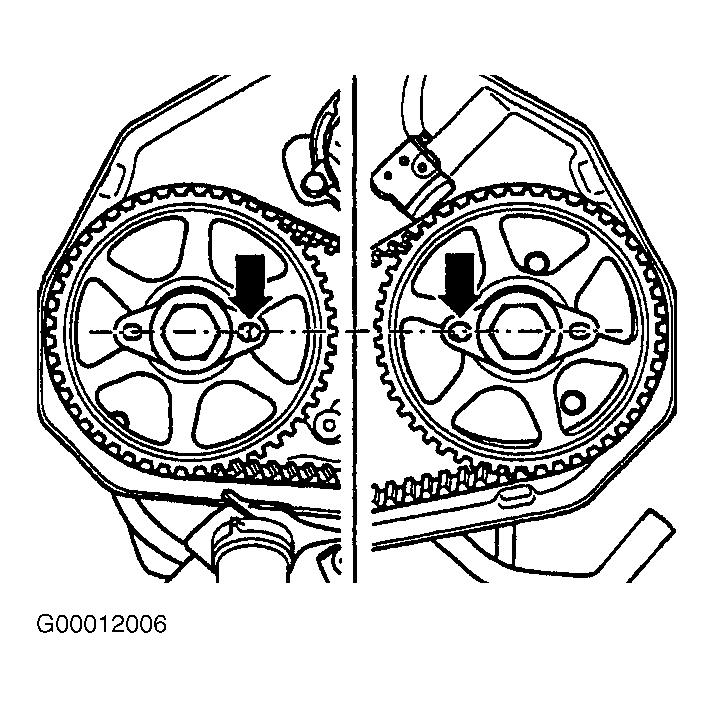

I have attached the cam marks and the cam holding tool pic. The crank will need to be at TDC. Please keep in mind, this process requires special tooling.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 15, 2015 at 7:49 PM
Avatar
VINCE007
  • MEMBER
  • 5 POSTS
So they can only go one way? Is there any kind of cycle ? Man I feel really bad for not being able to donate!
Aug 15, 2015 at 8:27 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
As long as you follow the diagram, you should be fine. Don't worry about the donation. I just hope I can help.
Aug 15, 2015 at 8:30 PM
Avatar
VINCE007
  • MEMBER
  • 5 POSTS
At tdc piston 3 should be up? It says in book. Also if the left camshaft was turned more than the right does that affect anything ?
Aug 16, 2015 at 9:32 AM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Cams must be aligned. They make a tool that holds the cams in place.
Aug 17, 2015 at 1:23 PM
Avatar
VINCE007
  • MEMBER
  • 5 POSTS
Not sure if it's off a tooth or not but it runs good.
Aug 17, 2015 at 1:39 PM
Avatar
VINCE007
  • MEMBER
  • 5 POSTS
Thank you for all your help ! Have a blessed day
Aug 17, 2015 at 1:40 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
If it runs good, you nailed it. Even one tooth off will make it run poorly, if at all. Good job.

Let me know if you need help in the future.

Joe
Aug 17, 2015 at 6:59 PM
Avatar
MELISSA CURRIE
  • MEMBER
  • 1 POST
Joe, I sent his comment about the cams not being aligned. If camshaft holder tool isn't installed and cam timing gets thrown off, what should I do to put or get the can timing back to top dead center?
Oct 10, 2022 at 12:43 PM
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

Is the vehicle a 2000 Passat V6? Also, let me know exactly what you need to do. If you plan to time the engine, you will the alignment tool.

Let me know.

Joe
Oct 10, 2022 at 7:12 PM
