2000 VOLKSWAGEN JETTA
60,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
The fuel cap cover will not open, when the driver-side door switch is pulled
Feb 16, 2013 at 8:26 PM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
The cable may be broken or stretched, they may be an emergency release in the boot behind the trim adjacent to the filler, have a look there.
Feb 16, 2013 at 10:54 PM
Avatar
EXOVCDS
  • CERTIFIED EXPERT
  • 1,883 POSTS
Remove the trim as suggested above and find the motor (see attached image).

You can pull the rod towards the motor to open the filler flap.

Disconnect the electrical connector from the motor and attach a test light across the harness plug... have someone pull the fuel door switch
and see if the light "lights up". If yes, replace the motor. If no... check a wiring diagram for fuse # and wiring.

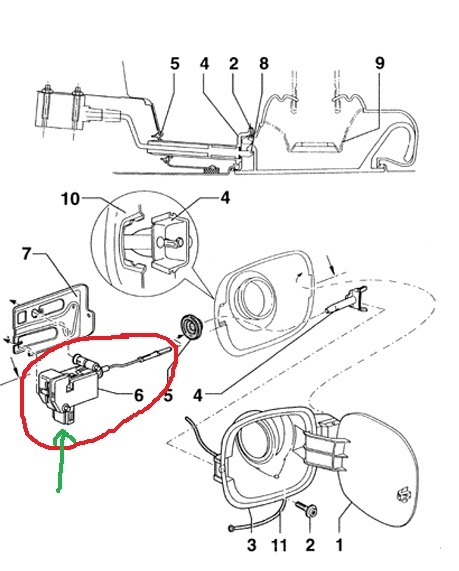

Red circle is the motor, green arrow is the harness plug connection point.

Thomas
Feb 17, 2013 at 7:46 PM
