2000 VOLKSWAGEN BEETLE
113,182 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
My car was working fine last night. All of a sudden today though my heat, air, wipers, and turn signals quit working. It is not a fuse and my headlights and emergency flashers still work fine. Does any one have a clue what this may be? Please help!
Dec 9, 2012 at 10:42 PM
Advertisement
Avatar
EXOVCDS
  • CERTIFIED EXPERT
  • 1,883 POSTS
Check that the Load Reduction Relay is turning ON (has power from fuse S176 on one of the relay pin sockets and that one of the pins
has power when the Key is turned to ON (power from the Ignition switch).

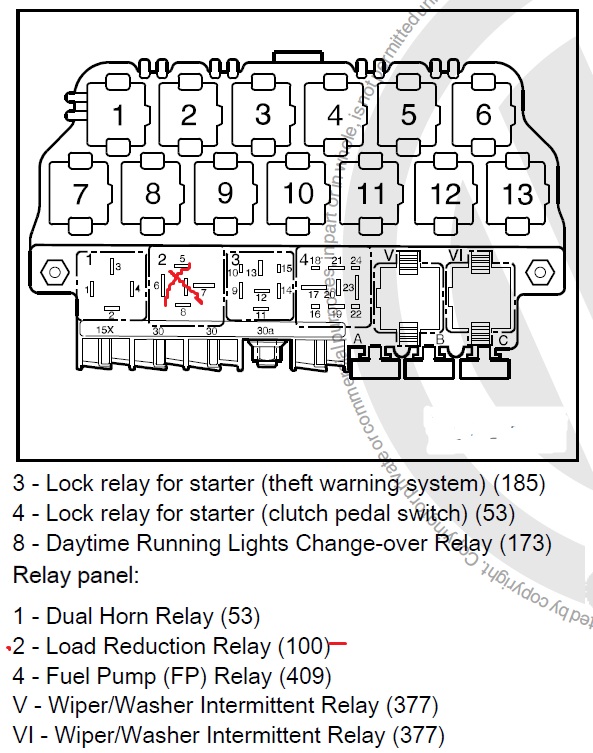

Located on the relay panel to the left of the foot pedals (see attached image).

Check fuse S176 (110A) in the fuse box on top of the battery (fusible metal link)

Thomas
Image (Click to enlarge)
Attached Media
Dec 10, 2012 at 12:17 AM
