2000 Toyota Tundra rear end axle bearing replacement 2 wheel drive v8 without ABS

2000 TOYOTA TUNDRA
285,000 MILES • 4.7L • V8 • 2WD
Avatar
CHROME HEADERS
  • MEMBER
  • 1 POST
I changed the rear hub bearing in my 2000 Toyota Tundra sr5 v8 when I put the axle back in. The wheel locks up while the other one spins do I need to change drive shaft are there other bearings in the differential. Or change the whole rear do you replace the drive axle ? what did I do wrong ?
Feb 10, 2015 at 7:05 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
torque of axle mounting is 50 ft lbs. measure backlash of axle shold be no larger than .028" pull brake drum off and see if axle will turn while in neutral not park. see if anything is binding it and not the brake. see pics.

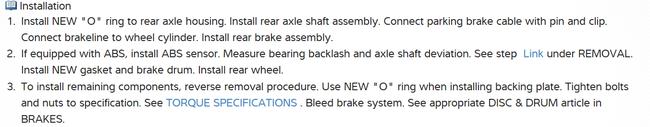

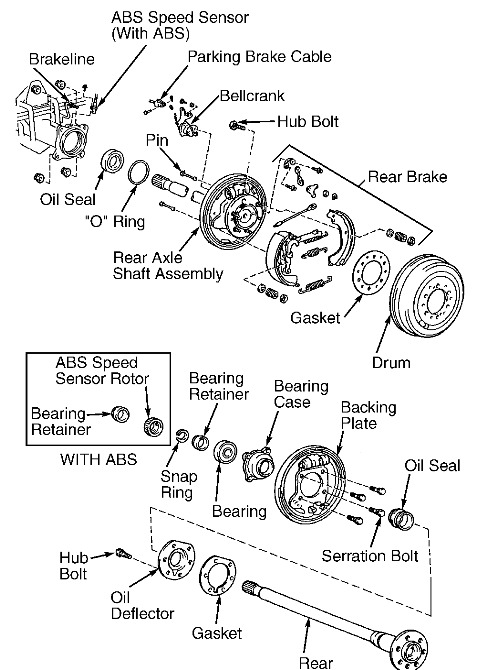

Images (Click to enlarge)
Attached Media
Attached Media
Feb 11, 2015 at 5:57 AM
