Wiring speedometer sensor plug?

2000 TOYOTA LANDCRUISER
6 CYL • 4WD
Avatar
FENSHOME
  • MEMBER
  • 4 POSTS
I have a Toyota HZJ97R 4X4 landcrusier and the 3 wires have been pulled out of the speed sensor at the gearbox. Can anyone tell me how the 3 wires should go back in the plug, ie. the colours and position in plug.

Kim
Sep 29, 2014 at 11:13 PM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS

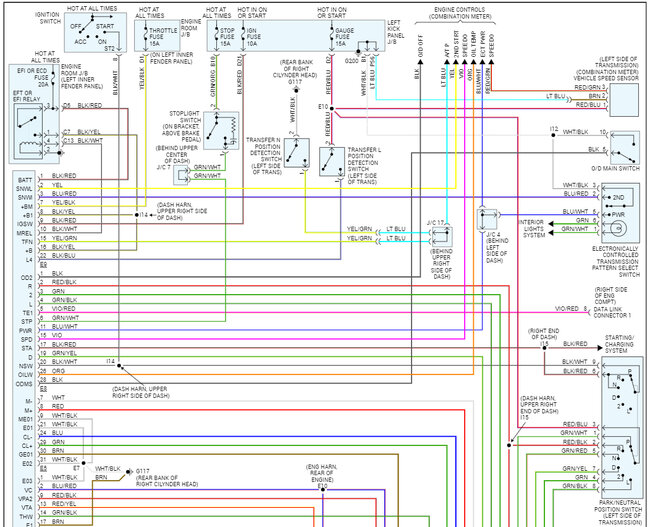

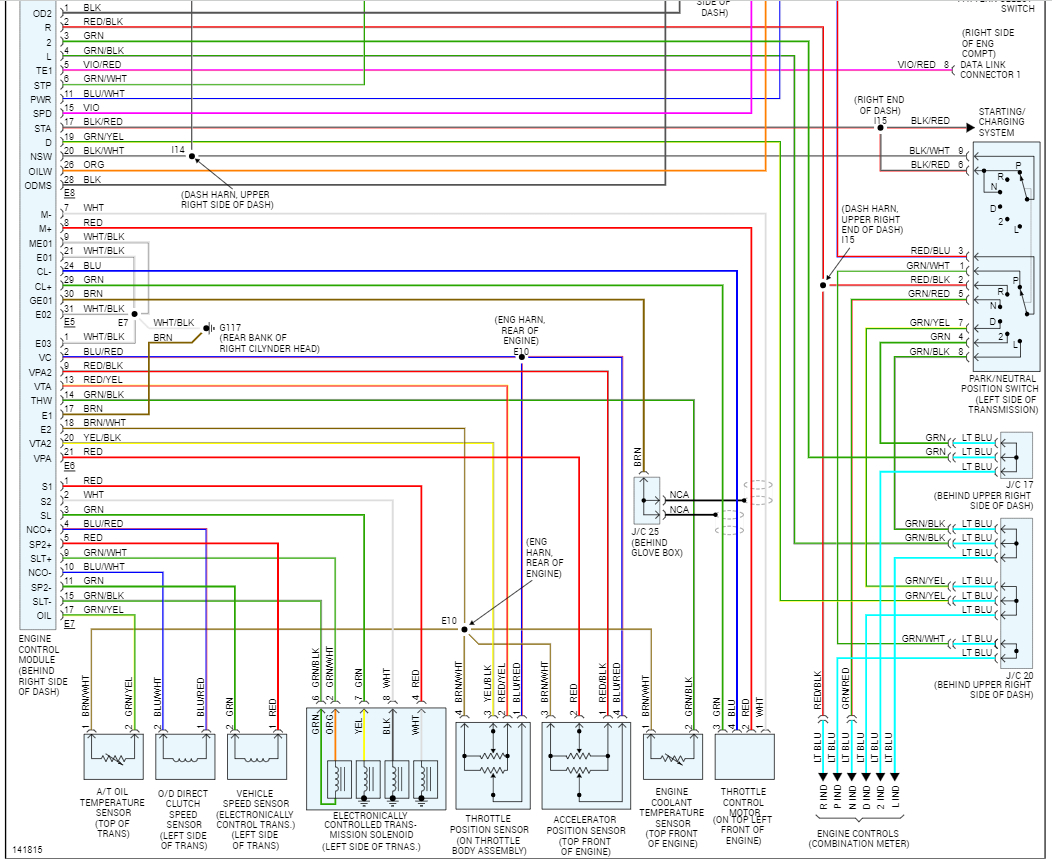

See pic, the pins should be numbered 1,2,3 and I have included the entire wiring diagrams for the transmission and the VSS. Also, this guide can help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Let us know how it goes
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Sep 30, 2014 at 4:22 AM
Avatar
FENSHOME
  • MEMBER
  • 4 POSTS
Hi

I greatly appreciate your assistance.

Kim
Sep 30, 2014 at 2:16 PM
Advertisement
Avatar
FENSHOME
  • MEMBER
  • 4 POSTS
Hi

Have a further question. In relation to the plug which is pin 1,2, & 3 as not numbered when I look at it? I have no bits of the cable left on the plug side as it was pulled completely out.
Sep 30, 2014 at 7:31 PM
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS

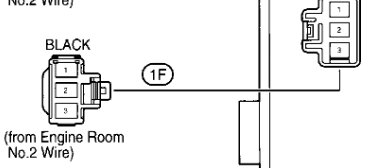

The plugs are normally numbered as if looking front on and left to right. Here is a diagram I found which should be the VSS connector. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Oct 1, 2014 at 2:25 PM
Avatar
FENSHOME
  • MEMBER
  • 4 POSTS
thanks again

Kim
Oct 1, 2014 at 2:51 PM
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
OK let me know if you still have any problems.
