2000 Toyota Echo OMD2

2000 TOYOTA ECHO
Avatar
ADBELLO
  • MEMBER
  • 2 POSTS
My vehicle's connector seems not to have any Juice. My OMD2 says "not connected" when I plug in my scanner. Scanner works fine in my other vehicle. Thanks!
Mar 13, 2014 at 2:04 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
check efi fuse underhood then check for apoor connection at aldl or pcm.
Mar 13, 2014 at 2:59 PM
Avatar
ADBELLO
  • MEMBER
  • 2 POSTS
Which one is efi fuse under hood? I don't have a vehicle owner's manual. Thanks for help!
Mar 14, 2014 at 6:23 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

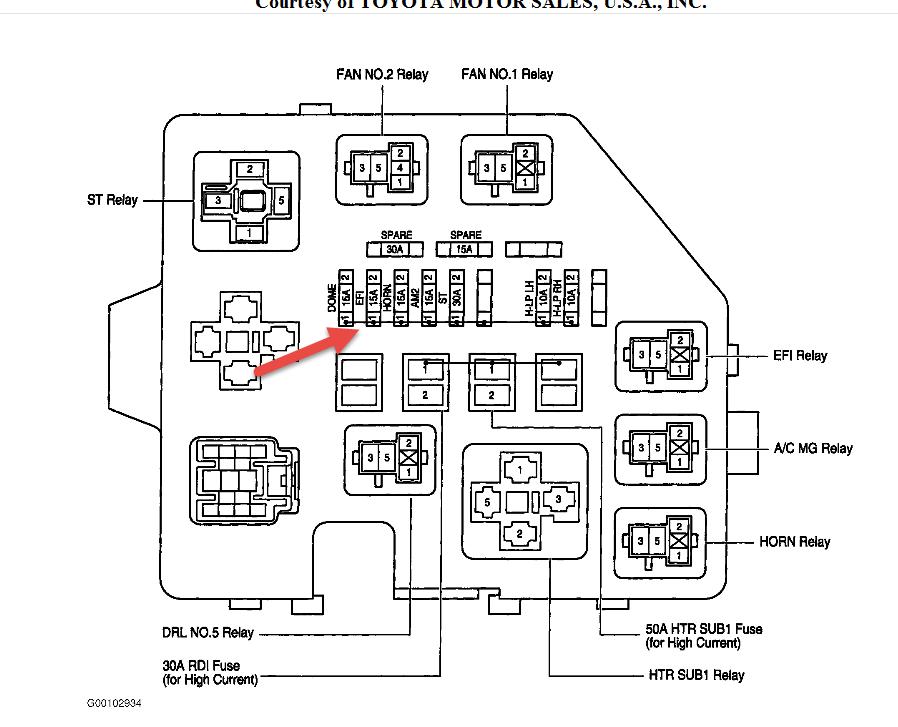

it should be marked on the cover. see pic
Image (Click to enlarge)
Attached Media
Mar 15, 2014 at 6:19 AM
