2000 Saturn Other possible problem with solenoid/starter

2000 SATURN
246,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC
Avatar
DALLAS69
  • MEMBER
  • 5 POSTS
I had bought a new starter and put it in. I connected the ignition wire to the solenoid, once I did connect the wire and then connect the battery, the car is trying to start by itself without any key in the ignition or start position. Any ideas to the problem?
Aug 21, 2015 at 5:59 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Thats a good one do you have a test light or multi meter to do some testing?we atleast need that to do some testing.
Aug 21, 2015 at 7:33 PM
Avatar
DALLAS69
  • MEMBER
  • 5 POSTS
No I do not. Can I just tap the solenoid to see if they shows anything. I have been told to check starter relay switch or it may involve the ignition wiring but not sure where to really look to test.
Aug 21, 2015 at 7:38 PM
Advertisement
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS
Saturntech9 IS TALKING ABOUT TWO INEXPENSIVE ITEMS THAT WILL AID YOU AND HIM IN DIAGNOSING AND PROBABLY FIXING THE ISSUE

A SHOP MIGHT DIG INTO YOUR POCKET BOOK IF YOU FINALLY SEND IT THERE

IF THE PRESENT CONDITION WAS NOT HAPPENING BEFORE, I REALLY DOUBT THAT THE WIRING IN THE VEHICLE "CHANGED ITSELF" TO MAKE IT CONSTANTLY CRANK

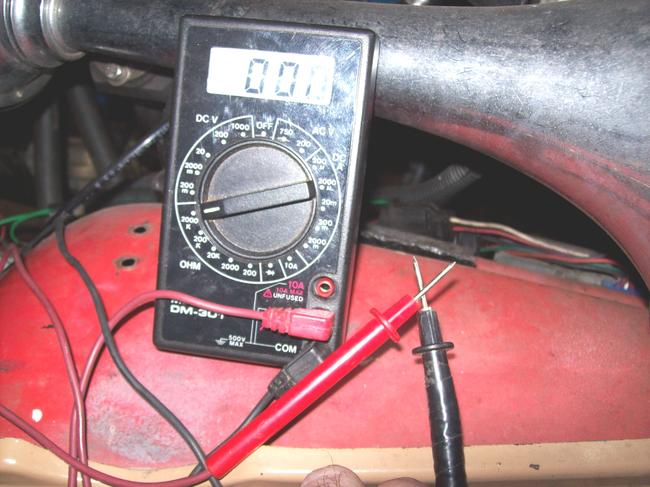

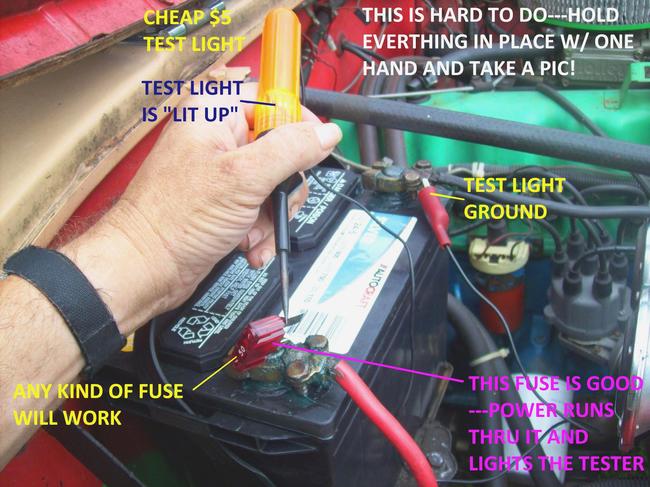

BELOW ARE PICS OF A VOLTMETER AND A TEST LIGHT. A TEENY TINY INVESTMENT THAT MIGHT GET THINGS SQUARED AWAY.

AT "HARBOR FREIGHT" EITHER ONE CAN BE OBTAINED FOR $6 OR LESS

AT AN AUTO PARTS STORE $5 - $20 FOR EITHER

Saturntech9 CAN EXPLAIN HOW TO USE THEM IF YOU ARE UNFAMILIAR IN THEIR USE, GUESSING AND THROWING PARTS AT IT IS USUALLY WASTED $$$ AND LOTS OF FRUSTRATION!

GOOD LUCK!

THE MEDIC

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Aug 21, 2015 at 9:16 PM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
With the battery unhooked disconnect the small wire to the starter tape the end of the small wire up.Now hook the battery up what happened?
Aug 21, 2015 at 9:43 PM
Avatar
DALLAS69
  • MEMBER
  • 5 POSTS
clicking
Aug 22, 2015 at 7:26 AM
Avatar
DALLAS69
  • MEMBER
  • 5 POSTS
now it starts but the starter is still engaged and smoke is rising
Aug 22, 2015 at 7:57 AM
Avatar
DALLAS69
  • MEMBER
  • 5 POSTS
What do I test?
Aug 22, 2015 at 8:16 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
It started with the small purple wire unhooked?
Aug 22, 2015 at 12:25 PM
