transmission cooler lines

2000 PONTIAC GRAND AM
160,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
AREZ
  • MEMBER
  • 3 POSTS
hey there is a leak in my transmission cooler lines in a Pontiac Grand am 2000. I do not know what to do... i did a transmission fluid pan drop and changed the filter and fluid... that was on Feb 21 and now on March 3 it has leaked 1.5 qt... do you think a stop leak bottle would help? or do you have a better option? or options?
Mar 4, 2011 at 6:23 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Is the leak in the actual line or at the fitting into the transmission?

mark (mhpautos)
Mar 4, 2011 at 8:50 AM
Avatar
AREZ
  • MEMBER
  • 3 POSTS

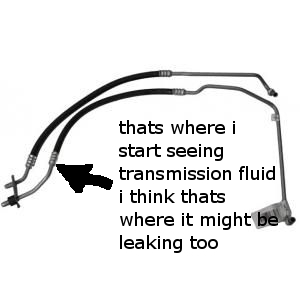

I dont really know but that picture might help
Image (Click to enlarge)
Attached Media
Mar 4, 2011 at 9:32 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
This fitting can not be repaired, you will have to replace the entire pipe assembly.

mark (mhpautos)
Mar 4, 2011 at 9:37 AM
Avatar
AREZ
  • MEMBER
  • 3 POSTS

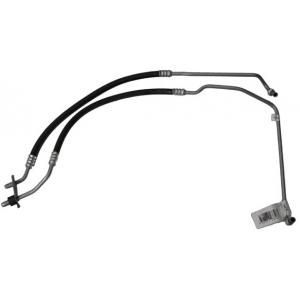

what part of these lines can be repaired?
Image (Click to enlarge)
Attached Media
Mar 4, 2011 at 9:42 AM
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Nothing can be repaired on this pipe, if that union is leaking there is nothing that can be done, you may be able to pick up a good used pipe from a wreckers yard if cost is a concern, unfortunately this is the way things are these days, all throw away.

mark (mhpautos)
Mar 4, 2011 at 1:22 PM
