2000 LINCOLN NAVIGATOR
119,000 MILES
Avatar
KPJENKINS
  • MEMBER
  • 2 POSTS
where is the front blower relay located
Nov 2, 2012 at 12:55 AM
Advertisement
Avatar
IMPALASS
  • CERTIFIED EXPERT
  • 3,112 POSTS

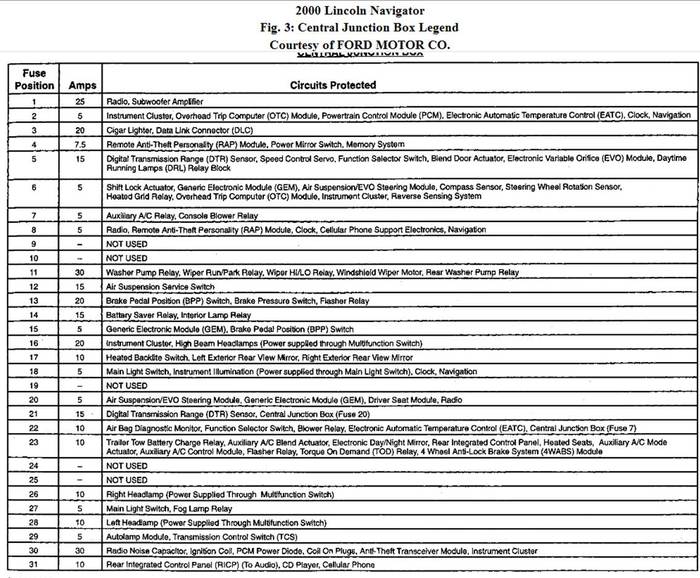

It is located behind center of dash, on blower/flasher relay block - looks like number 22
Images (Click to enlarge)
Attached Media
Attached Media
Nov 2, 2012 at 1:05 AM
Avatar
KPJENKINS
  • MEMBER
  • 2 POSTS
how do u get to the relay?
Nov 2, 2012 at 1:15 AM
Advertisement
Avatar
IMPALASS
  • CERTIFIED EXPERT
  • 3,112 POSTS

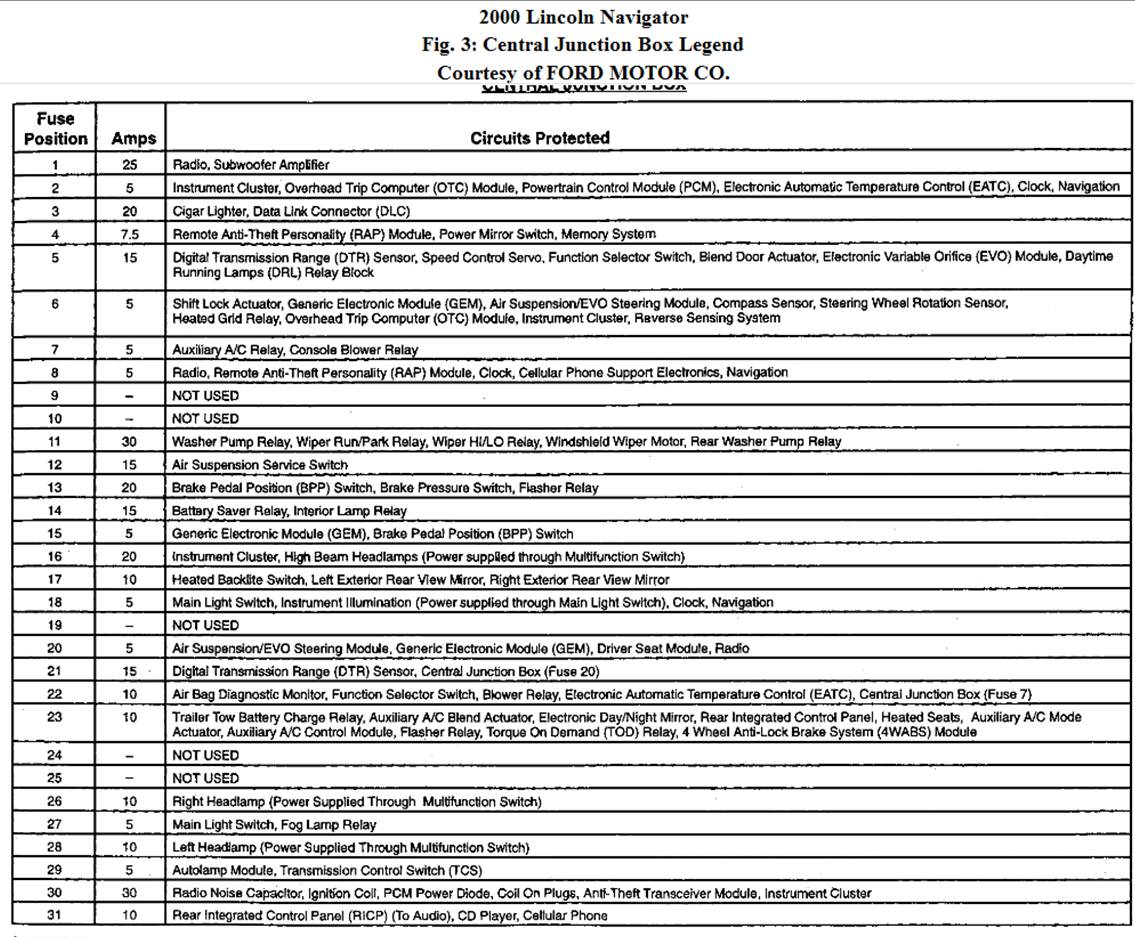

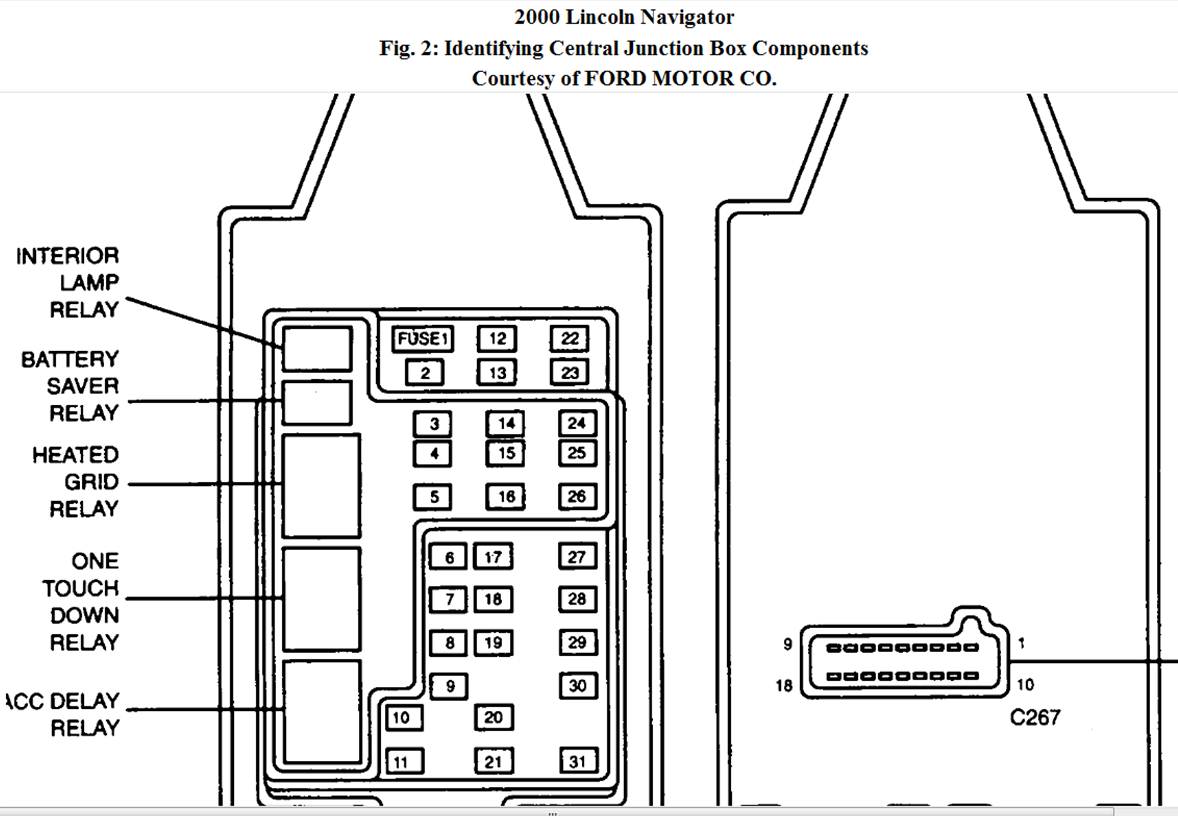

As you see by the attached pic it shows the center. However the electrical part of the manual also says it is located under the drivers side of instrument panel. You will have to look for removable panels on the side and bottom of the dash.
Image (Click to enlarge)
Attached Media
Nov 2, 2012 at 2:51 AM
