I cannot find anywhere that can tell me the color orientation of the factory female connector.its a 4 wire.
Apr 21, 2019 at 8:23 PM
o2 sensor bank 2 sensor 1 wires ripped from connector
2000 LEXUS GS 300
BILL RODRIGUEZ
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,
Here is a guide to help you check the wiring with the engine wiring diagrams below which include the oxygen sensors:
https://www.2carpros.com/articles/how-to-check-wiring

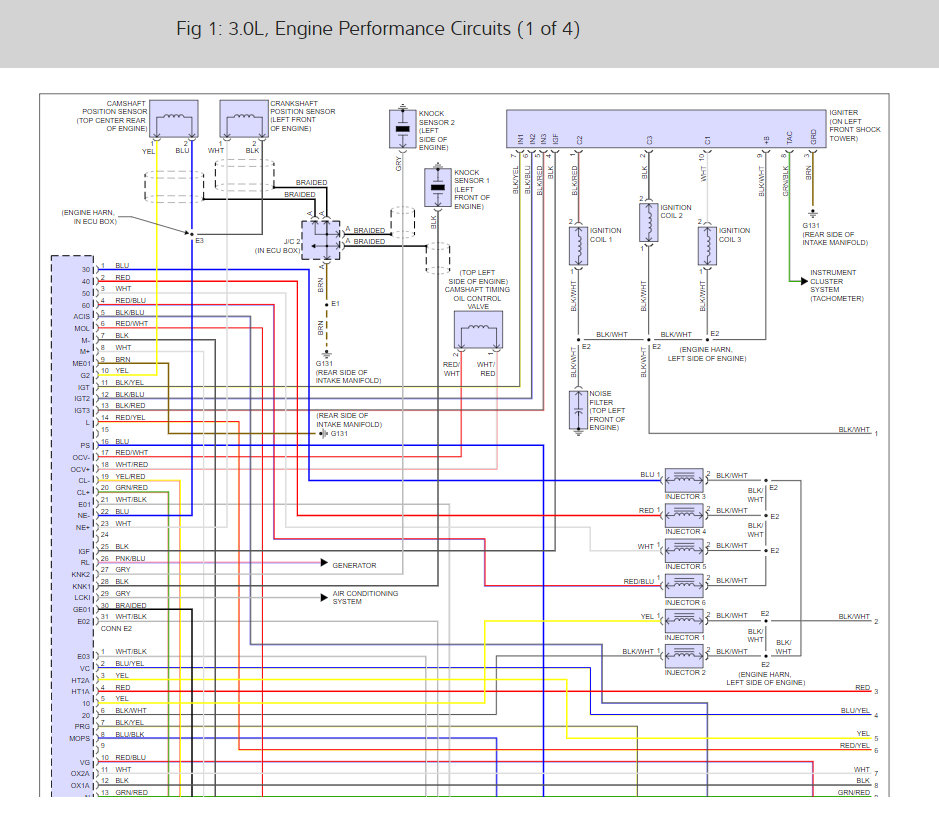

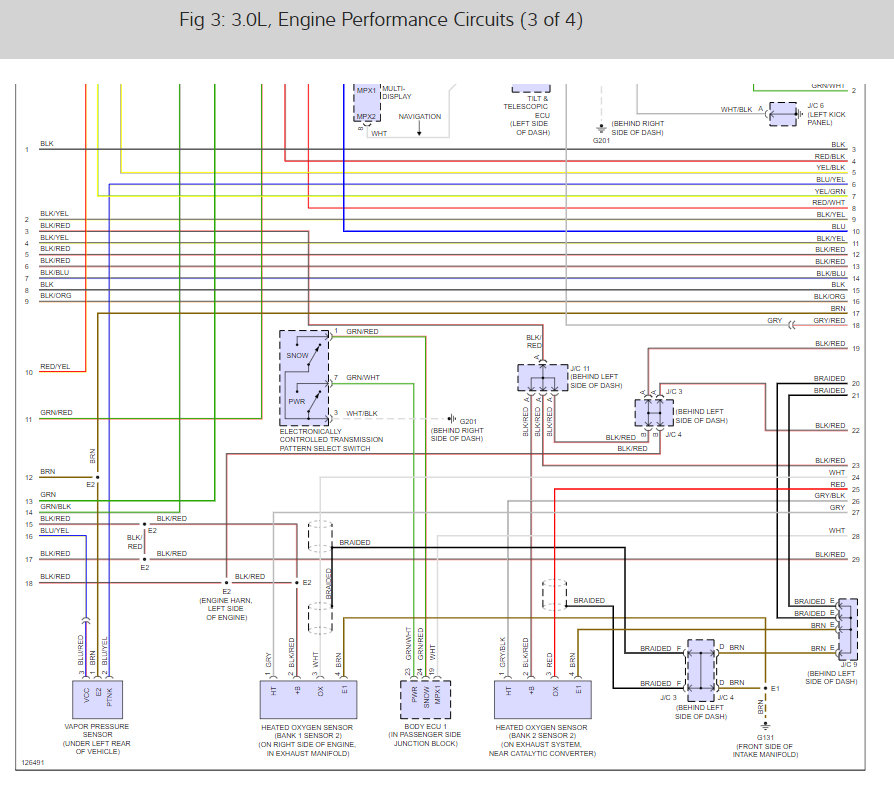

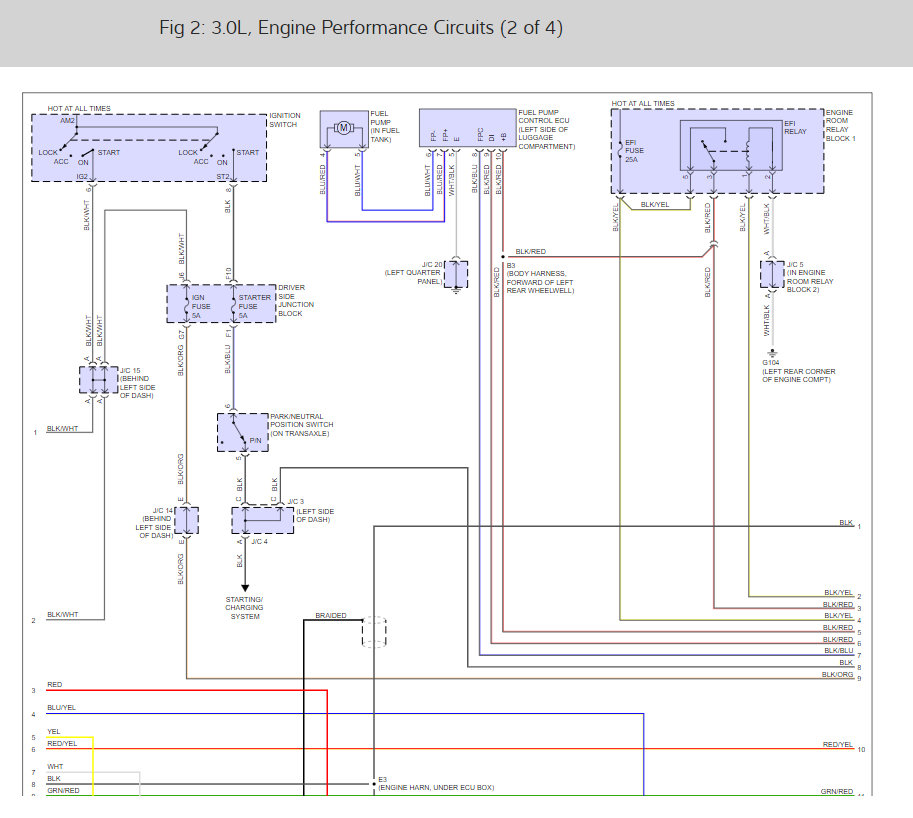

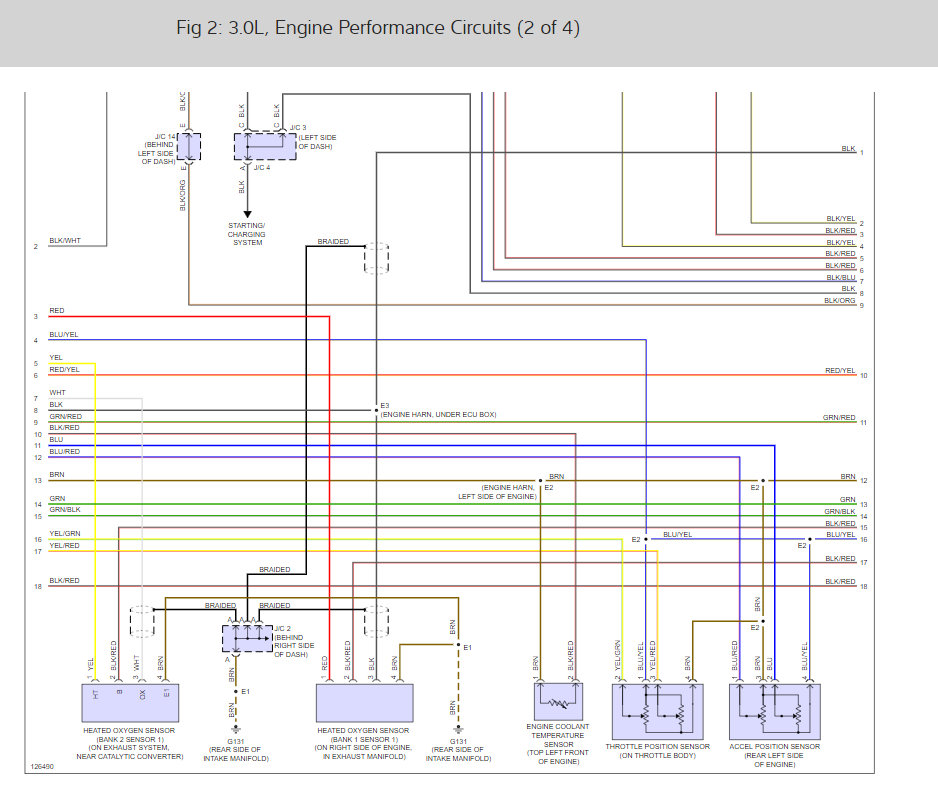

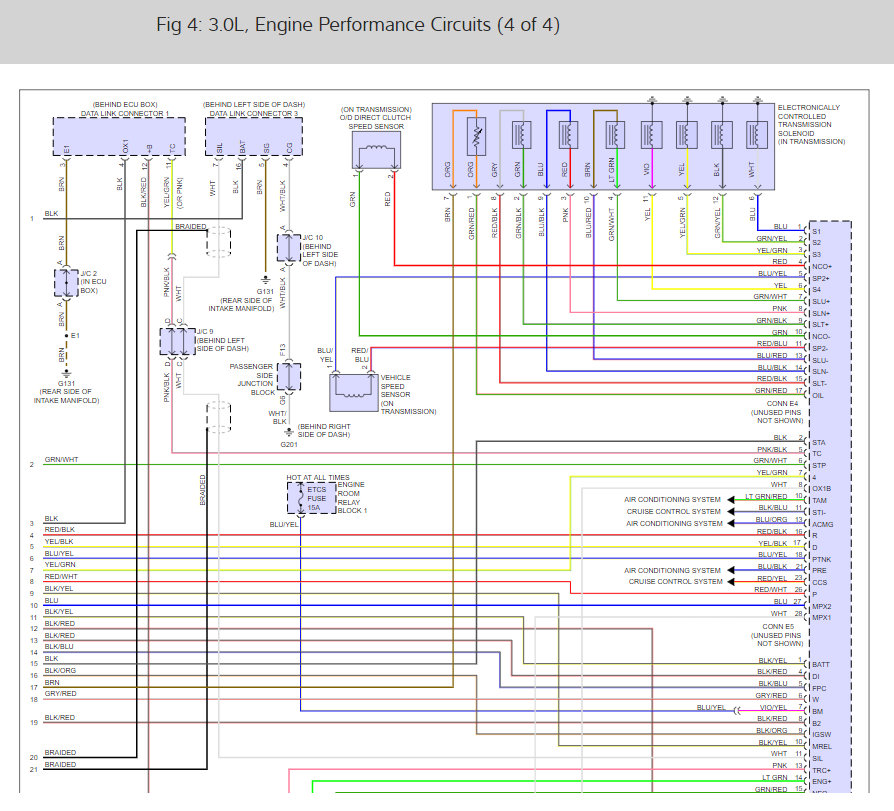

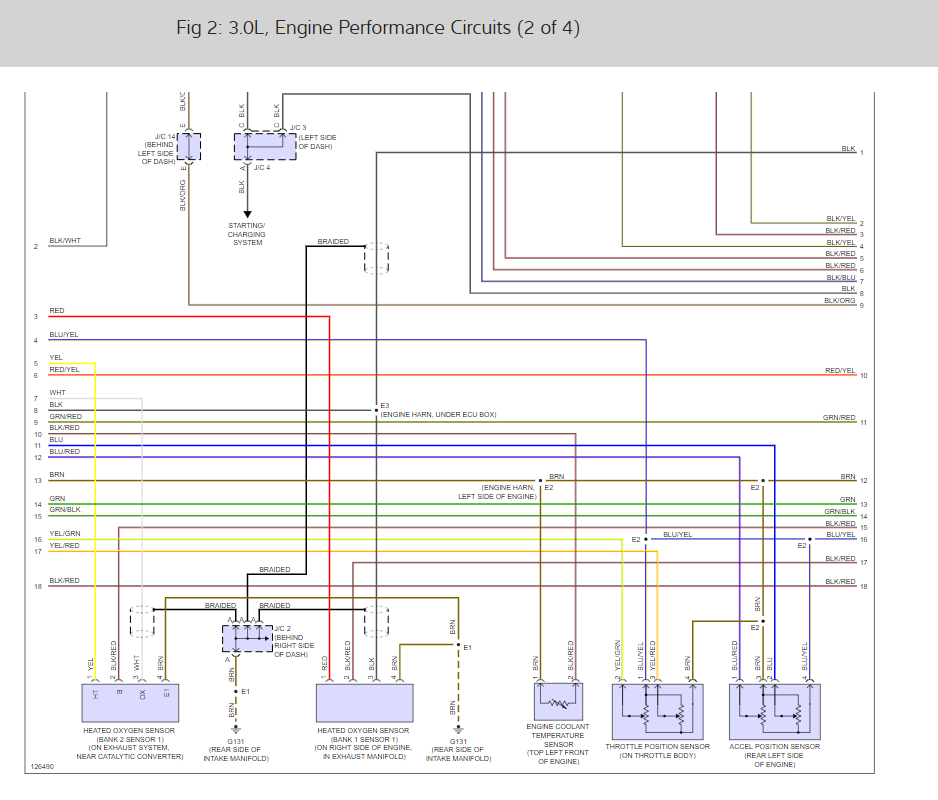

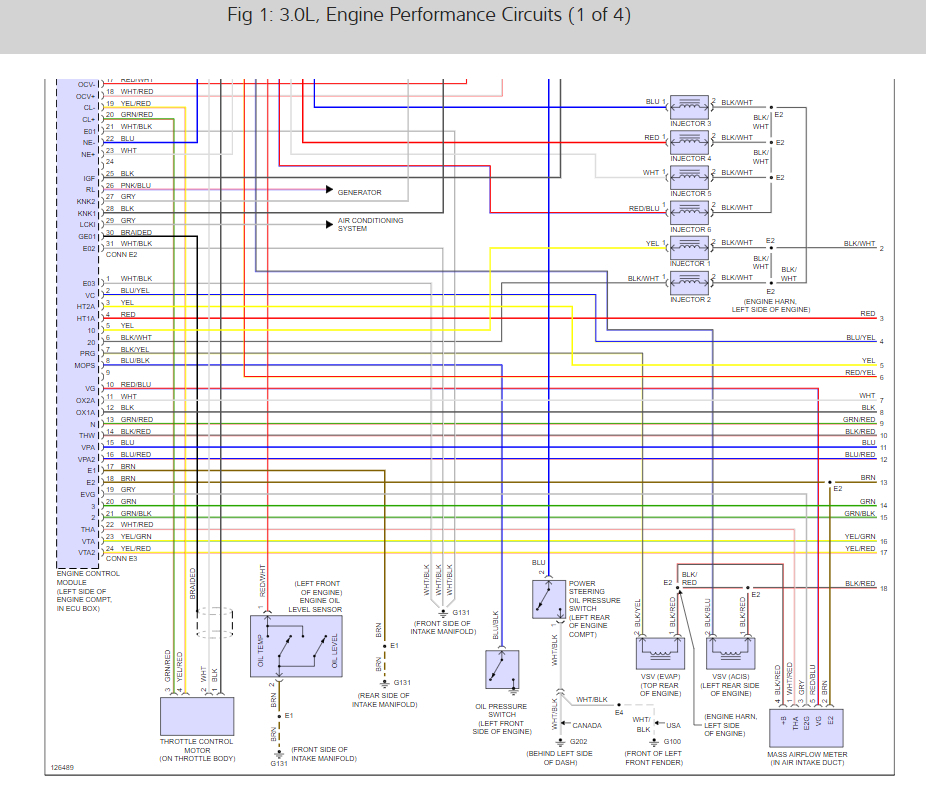

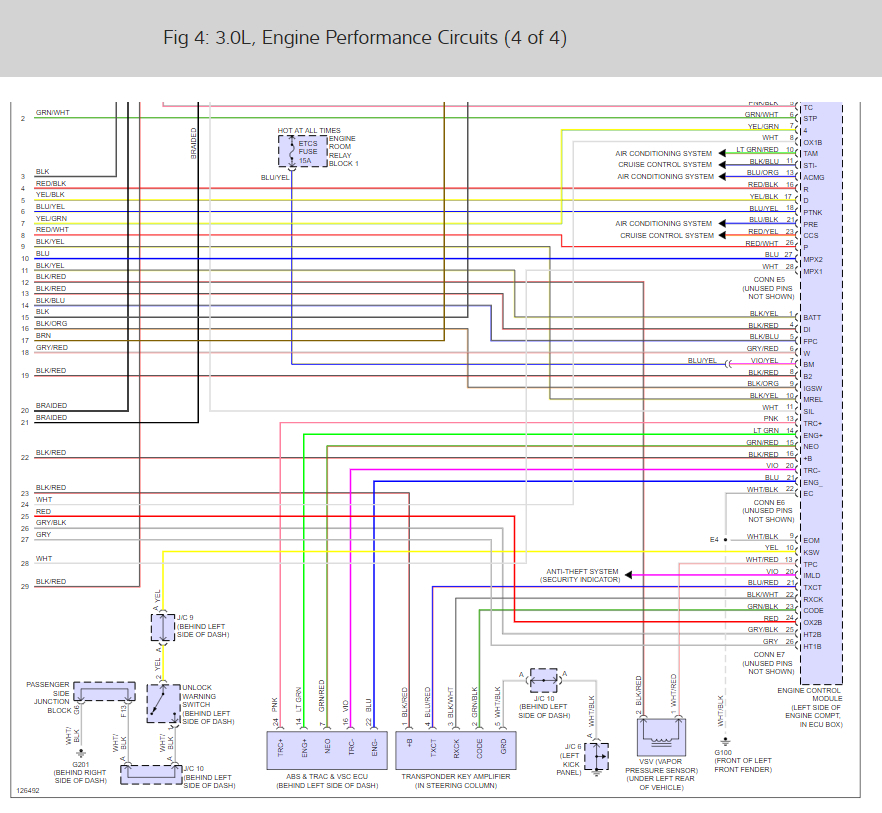

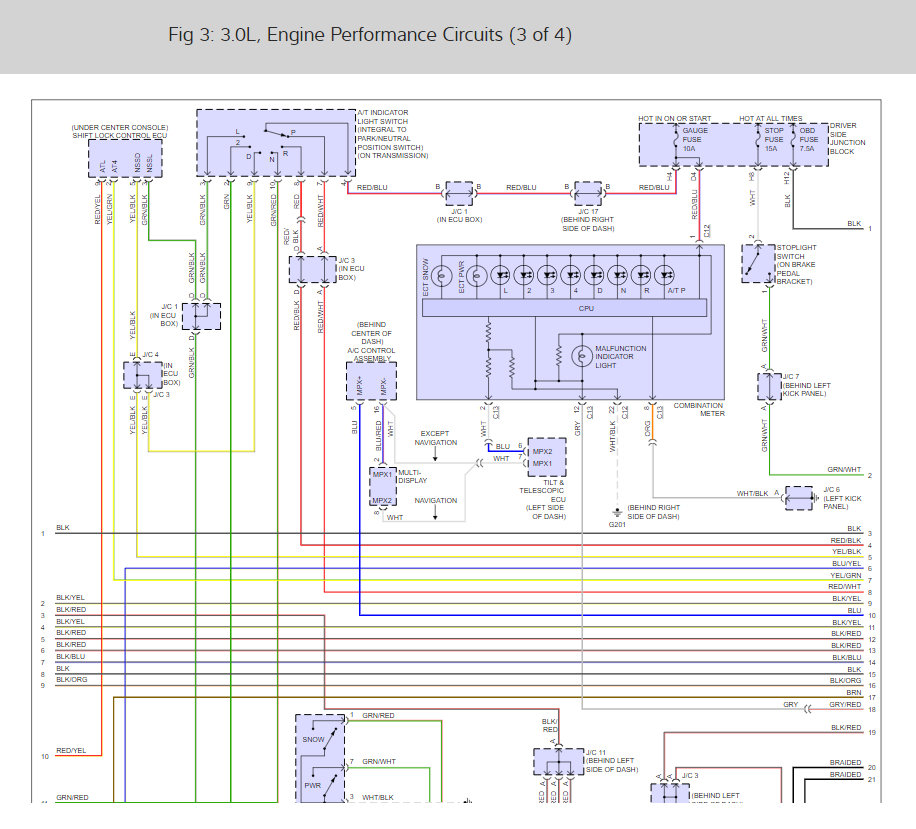

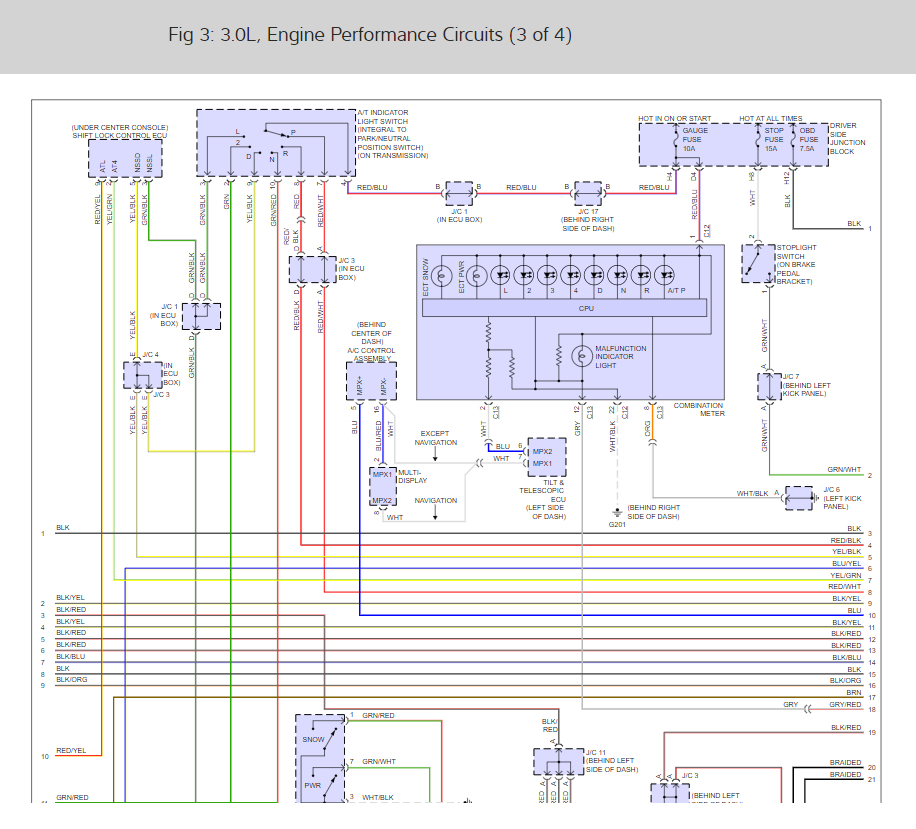

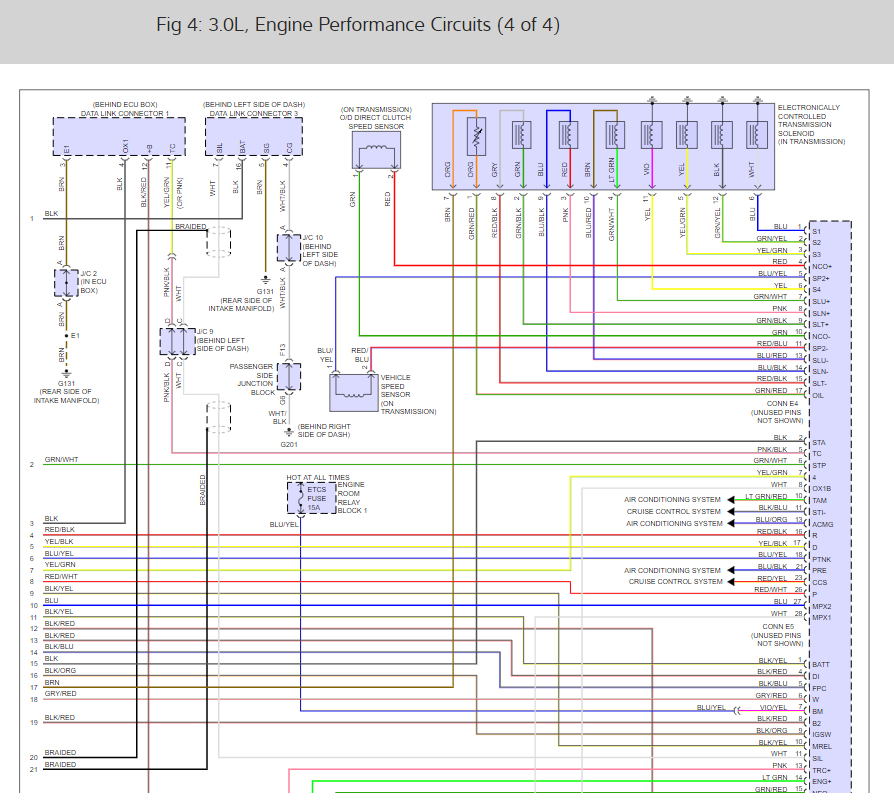

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Here is a guide to help you check the wiring with the engine wiring diagrams below which include the oxygen sensors:
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Apr 25, 2019 at 2:19 PM
