cam&crank sensor

Usually if the sensors are faulty, they would throw trouble codes.

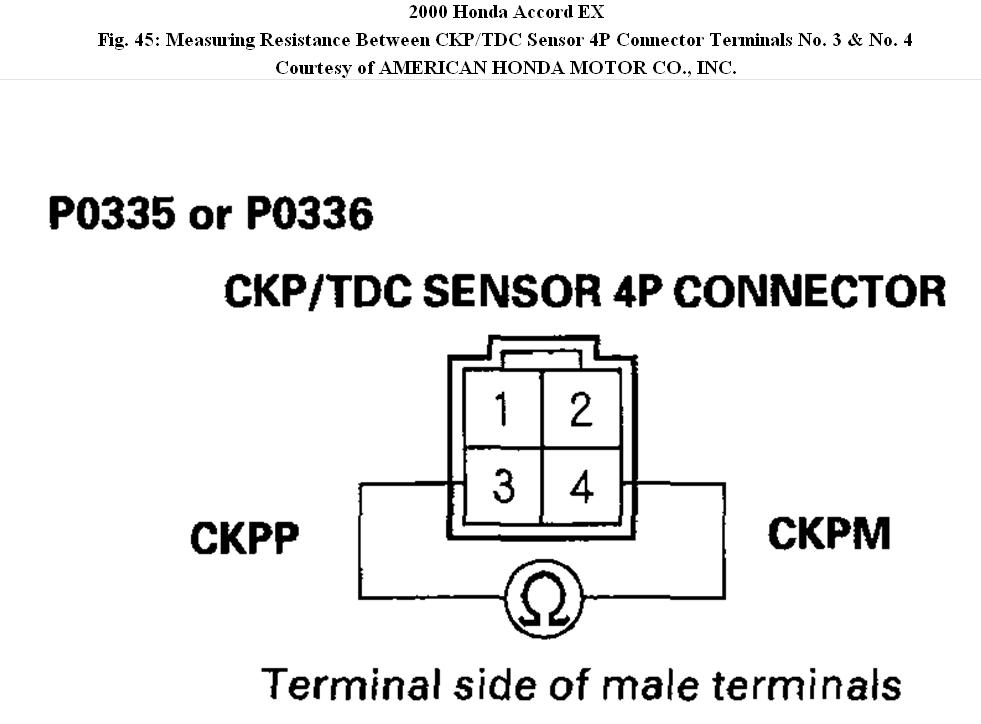

Resistance of the sensors are the basic test.
For CKP (crank position) sensor they be between 1850 to 2450 ohms.
For CYP (crank cylinder position) sensor they be between 1850 to 2450 ohms.

one more question need to no where to put negative or positive wires in sensor prones diagram would be very helpful an thanks for all info i have recieved really has helped

For resistance testing, it does not matter which is positive or negative.

ok thanks alot

You're welcome.

Just noted I made an error in the specifications.

For CKP (crank position) sensor they should be between 1850 to 2450 ohms.
For CYP (crank cylinder position) sensor they should be between 800 to 1500 ohms.

Sorry for that.

Have a nice day.

i got a reading of 2.14 on 20k on ohm meter what setting on on ohm meter should i use an what reading shoul look like on the ohm meter screen

i did the test but i dont know if i did it right the ohm meter read 2.14 on 20k.what iam asking what should i set it on an what should the reading on screen look like

What gradings do you have for the ohmmeter?
Is this a digital or analog voltmeter?
If digital, you need to note the ending, k ohms, ohms or m ohms.

2.14 kohms means it is 2140 ohms.

thanks 4 being honest so what could the problem be crank sensor good getting fire an inj pulse getting fire from coil in dist. but not good fire from plug wires changed wires plugs an dist cap an still no start comp.180 at all 4 cyl what could be the problem can any one help me with this problem!!!

Let us get back to the basics.

What was done prior to this occurring?
Have you checked the engine compression?
Are the sparks bright blue or orange?
Have the ignition coils been tested?
Were the timing belts checked?
How long has engine been idle?
Have you tried starter fluids?

yes i checked compresion an timing belt inj are pulsing an i tried starter fluid.sparks are blue an orange but only getting weak sparks at plugs.an i even changed cap rotor button an plug wires an plugs it hits sumtimes but wont crank.this car is driving me nuts!!!

Have the ignition coil tested.
