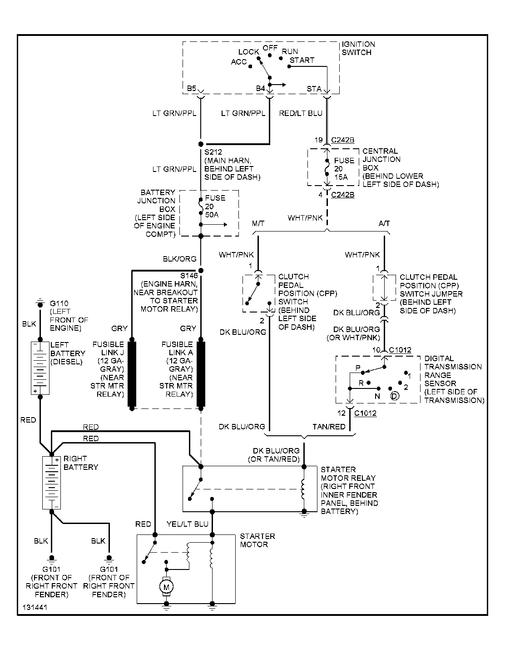

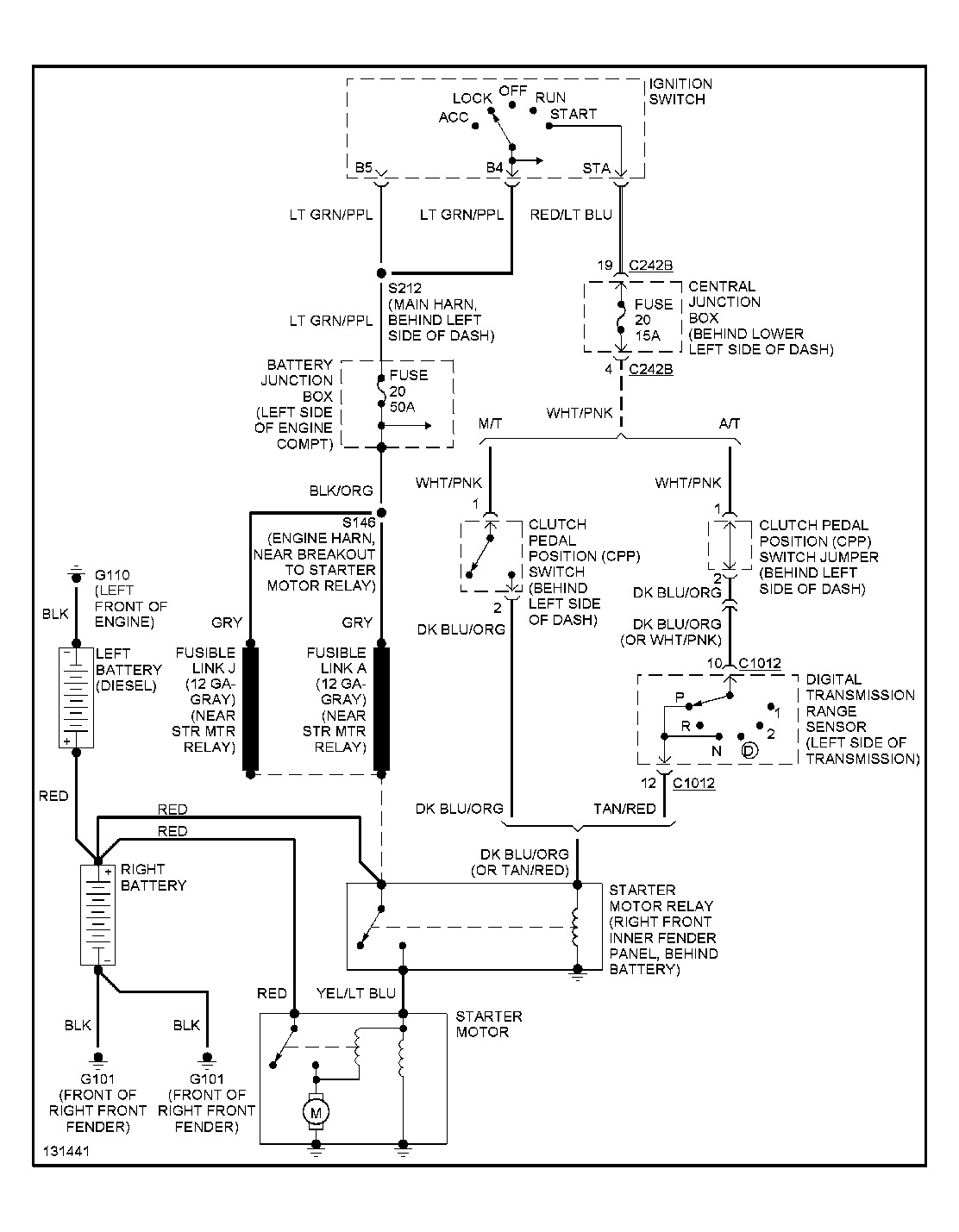

I GRABBED YOU A DIAGRAM FROM "MITCHELL I"
IT SHOULD SHOW EVERYTHING IN THE STARTING SYSTEM......
FUSIBLE LINKS, FUSES, SWITCHES....ETC
IT MIGHT BE EZ TO "BYPASS" A SWITCH OR SOMETHING TO RULE IT OUT
IF IT'S A FUSIBLE LINK....REPLACE IT WITH THE SAME ANIMAL...DO NOT BYPASS IT.....THESE ARE LIKE THE LAST LINE OF DEFENSE, ELIMINATING ONE MAY CAUSE YOUR WHOLE HARNESS, OR EVEN THE TRUCK TO CATCH ON FIRE
THE DIAGRAM ALSO HAS THE LOCATIONS LISTED FOR THE COMPONENTS
IT'S PRETTY SIMPLE TO READ, ACTUALLY FINDING THE STUFF MAY BE HARDER
JUST TO MAYBE HELP YOU ALONG, HAVE YOU TRIED STARTING IN NEUTRAL?
.....SORRY, I'M INTO THE OLDER CARBURETED STUFF, LIKE JEEP CJs AND OLDER FORDS
AIN'T ANY CJs TORN UP AT THE PRESENT, SO I FIGURED I'D ATTEMPT TO HELP SOMEONE ELSE
I FIGURED A GOOD "ROAD MAP" MIGHT AID YOU, EVEN IF I COULDN'T
LEMME KNOW IF THIS HELPS YOU....I NEVER KNOW HOW READABLE THEY ARE ON 2CAR, TILL I POST 'EM
THE MEDIC
