I replaced the heater cir and now the truck won't run

2000 FORD EXPEDITION
150,000 MILES
Avatar
CRUMP2306
  • MEMBER
  • 4 POSTS
I have check all fuses and the fuel pump shut off switch. I also disconnected the battery. I have taken the dash almost completely back out to check for unplugged plugs. I have also tryed to reprogram the key. Everything works like it did. But vehicle will not run. Please give any input
Dec 14, 2011 at 8:02 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Will the starter crank? Any applicable codes? If it cranks good but won't start, have a helper crank it, while you check for spark at the plugs, if you have spark everywhere, use a gage and check fuel pressure.
Dec 14, 2011 at 9:06 PM
Avatar
CRUMP2306
  • MEMBER
  • 4 POSTS
I replaced the heater core.
Dec 14, 2011 at 9:50 PM
Advertisement
Avatar
CRUMP2306
  • MEMBER
  • 4 POSTS
Yes the starter cranks but will not run. It's getting fire to the plugs. The fuel rail bleeder has no fuel coming out when the key is On or in the start position. The truck run before I took the dash out to change the heater core. I put it all back together and it won't run. I have taken most of it back out and checked the plugins. But no luck yet
Dec 14, 2011 at 9:54 PM
Avatar
CRUMP2306
  • MEMBER
  • 4 POSTS
It did have a theft detected, engine disabled code. But the keys are programmed.
Dec 14, 2011 at 9:58 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

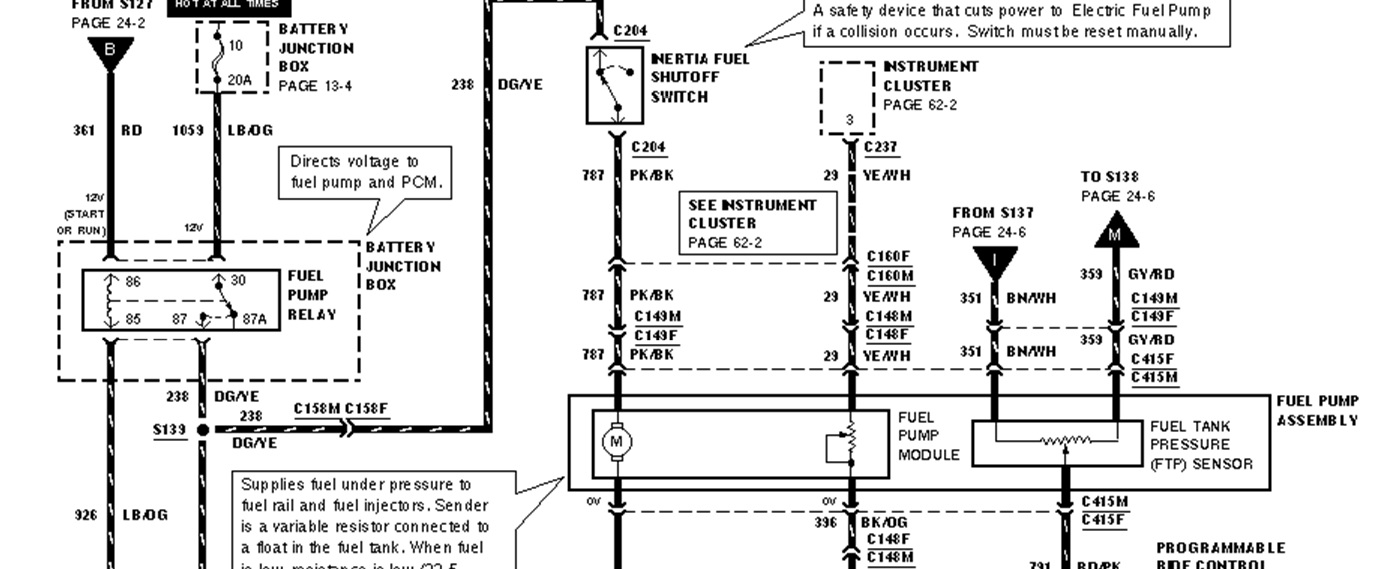

I'd check voltage and ground to the fuel pump, go from there.Wiring diagram below. What was the actual code?

Pink wire with black tracer at fuel pump connector is voltage for fuel pump motor, solid black wire is ground.
Image (Click to enlarge)
Attached Media
Dec 14, 2011 at 10:21 PM
