2000 Dodge Neon safety neutral switch dodge neon

2000 DODGE NEON
180,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
HELL RIDE ALONG
  • MEMBER
  • 1 POST
Hello I have been looking for the safety neutral switch on my dodge neon 2000 and I can't locate it I look every where by the transmission can u help
Jan 17, 2015 at 7:28 PM
Advertisement
Avatar
CATAFINA
  • CERTIFIED EXPERT
  • 167 POSTS

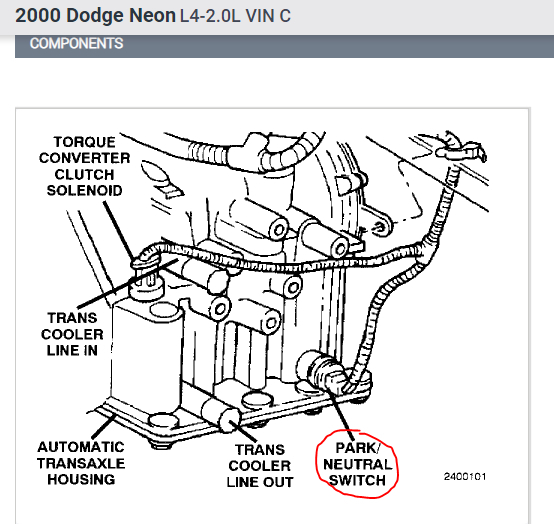

The Park/Neutral position switch is on the left side of transmission-see below

Image (Click to enlarge)
Attached Media
Feb 24, 2021 at 6:30 PM
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

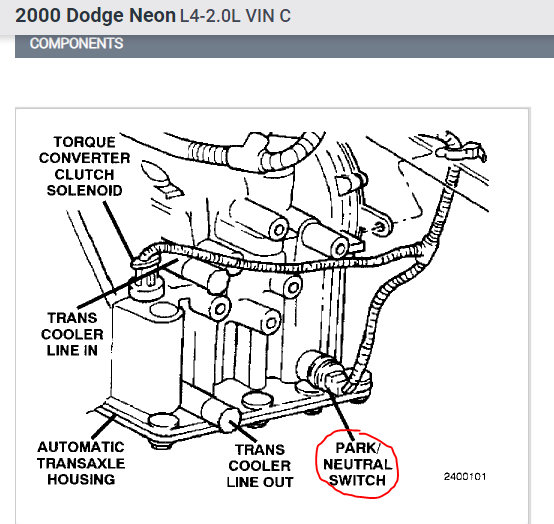

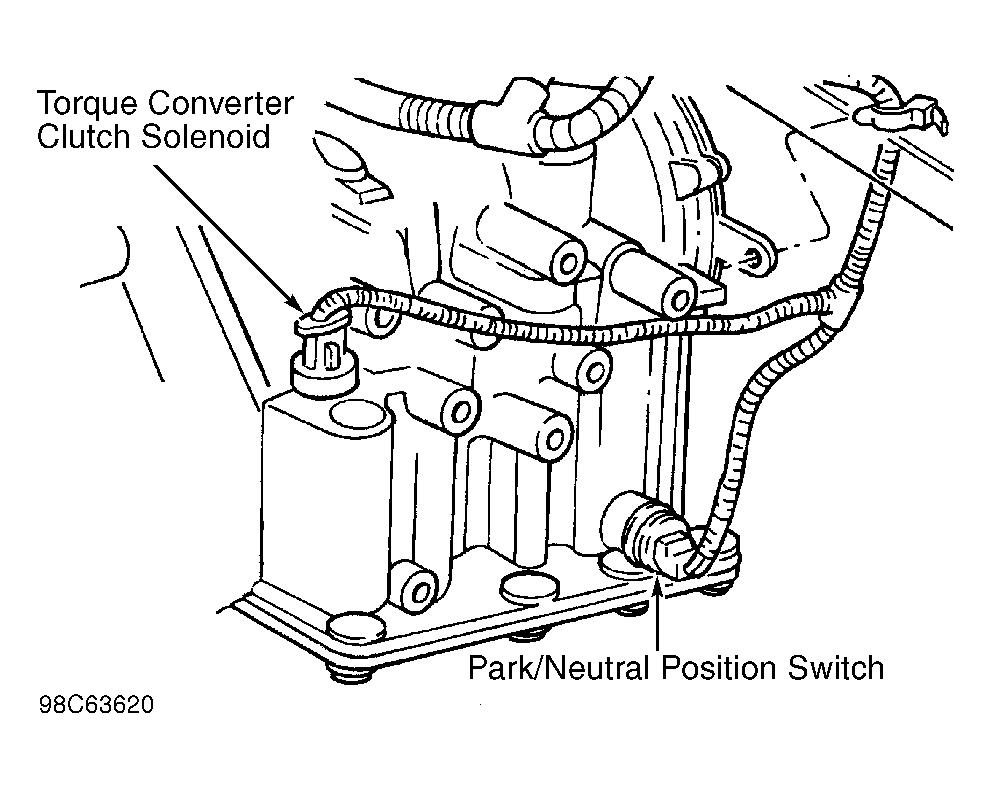

The neutral safety switch is located on the left side of the transmission housing (see diagram).

Here is a helpful guide on neutral safety switch:

https://www.2carpros.com/articles/how-a-neutral-safety-switch-works

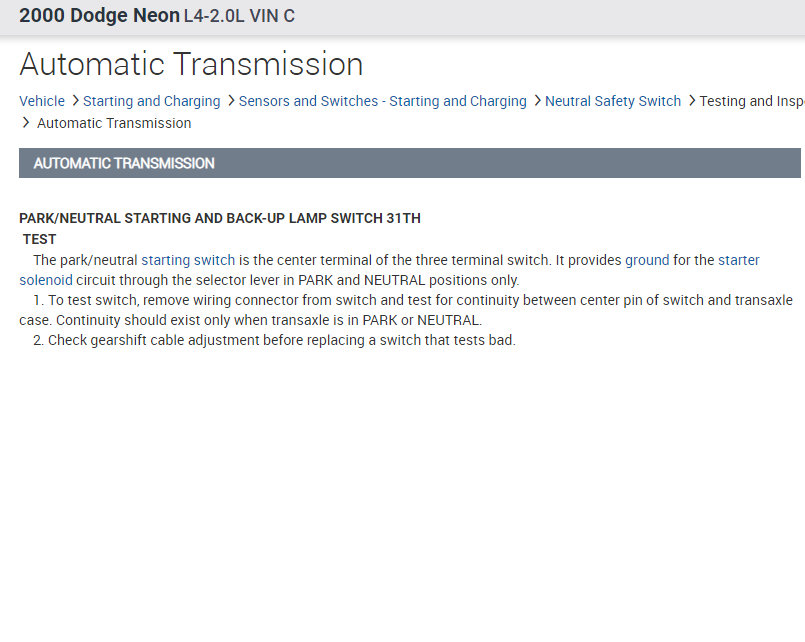

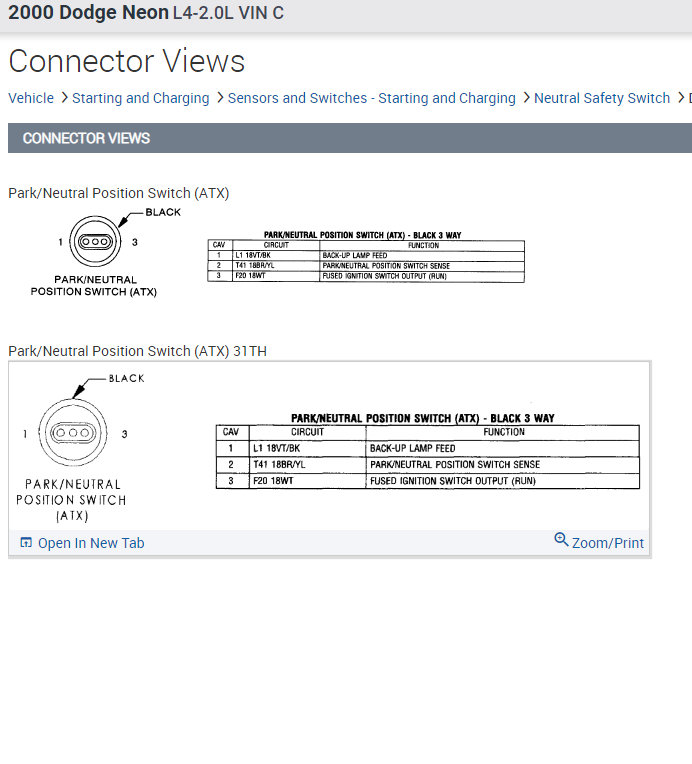

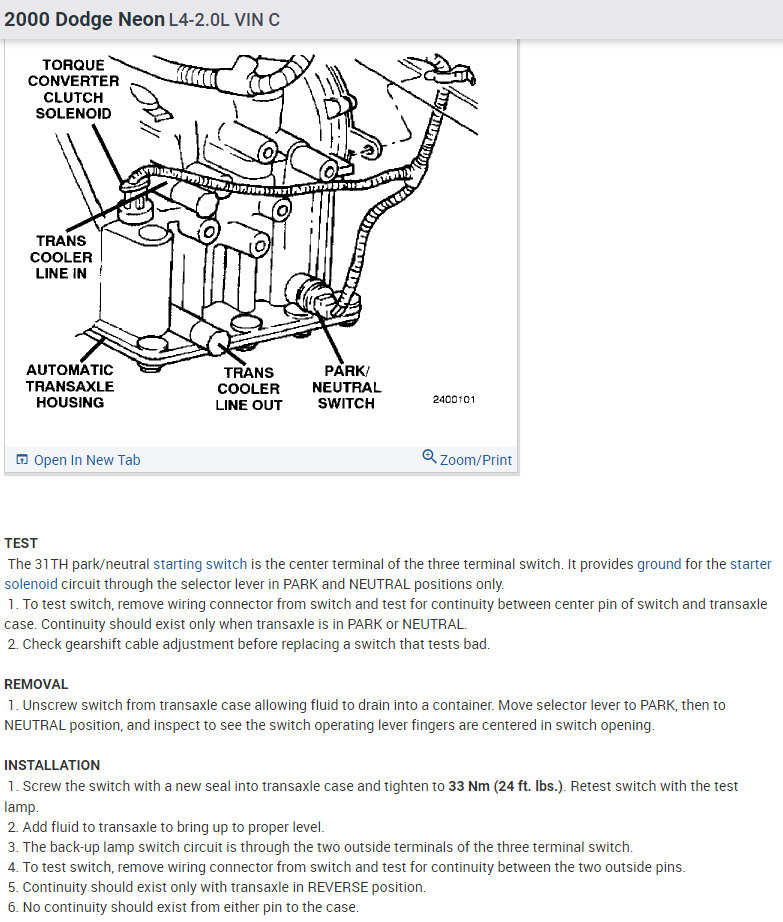

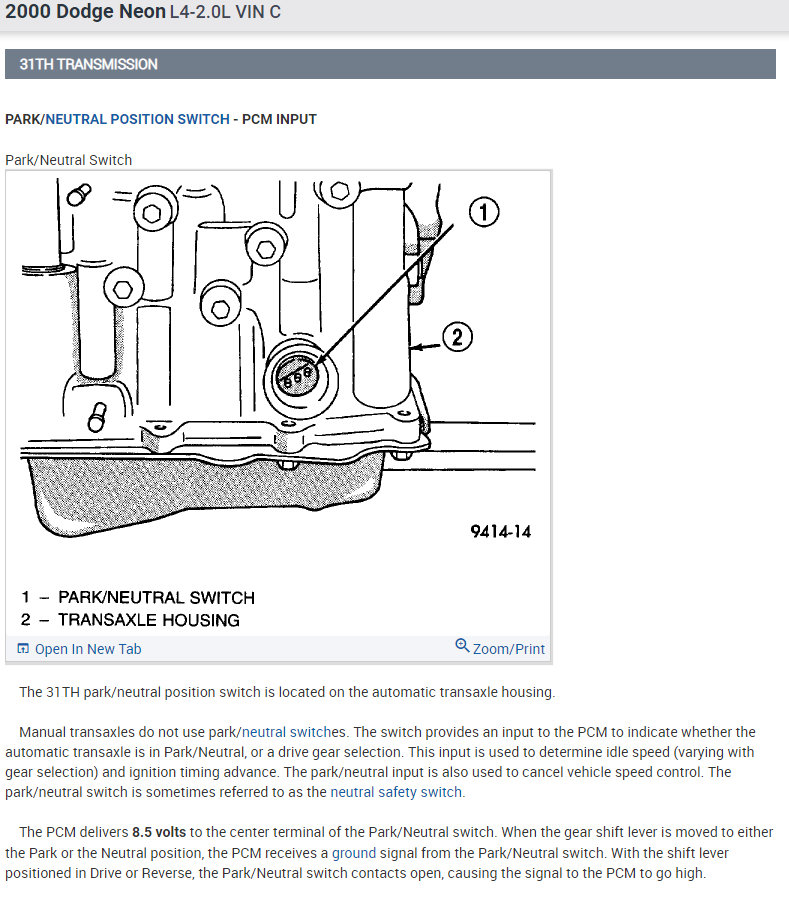

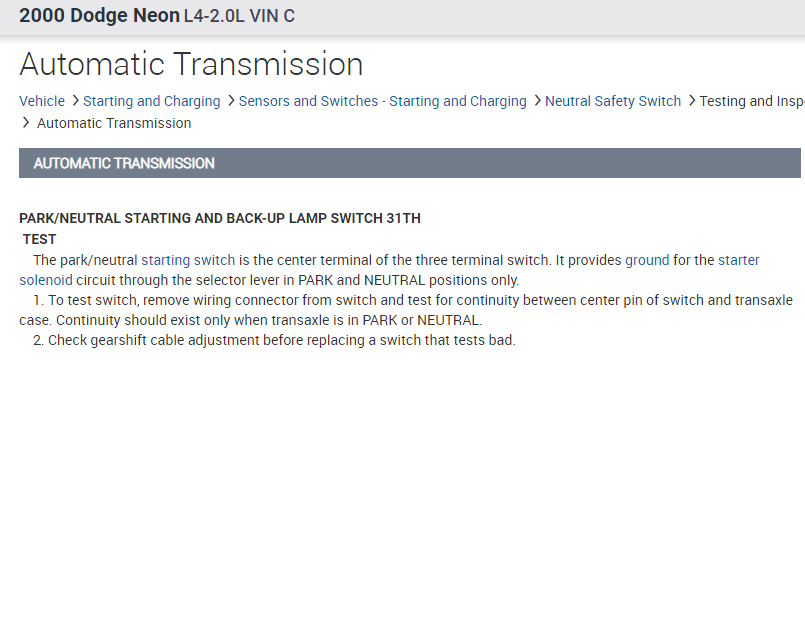

I have included the replacement and testing procedure for your reference.

Please let me know of any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 8, 2021 at 12:17 PM
