2000 daewoo nubira 1.6sx manaul timeing marks

2000 DAEWOO NUBIRA
136,637 MILES
Avatar
RECYCLE 7
  • MEMBER
  • 1 POST
HI THERE I GHANGE CAMS AND TAPS WERE STILL NOISY SO CHANGE TAPS AND LOST
TIMEING WANT TO KNOW TIMEING MARKS AND SET THANK YOU
Jan 11, 2012 at 6:12 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

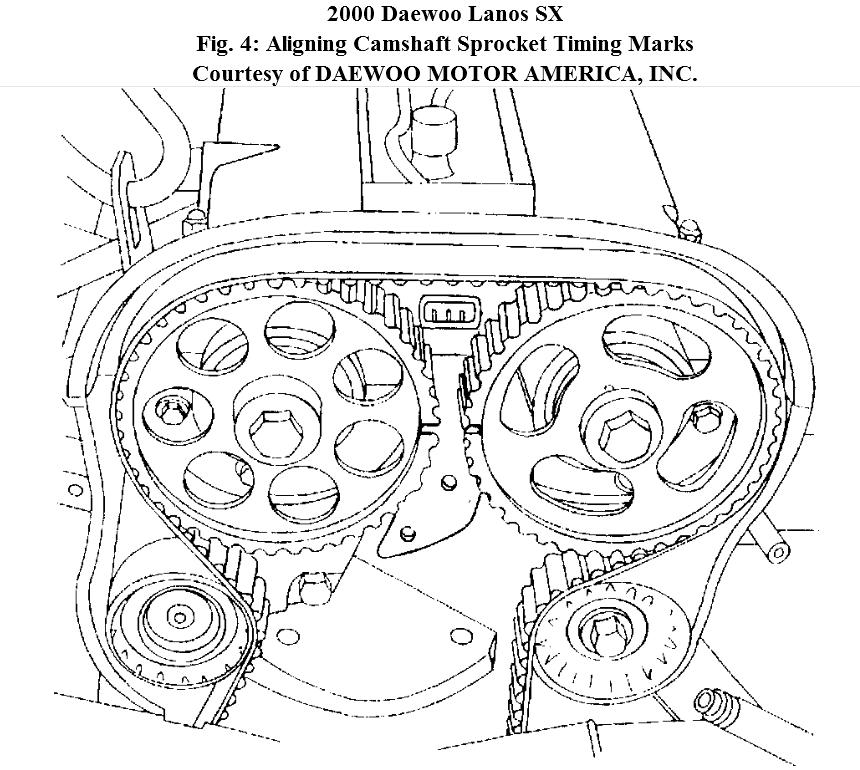

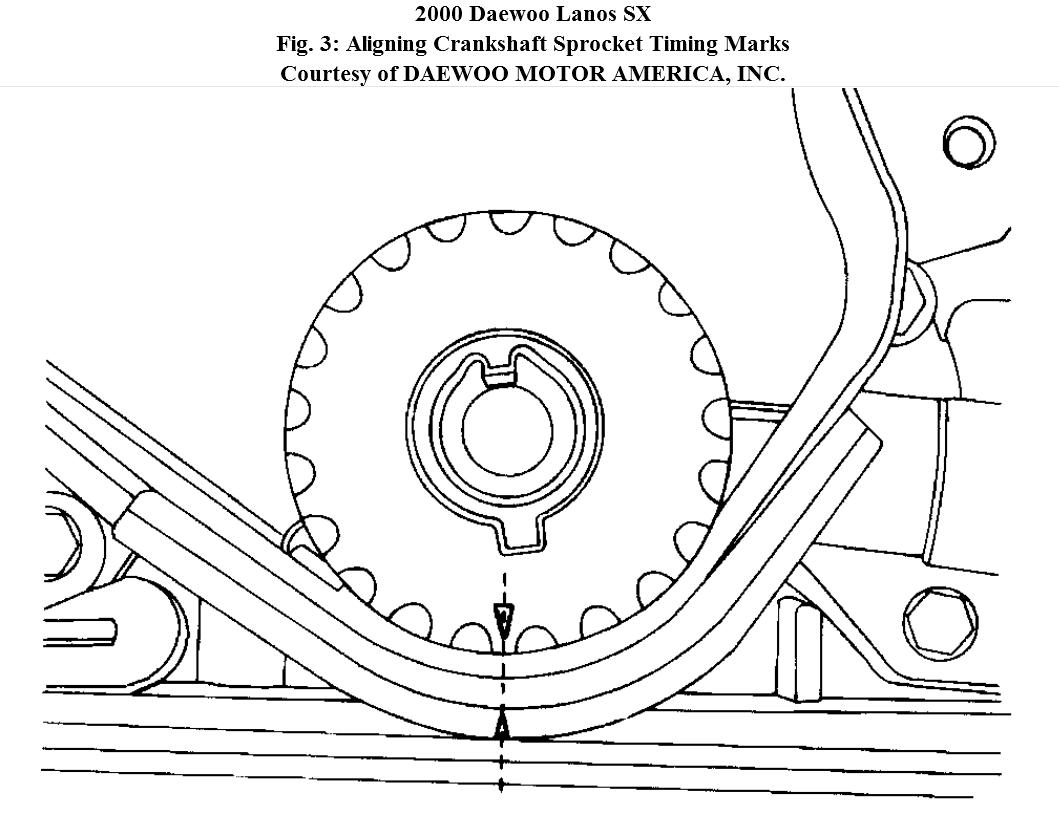

Refer to diagram for timing. If crankshaft had not been removed, use the timing mark as guide.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 11, 2012 at 12:53 PM
