I need a diagram for the firing order of a 2000 cirrus 2.5 engine

2000 CHRYSLER 300
160,000 MILES
Avatar
RACHEL615
  • MEMBER
  • 1 POST
diagram for firing order on a 2000 chrysler cirrus 2.5 6 cylinder
Sep 3, 2011 at 2:34 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS

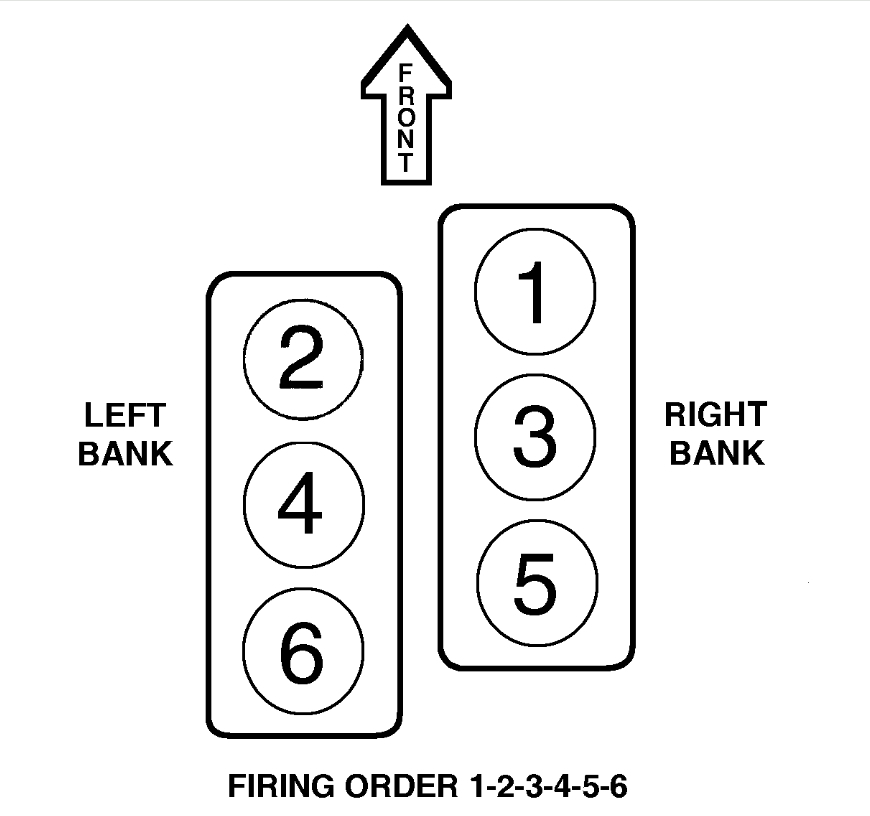

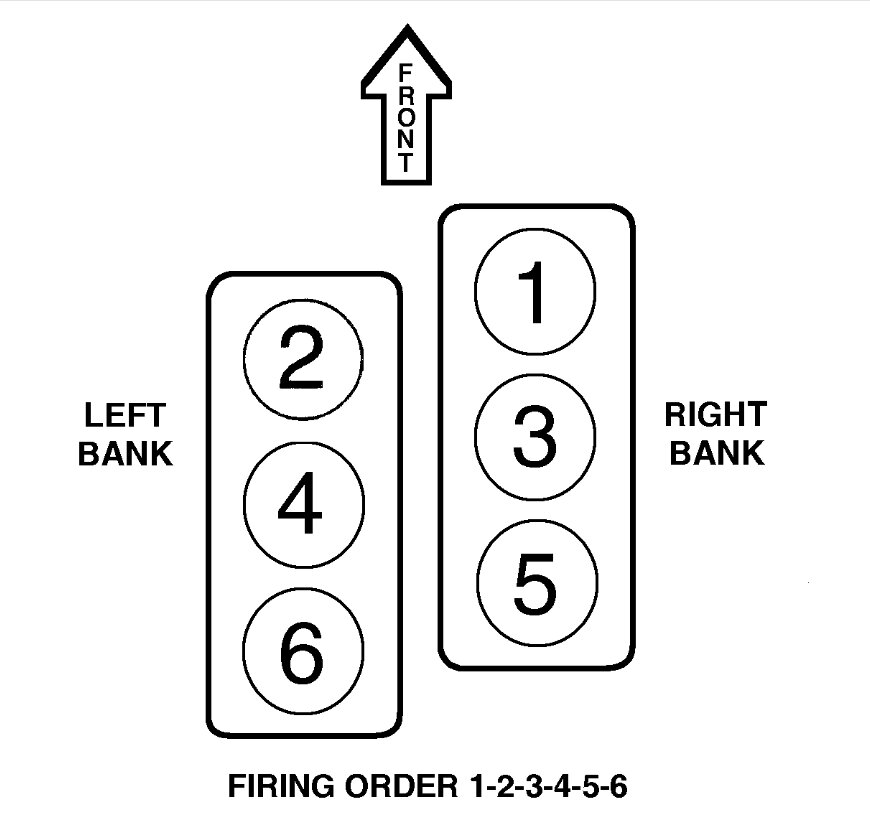

The firing order is 1,2,3,4,5,6 If you are facing the front of the engine, 1-3-5 are on the left. On the right are 2-4-6.

The picture has a copywrite and I can't cut and past. Let me know if this helps.
Image (Click to enlarge)
Attached Media
Sep 3, 2011 at 2:39 AM
