2000 Chevrolet Suburban Abs brake sys.

2000 CHEVROLET SUBURBAN
184 MILES • 6.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
RTRUPIANO
  • MEMBER
  • 1 POST
There's three conn. For abs one mod. Connect one pump connect to abs module and one pump connect
Directly to pump motor it self I can't find the third conn. to the pump itself coming from the frame ?
Jul 21, 2014 at 11:34 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

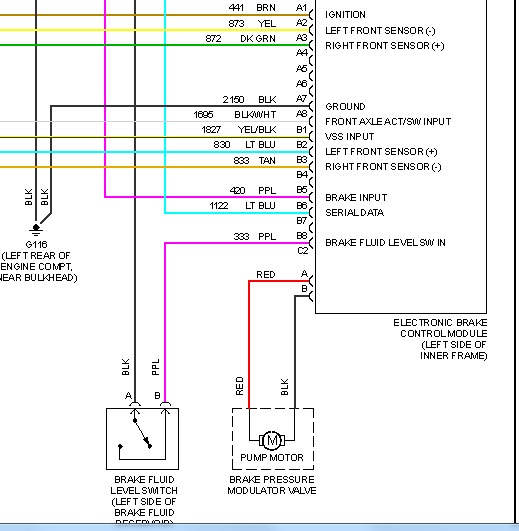

not sure what you are after as your question is kind of screwy but here is pic of abs hook up
Image (Click to enlarge)
Attached Media
Jul 22, 2014 at 5:48 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
one other thing if is you have traction control they are different
Jul 22, 2014 at 5:49 AM
