where is the ECM

2000 CHEVROLET IMPALA
46,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
LUIGGI2010
  • MEMBER
  • 1 POST
where is located the ECM on a chevrolet impala 2000 3.4
Jan 2, 2011 at 3:35 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS

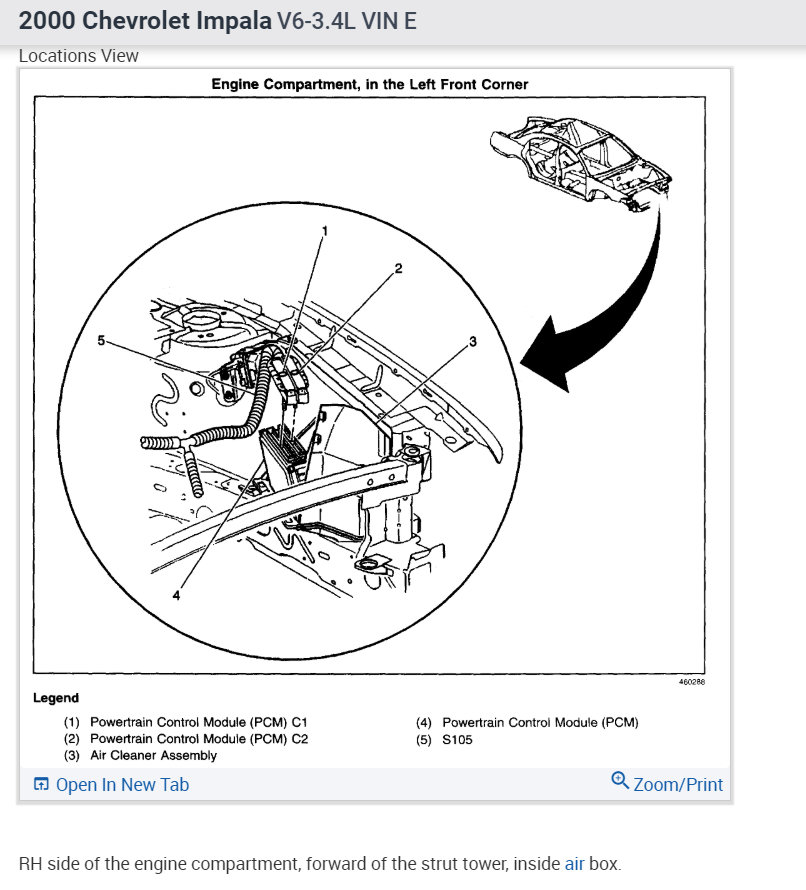

The PCM in on the RH side of the engine compartment, forward of the strut tower, inside air box. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Feb 9, 2011 at 2:45 AM
Avatar
MIETECHROADRUNNERCOM
  • MEMBER
  • 2 POSTS
I need to check the ground wire on my pcm.
Dec 7, 2016 at 5:30 PM (Merged)
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
It should be near air box under the hood.
Dec 7, 2016 at 5:30 PM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

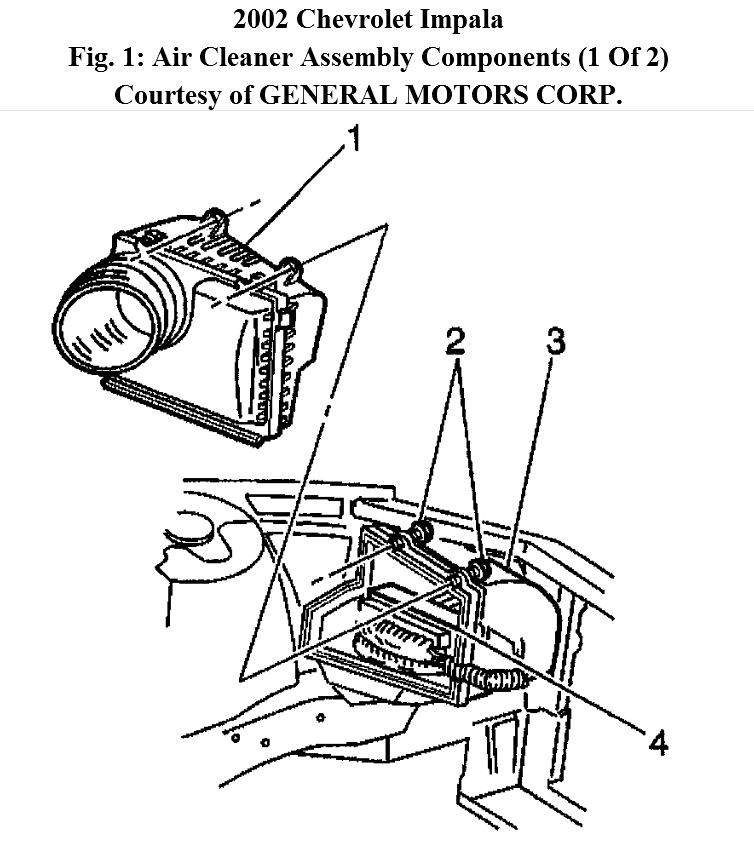

In air cleaner box
Image (Click to enlarge)
Attached Media
Dec 7, 2016 at 5:30 PM (Merged)
Avatar
MIETECHROADRUNNERCOM
  • MEMBER
  • 2 POSTS
Thanks for that answer.My 2002 impala is a former police cruiser.I don't know if there would be any difference where the PCM would be located.I will check my air box and see.Thanks again!
Dec 7, 2016 at 5:30 PM (Merged)
Avatar
PAUL IMPALA
  • MEMBER
  • 1 POST
Electrical problem
2002 Chevy Impala 6 cyl Two Wheel Drive Automatic

Where is the ECM located on a 2002 Chevy Impala?

(I have told behind the glove box)
Dec 7, 2016 at 5:30 PM (Merged)
Avatar
BLUELIGHTNIN6
  • CERTIFIED EXPERT
  • 16,542 POSTS
Should be behind the left side of the dash, above the parking brake lever.
Dec 7, 2016 at 5:30 PM (Merged)
