need a drive belt diagram please, water pump collapsed and took belt off. I have no idea which way round the belt goes !
Oct 28, 2012 at 12:36 PM
2000 BMW 318I
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement

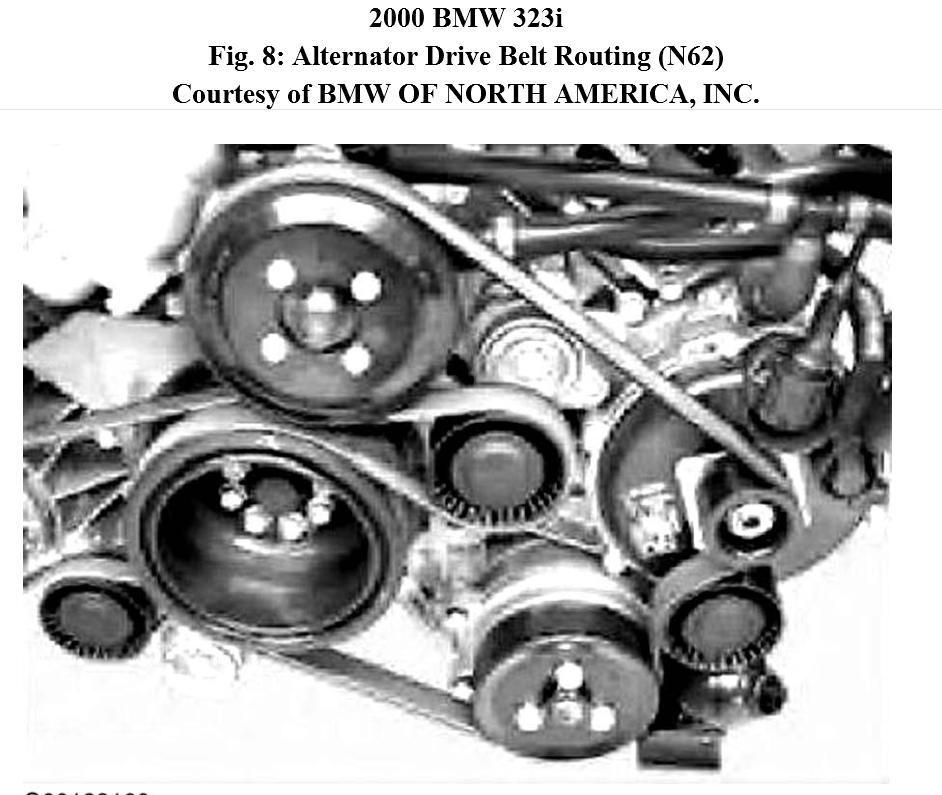

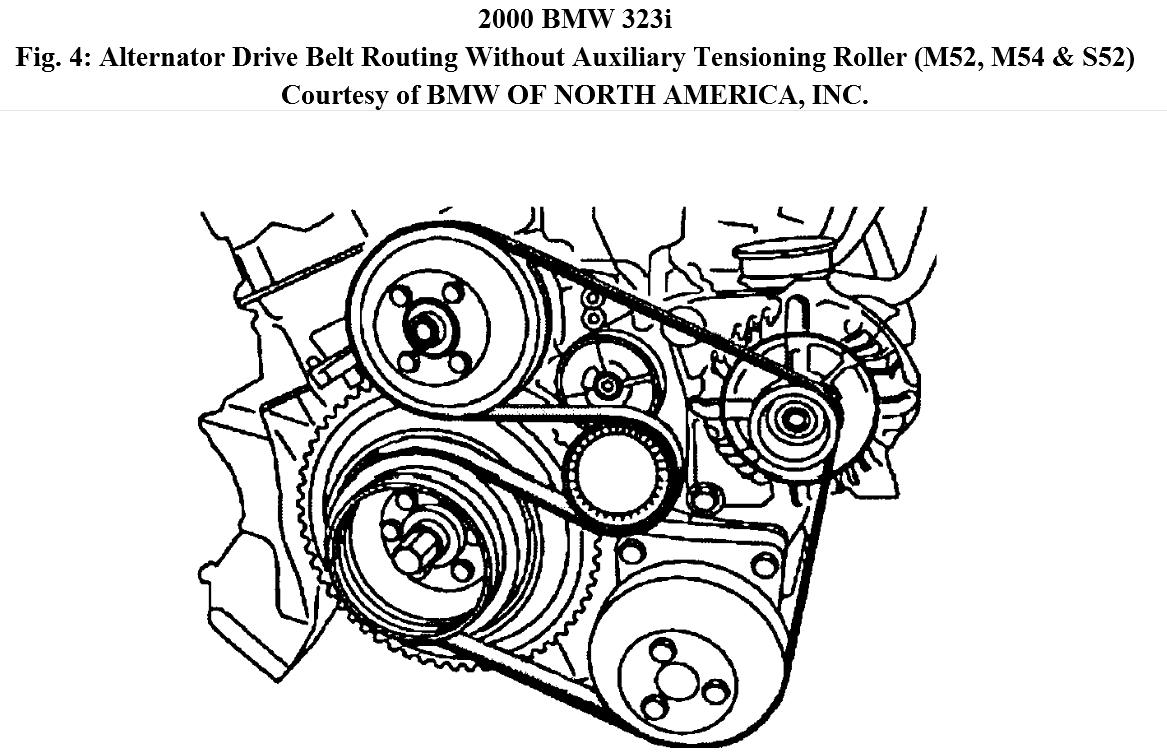

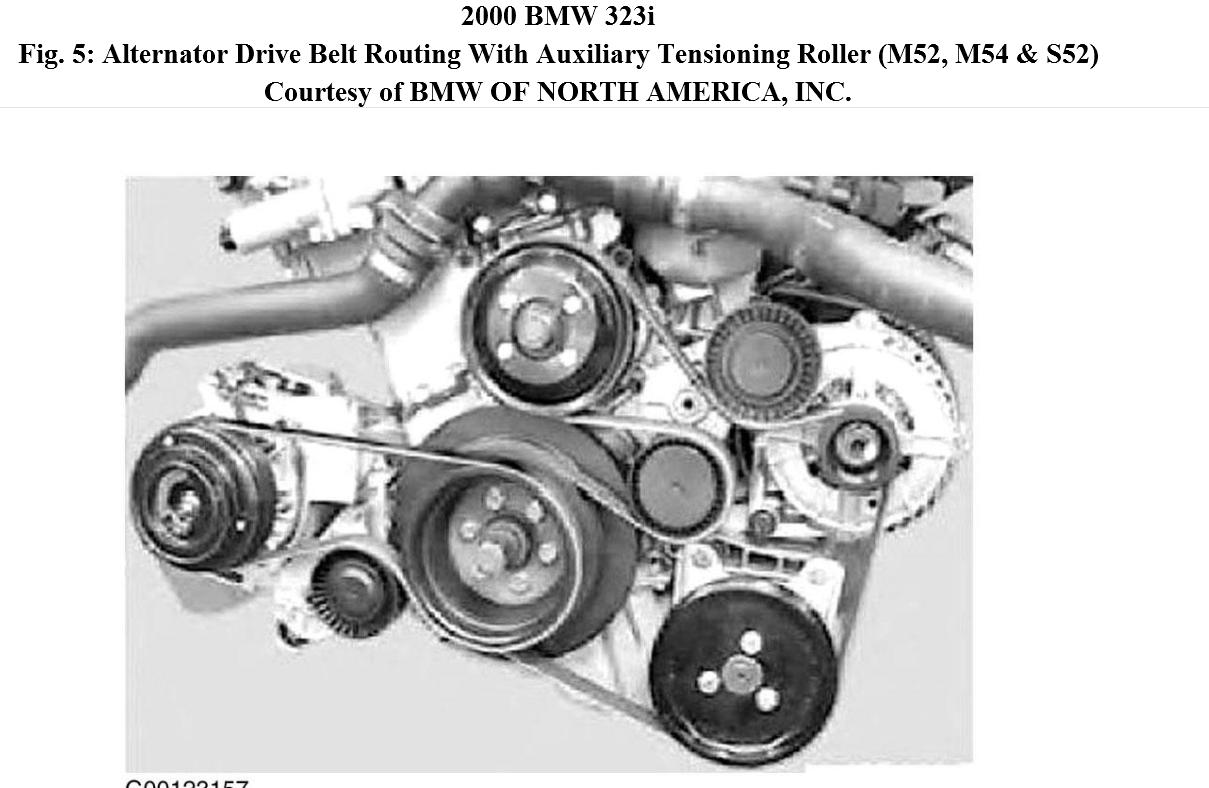

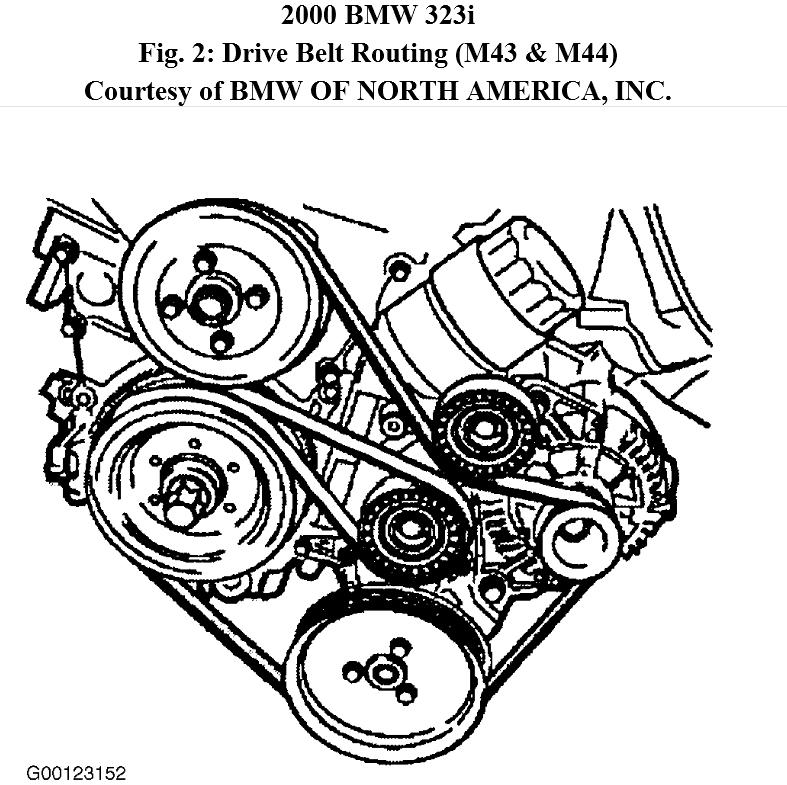

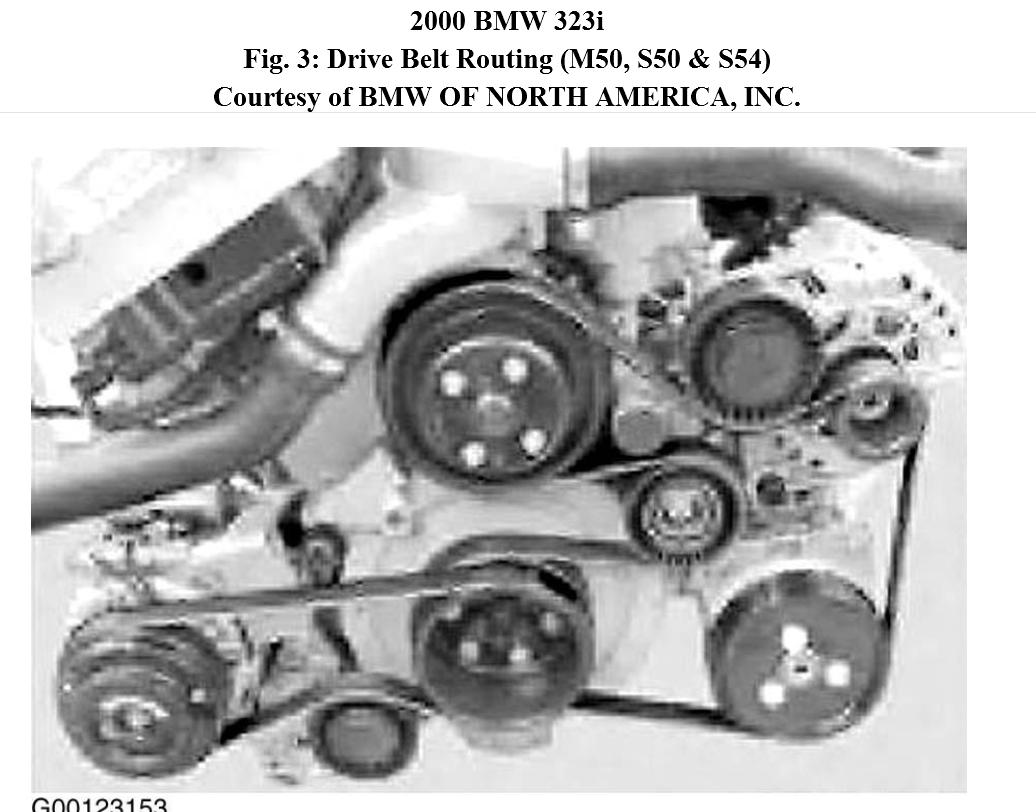

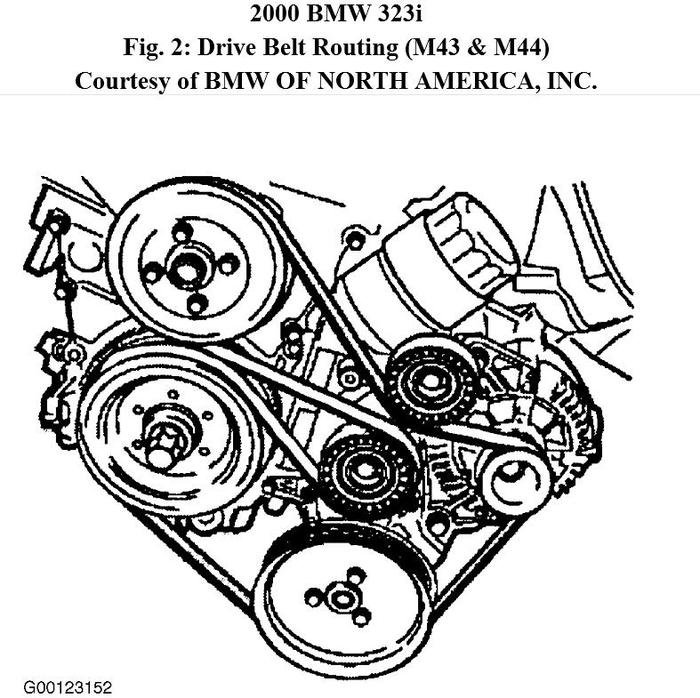

We don't have any information for your vehicle and I have here a few diagrams here. One should be applicable.
Images (Click to enlarge)
Oct 28, 2012 at 3:20 PM
