1TR-FE engine cylinder head bolts torque

2005 TOYOTA PICKUP
250,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
GEOFFREY MOKOMANE
  • MEMBER
  • 1 POST
I need torque specs for cylinder head bolts for 1TR-FE engine.2.0 litre vvti hilux,2005 model.

The bolts shank is 10 mm measured with vinier calipher and 14mm socket is used to tighten them.

Please assist with torque spec.
Dec 15, 2018 at 9:35 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

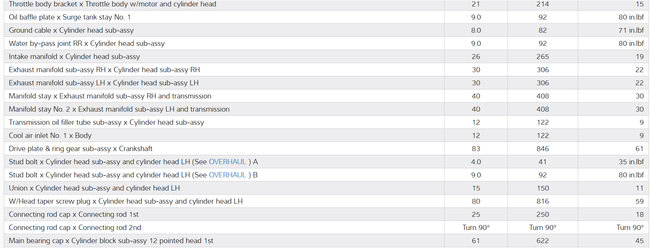

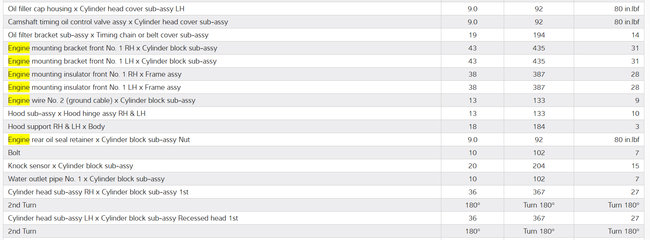

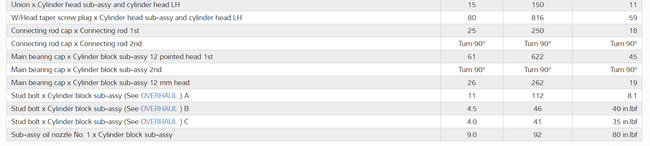

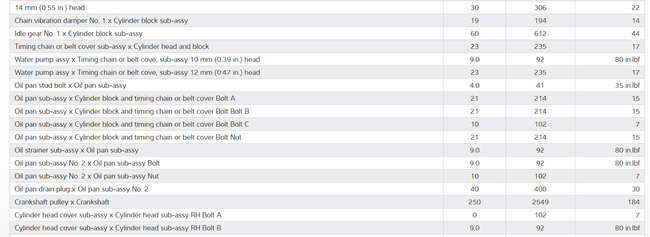

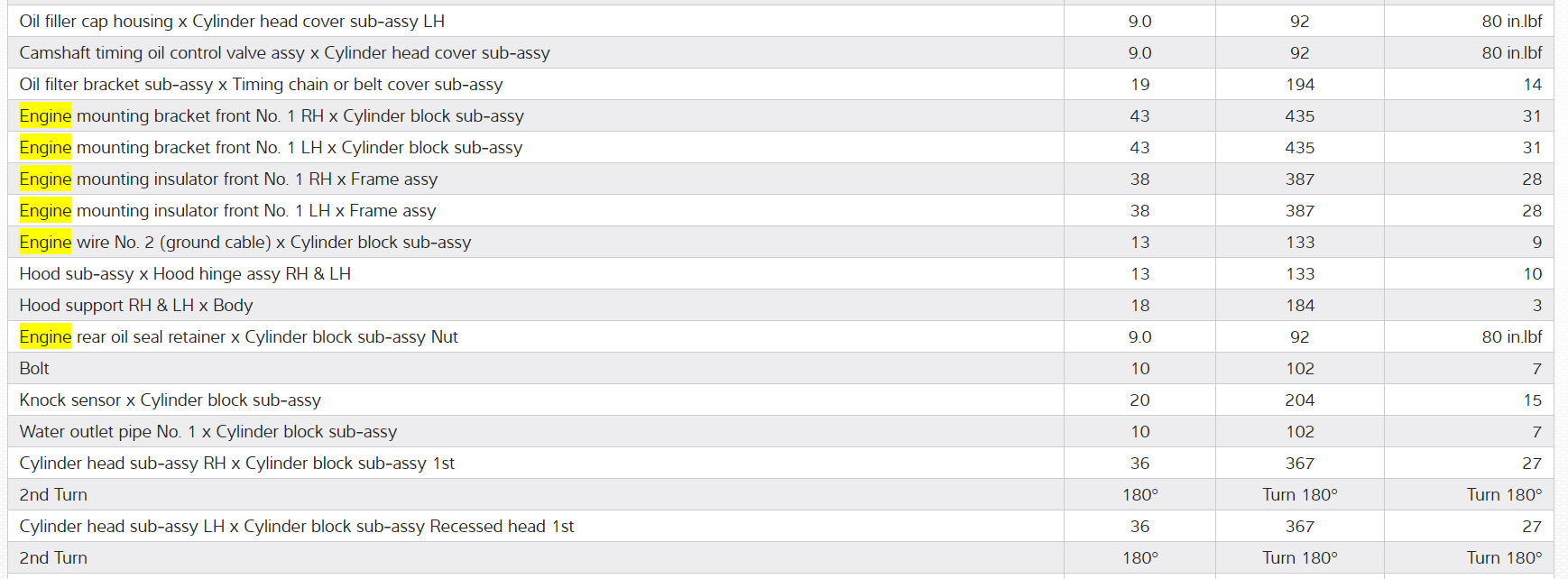

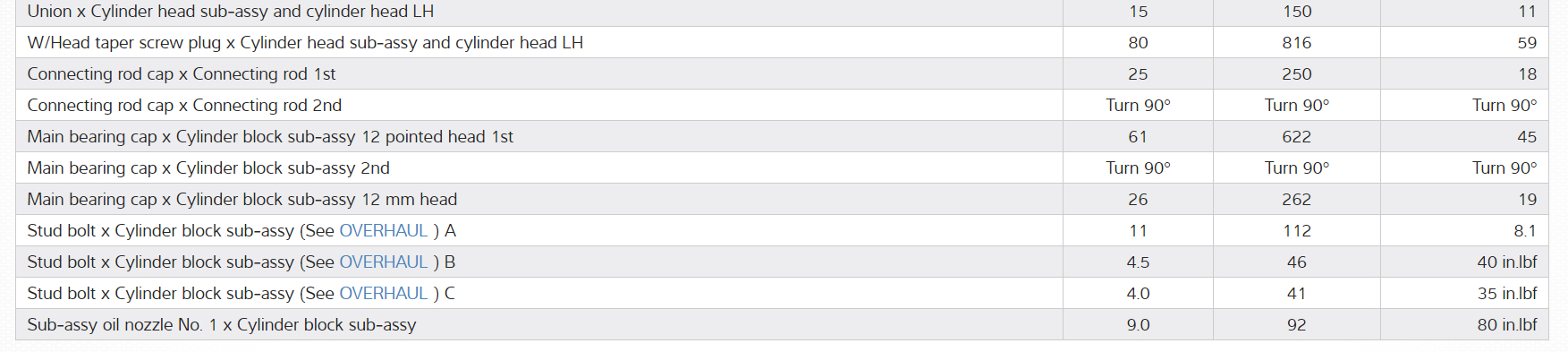

I found all engine torque specs some are toque then turn 90 degrees so be careful. Here is a video to show how to use a torque wrench and the full specs in the diagrams below:

https://youtu.be/juOClONIWeY

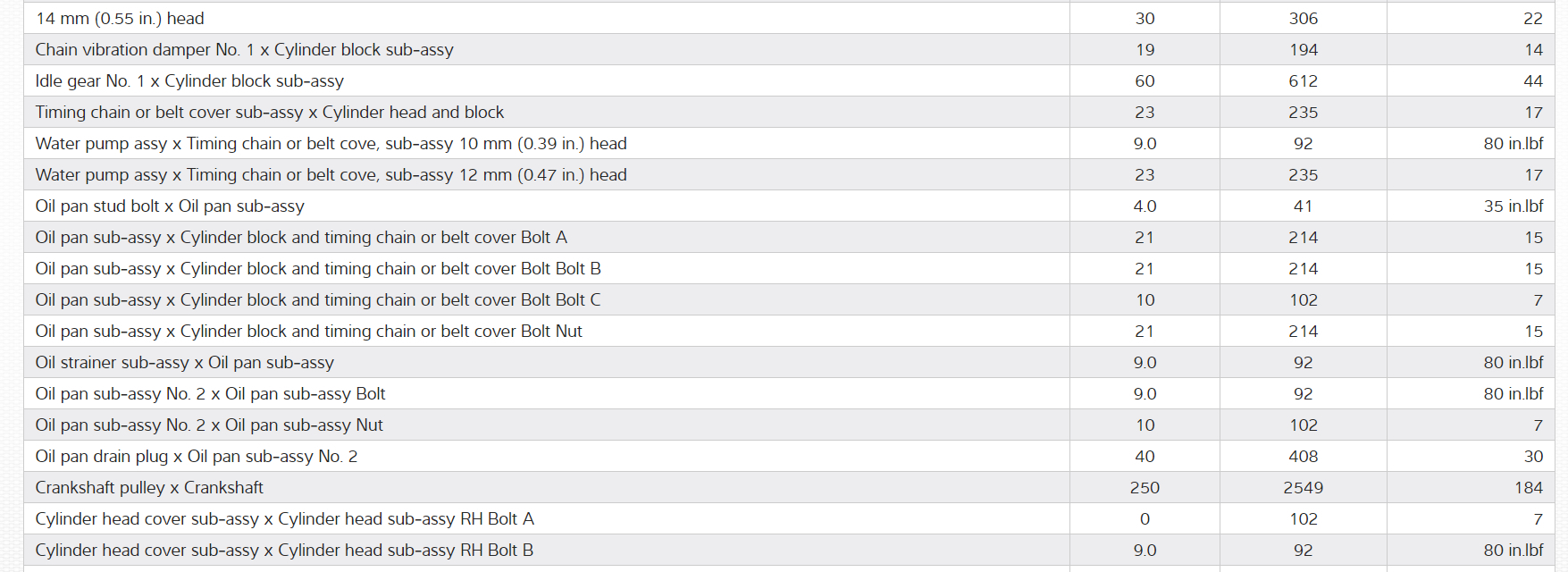

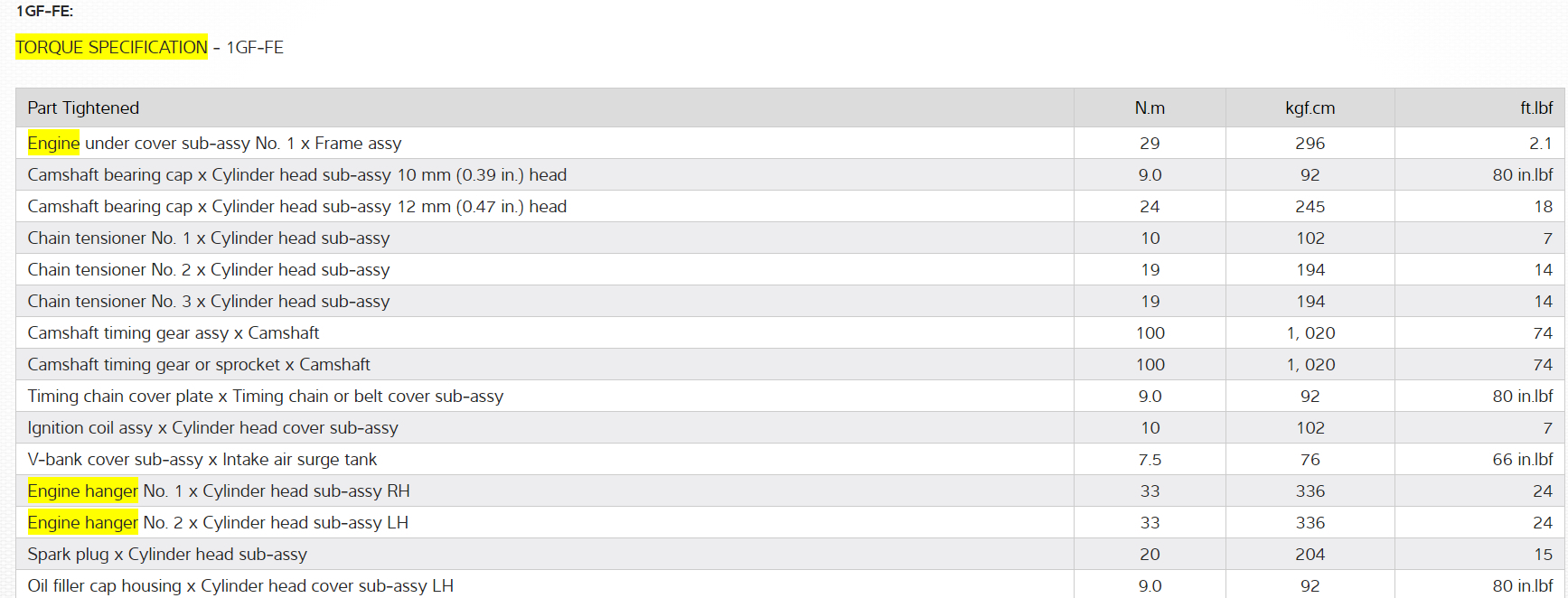

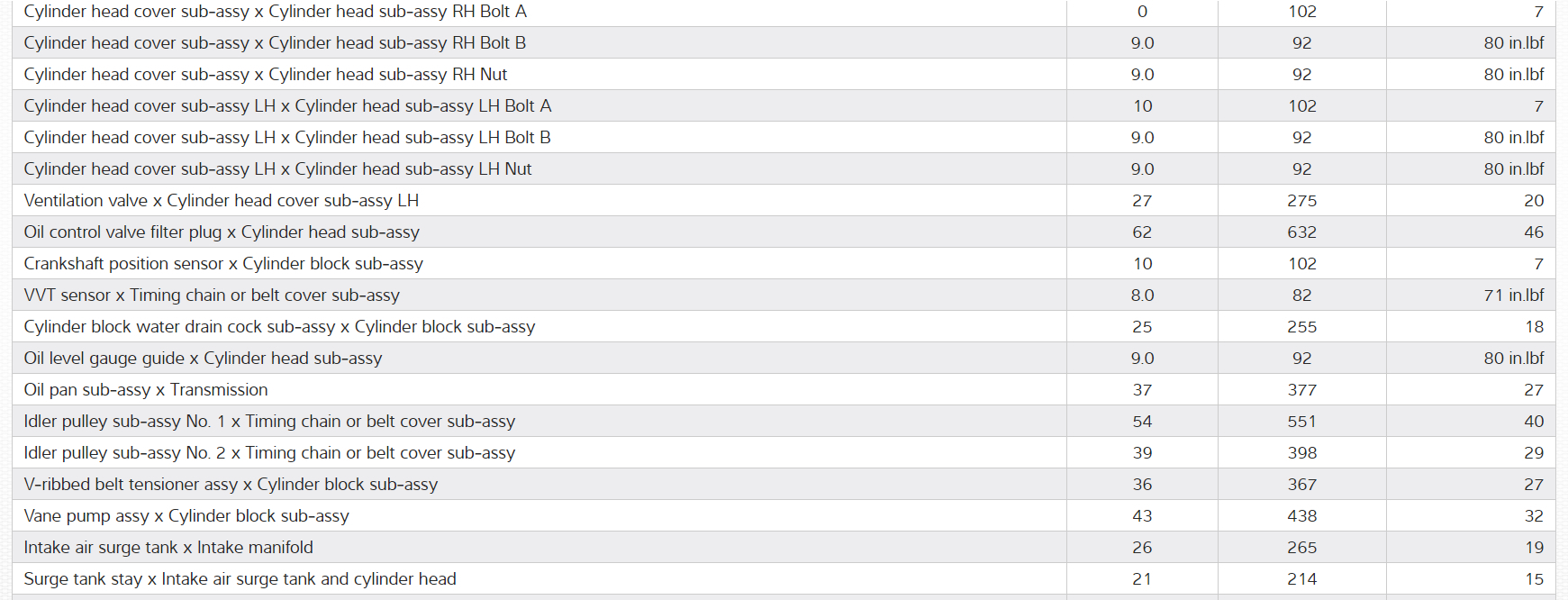

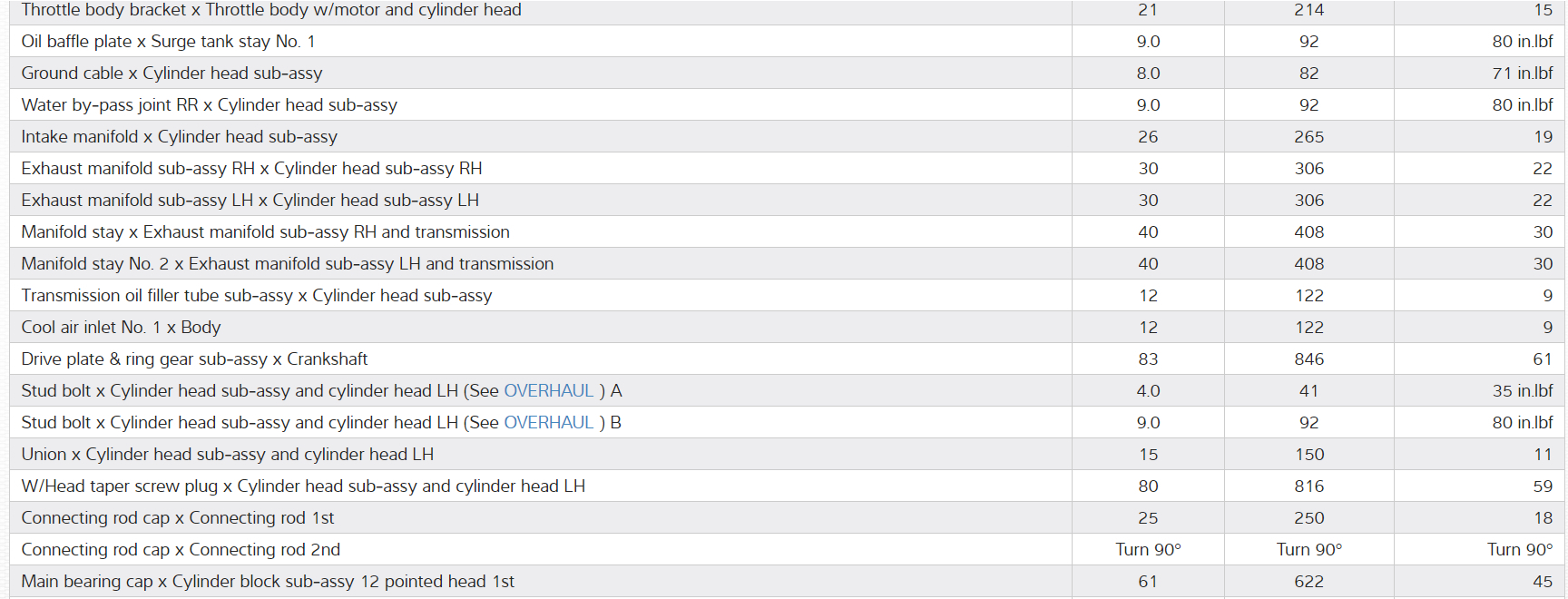

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed. Cheers, Ken
