1999 TOYOTA RAV4
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
location of fuel pump relay.
Dec 2, 2012 at 1:23 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

Here is a guide to help you test the relay once you have found it by checking out the diagrams below.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

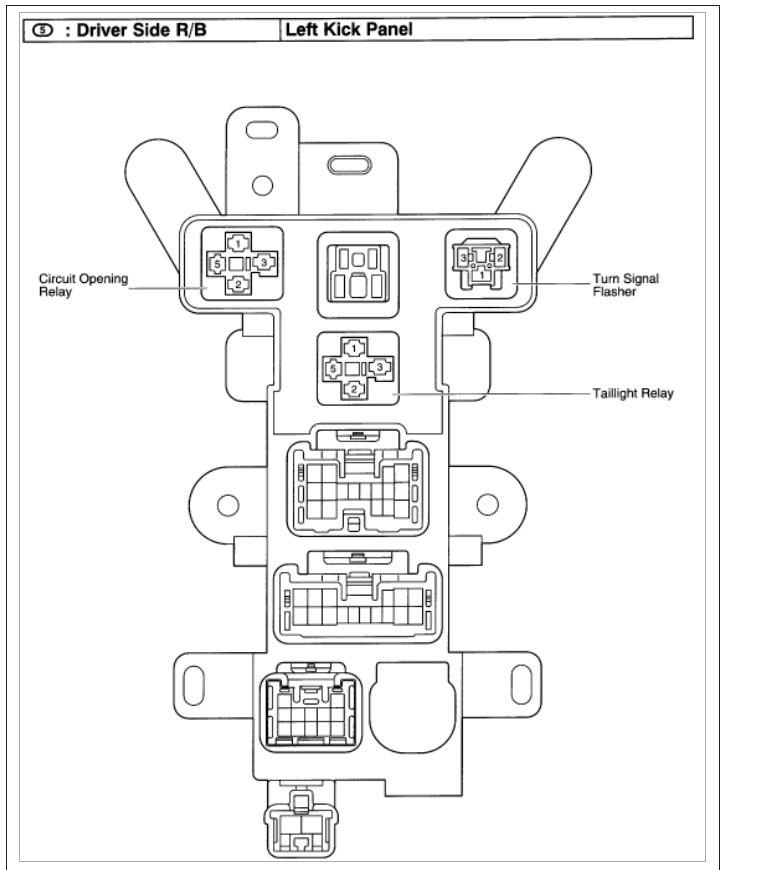

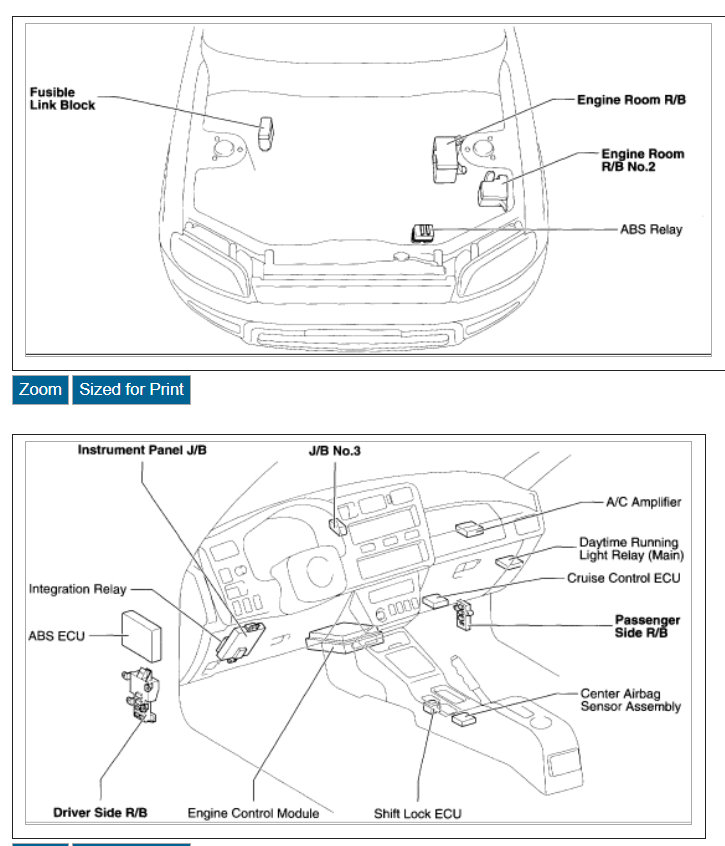

They call the fuel pump relay the "circuit open" relay btw by the left kick panel. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Jan 29, 2018 at 1:11 PM
