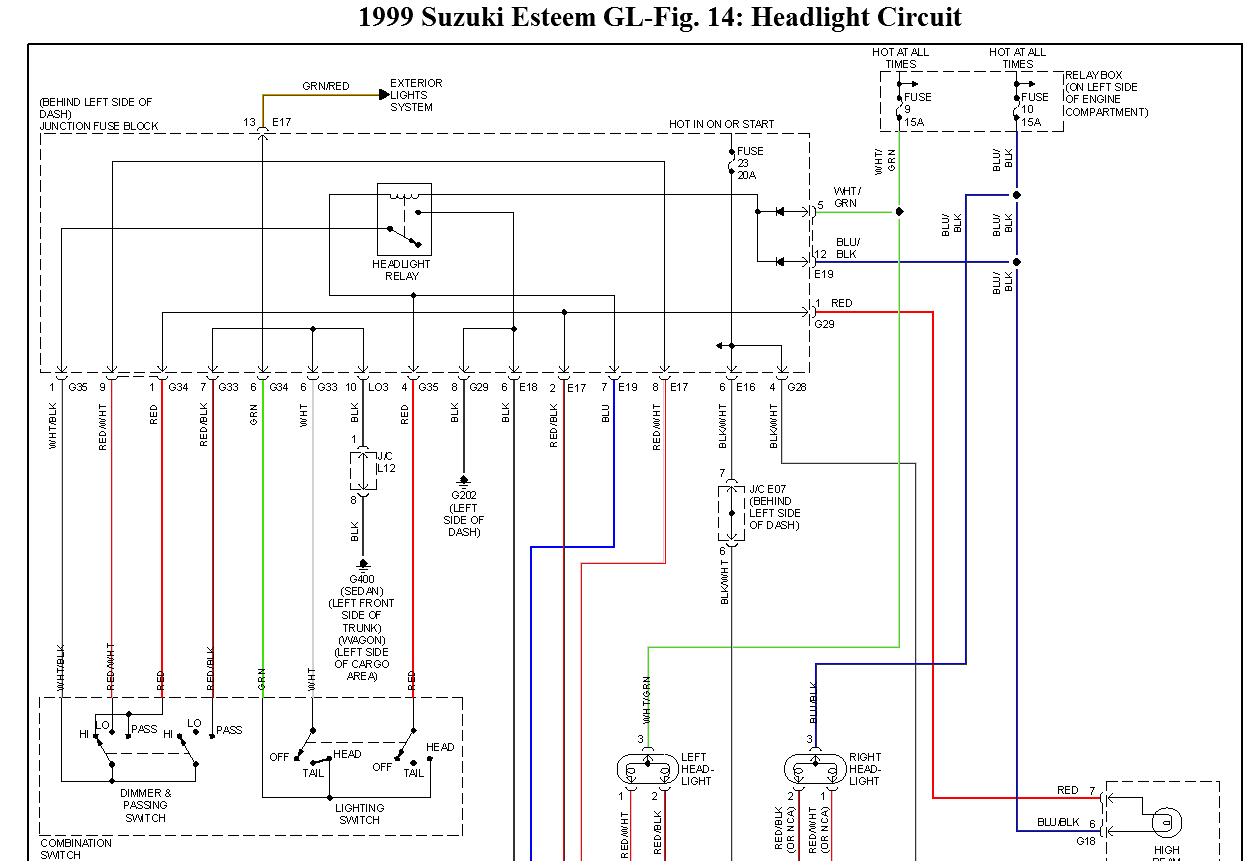

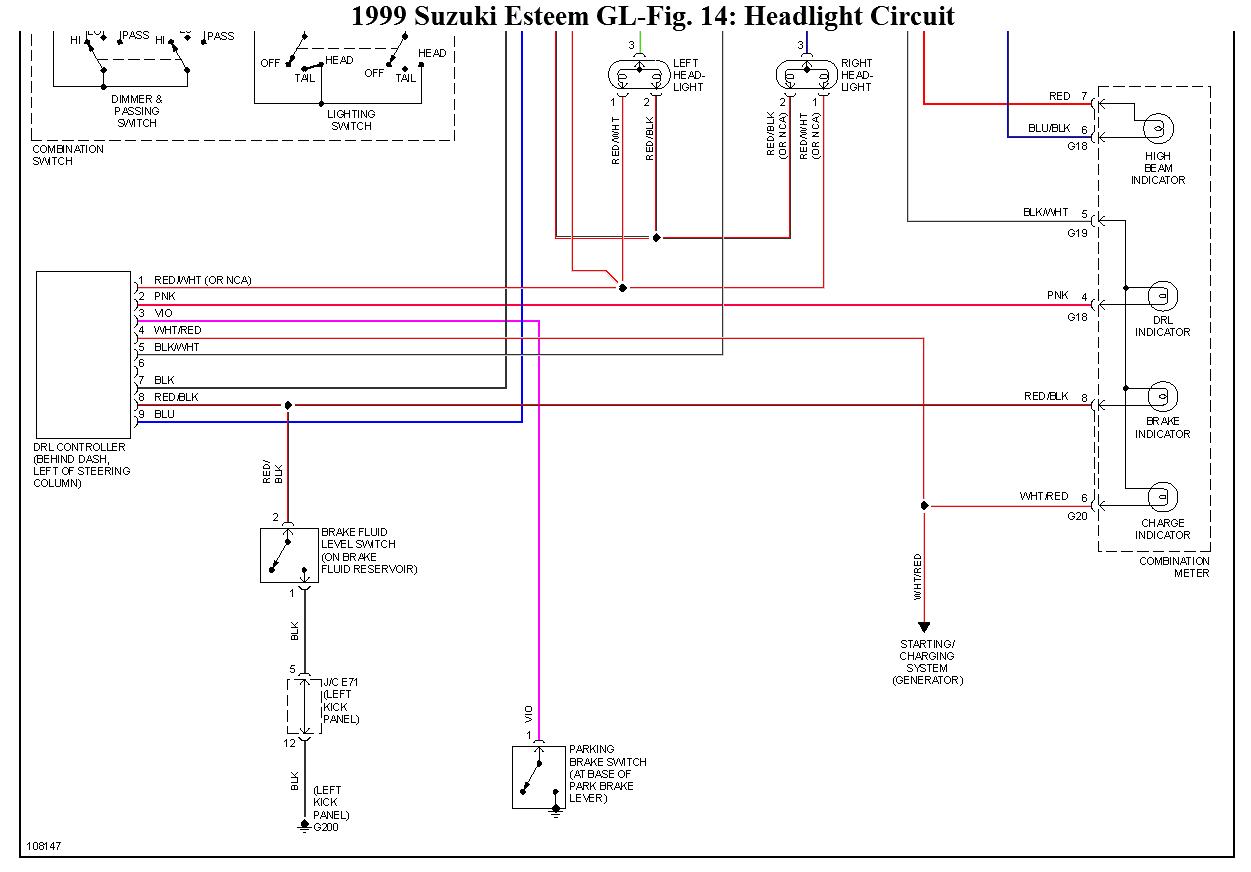

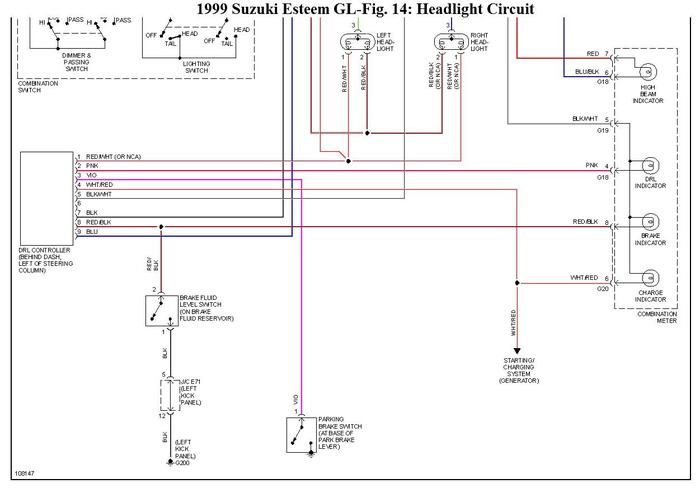

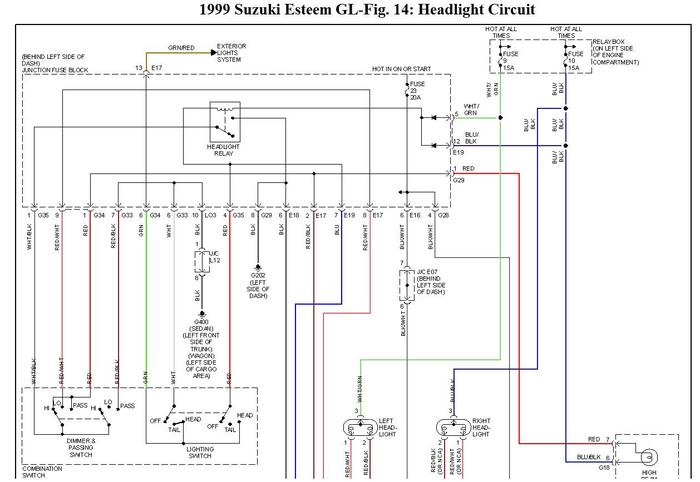

First 2 diagrams shows the headlight circuit. Each side has its own fuse. Ensure you have abttery voltage at headlight bulb connector White/Green and Blue/Black for respective side.

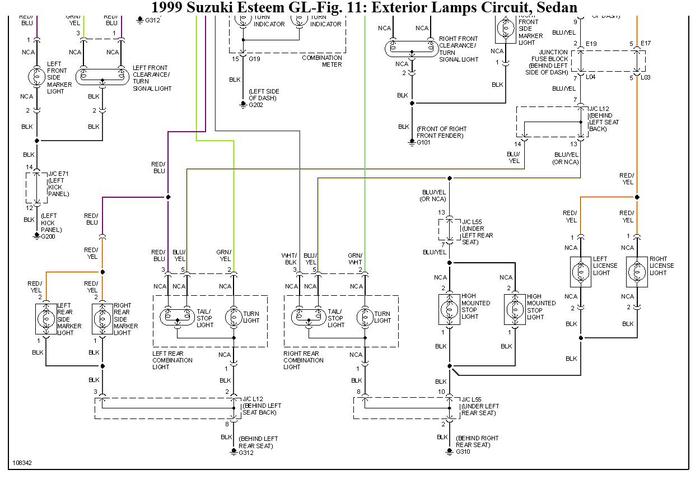

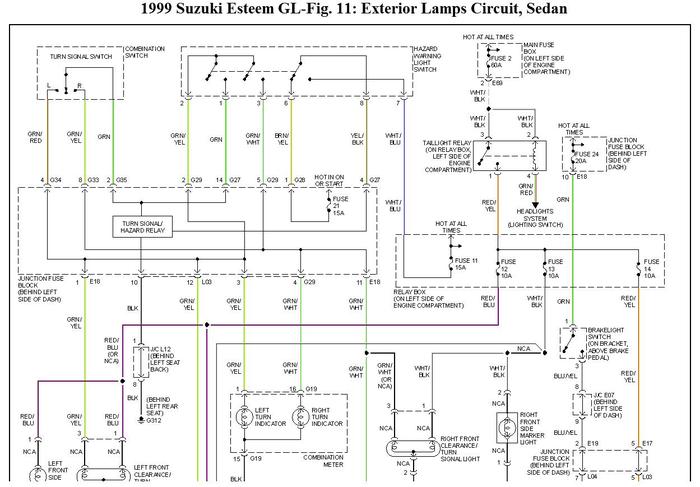

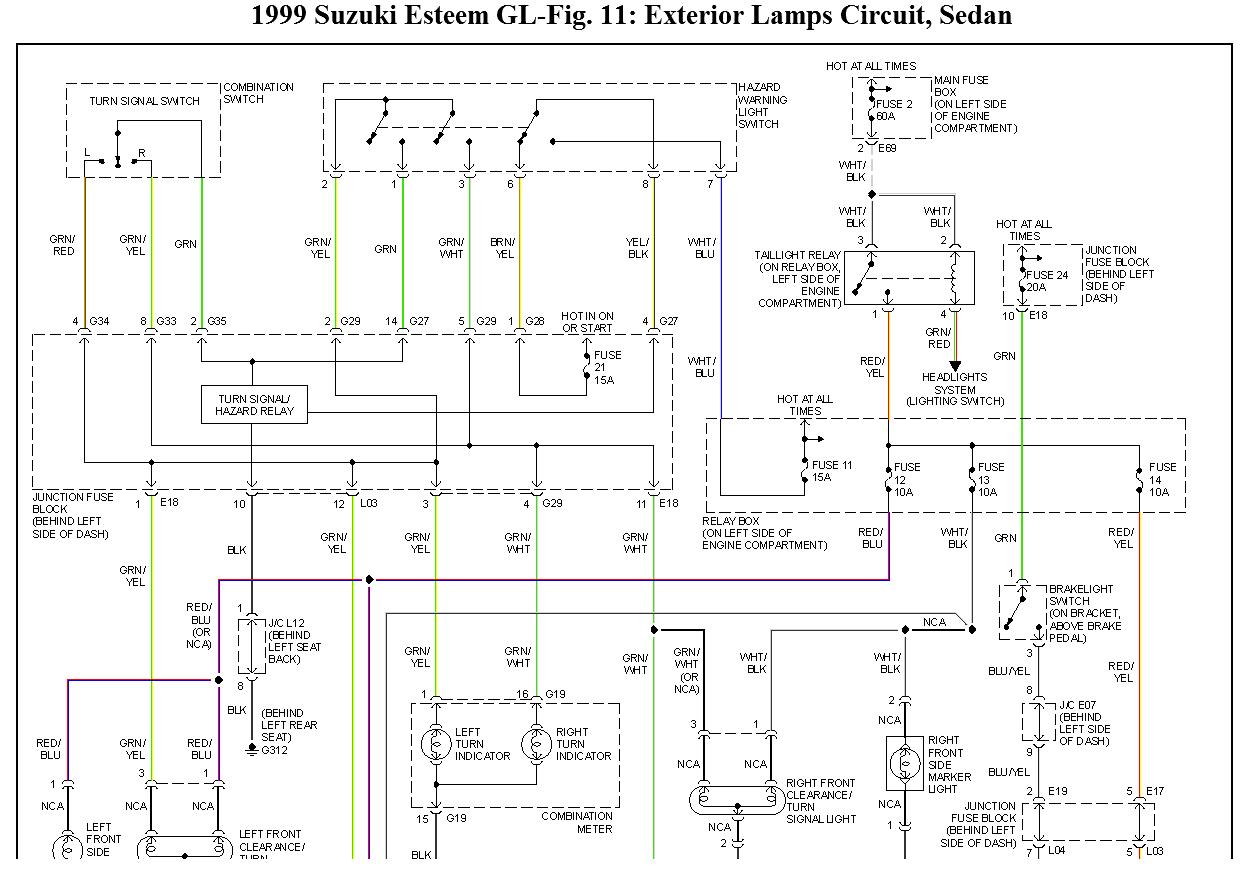

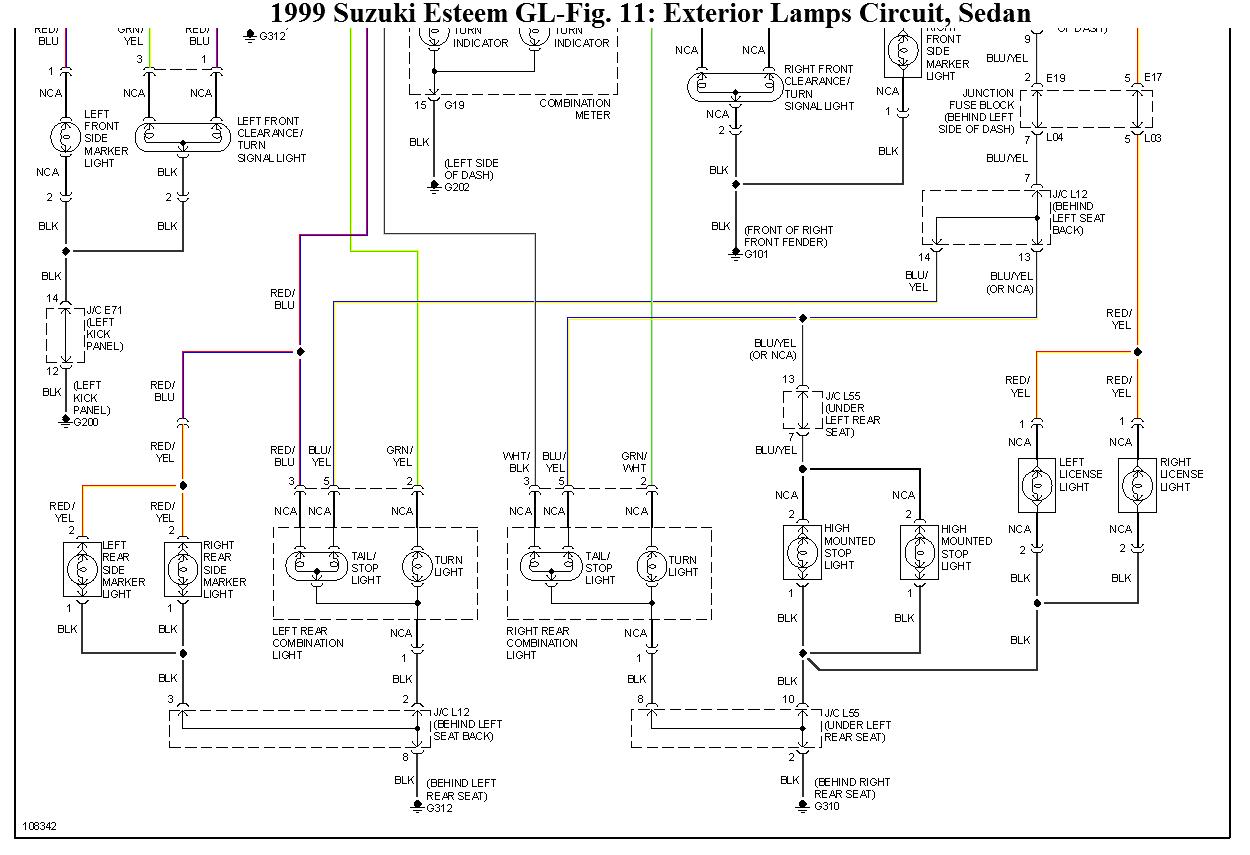

The other 2 diagrams are for the exterior lights. Unplug the taillight relay and test terminal # 4 for continuity to body ground. If continuity exist, you would need to test the light switch. Reinstall relay and unplug the light switch coonnector to test if lights goes off.
Images (Click to enlarge)
Oct 22, 2012 at 5:06 PM
