99 Subaru Head Torque

1999 SUBARU OUTBACK
4 CYL • AWD • AUTOMATIC
Avatar
CENDAKID
  • MEMBER
  • 4 POSTS
What is the head torque on a 99 subaru legacy outback 2.5L , which is the number 1 bank , the right or the left ?
Feb 19, 2011 at 11:14 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
DOHC or SOHC 2.5 liter???????
Feb 19, 2011 at 11:17 PM
Avatar
CENDAKID
  • MEMBER
  • 4 POSTS
DOHC
Feb 19, 2011 at 11:18 PM
Advertisement
Avatar
CENDAKID
  • MEMBER
  • 4 POSTS
dohc 2.5L
Feb 19, 2011 at 11:19 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

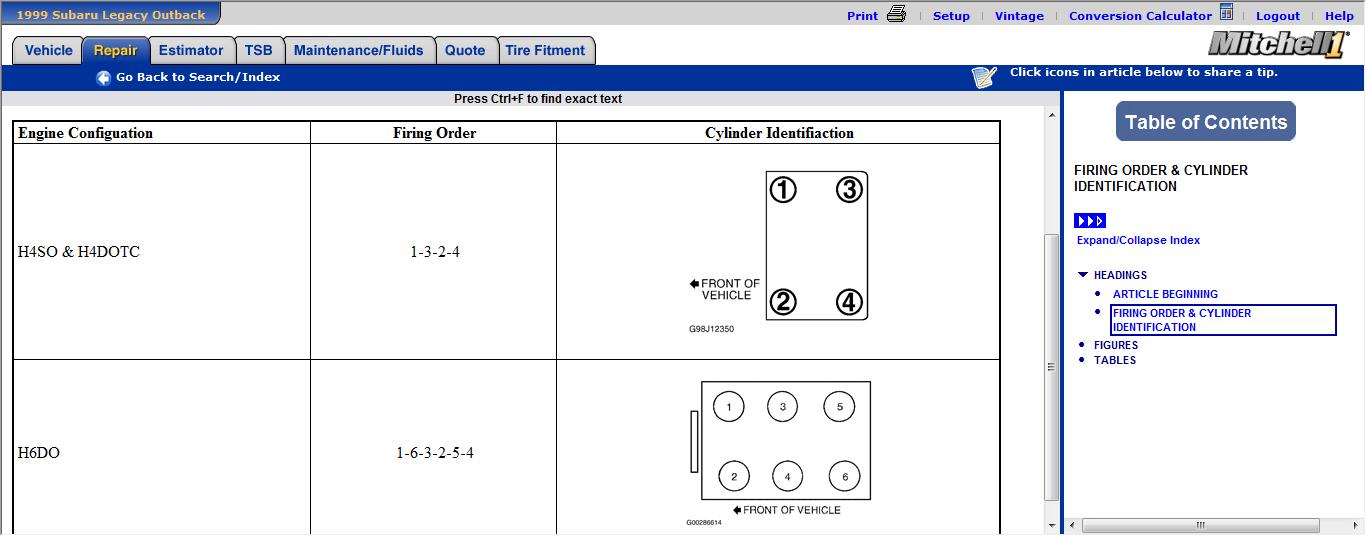

See below:

Image (Click to enlarge)
Attached Media
Feb 19, 2011 at 11:28 PM
Avatar
CENDAKID
  • MEMBER
  • 4 POSTS
I need the head torque specifications . not the firing order. and which bank number one is on , the left or the right
Feb 19, 2011 at 11:32 PM
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS

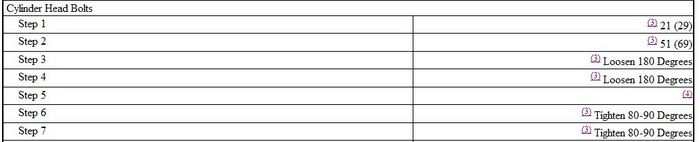

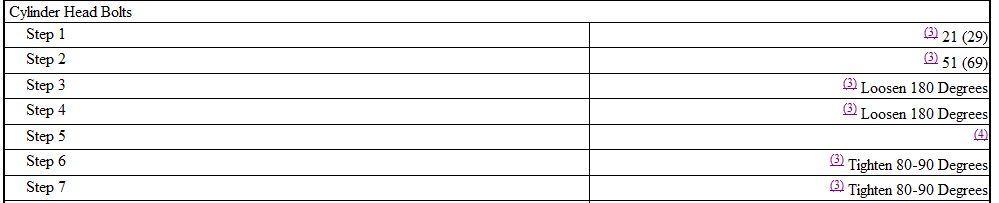

Check pics for details, Nm are in brackets.

mark (mhpautos)
Images (Click to enlarge)
Attached Media
Attached Media
Feb 20, 2011 at 12:06 AM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
I gave you the location of the no.1 piston, bank 1 is always where the no.1 piston located at, so you can identify-next time get your vehicle description together otherwise you won't get an answer- if its not filled accordingly-
Feb 20, 2011 at 12:13 AM
