where is fuel pump relay located

1999 PONTIAC GRAND PRIX
6 CYL • FWD • AUTOMATIC
Avatar
HAVMEURWAY
  • MEMBER
  • 1 POST
where is the fuel pump relay located on this car please
Dec 28, 2010 at 5:38 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
REMOVAL PROCEDURE

Turn the ignition OFF.
Remove the under hood electrical center cover.

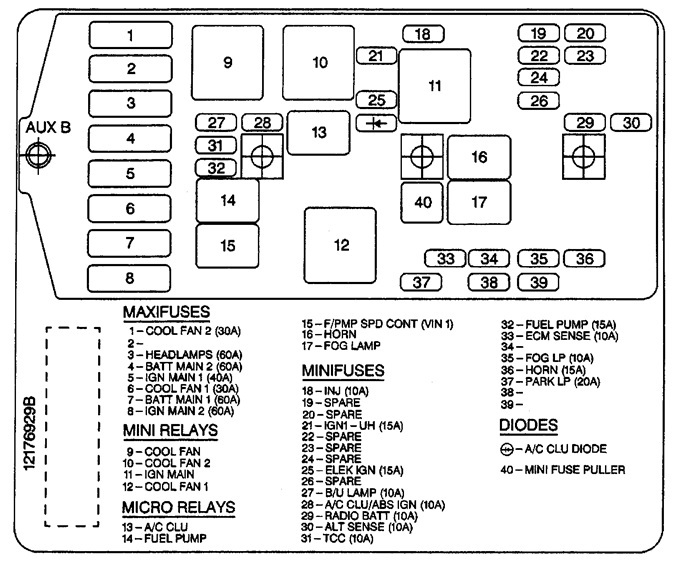

Remove the fuel pump relay (1).

Image (Click to enlarge)
Attached Media
Dec 28, 2010 at 5:43 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Just to add.
Image (Click to enlarge)
Attached Media
Dec 28, 2010 at 5:44 PM
