rocker arm adjustment 4 of 12 rocker arms are loose and have a lot of play in them

1999 OLDSMOBILE ALERO
122,000 MILES • 3.4L • 6 CYL • FWD • AUTOMATIC
Avatar
DUSTYRUN419
  • MEMBER
  • 1 POST
after replacing my head gaskets both sides. I am putting my engine back together. 4 of 12 rocker arms are loose and have a lot of play in them. I have checked to make sure the push rods are in there right place and without turning the engine over they are still loose. I have looked this problem up and found only one answer. so far they are saying that each cylinder has to be adjusted at TDC. not sure if this is correct or not. if it is then can I use the key to turn the engine over or does it have to be manually
Sep 19, 2014 at 10:50 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

Yes, you will need to be at top dead center in order to properly install/torque the rocker arms.
And this need to be done manually, you do not want to crank it by the ignition.

Those bolts need to be torqued at 14 N.m (124 lb. in.) plus 30°.

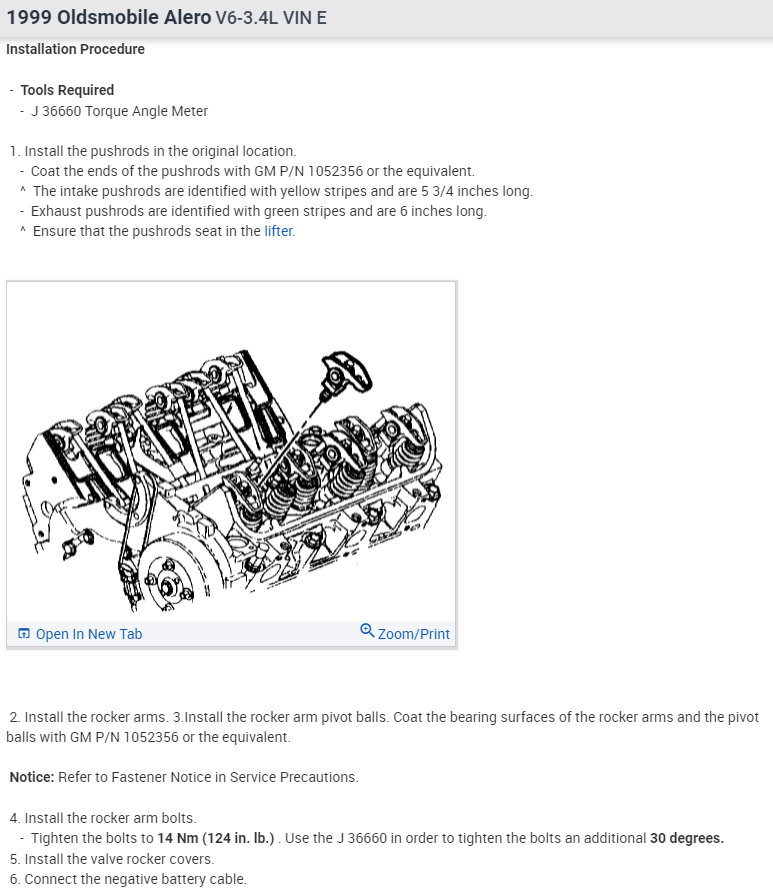

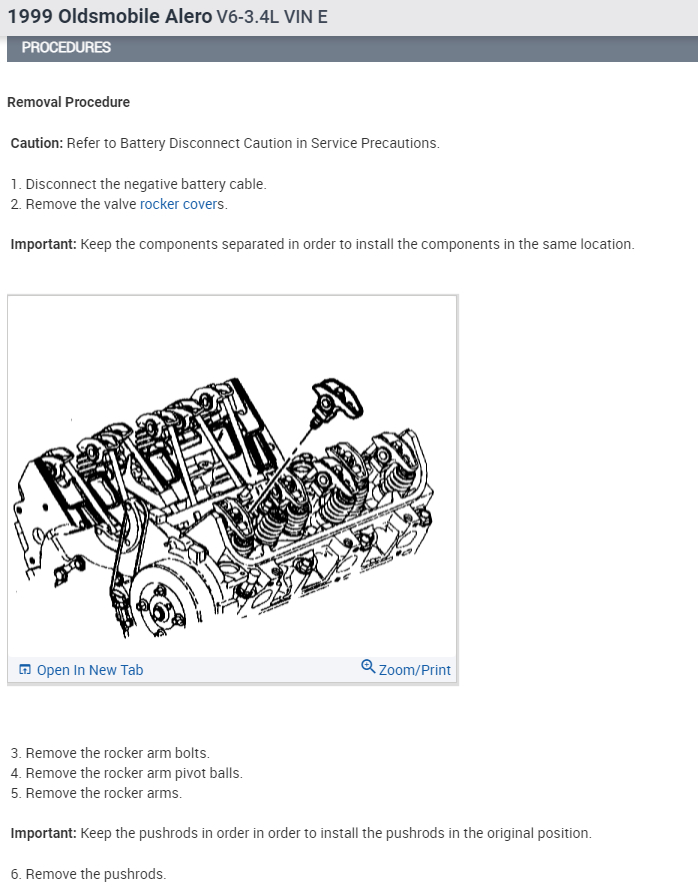

I have attached diagrams for your reference.

Please let me know if you have any questions.
Thank you.

https://www.2carpros.com/articles/how-a-cylinder-head-works
