Vacuum line schematic/diagram

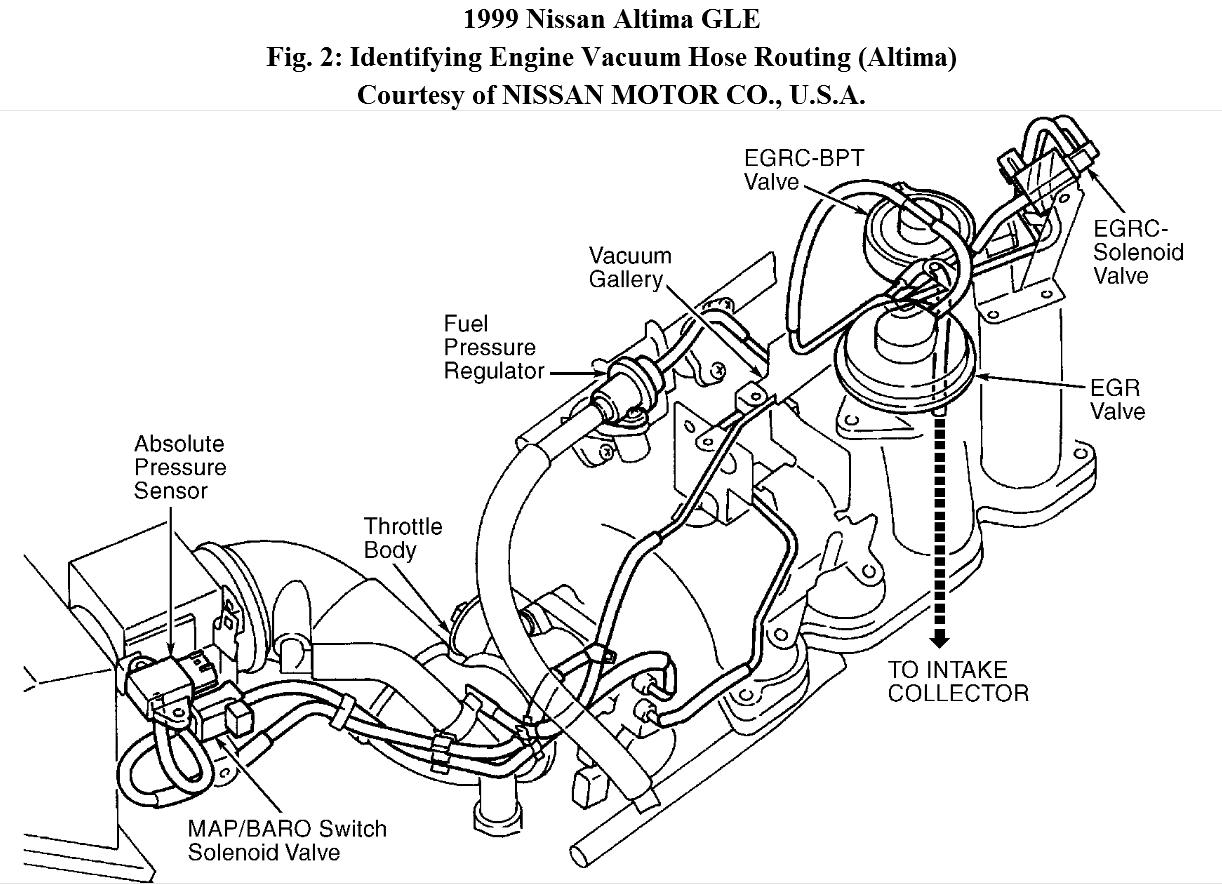

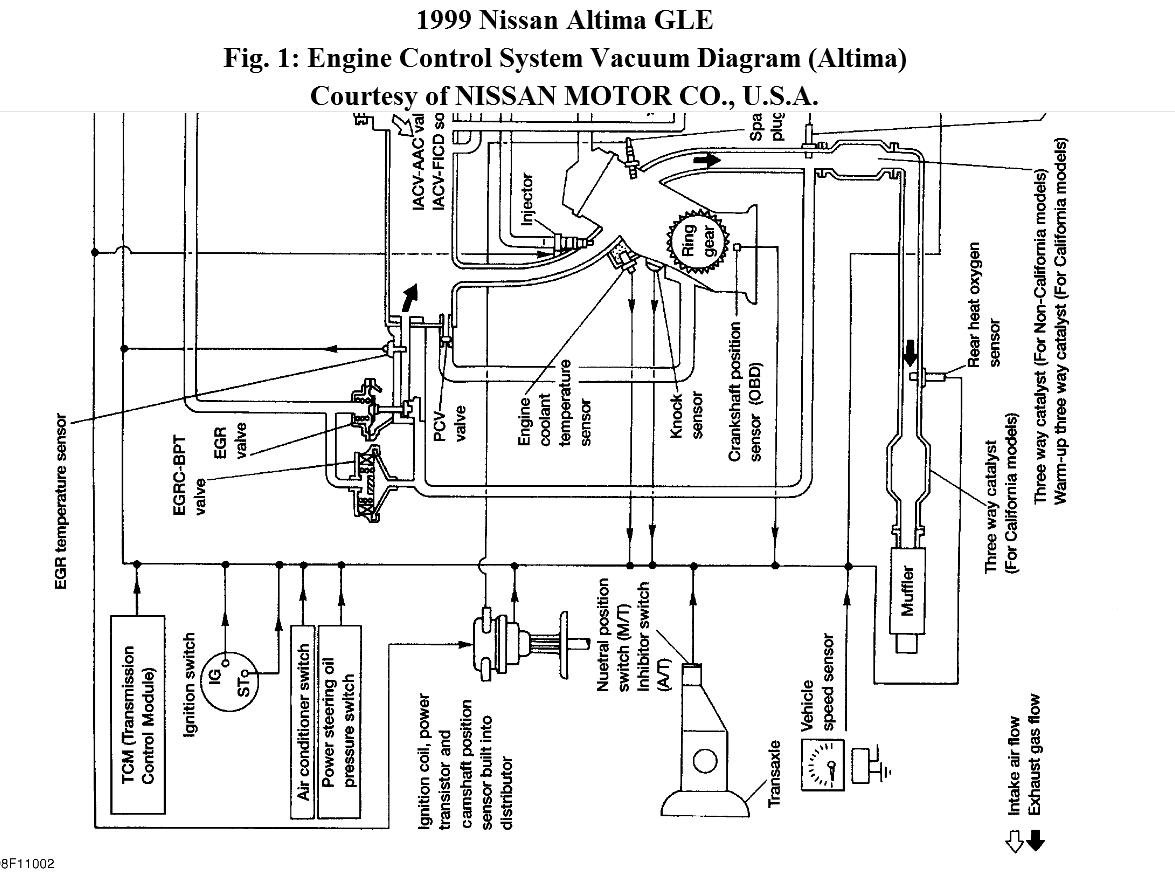

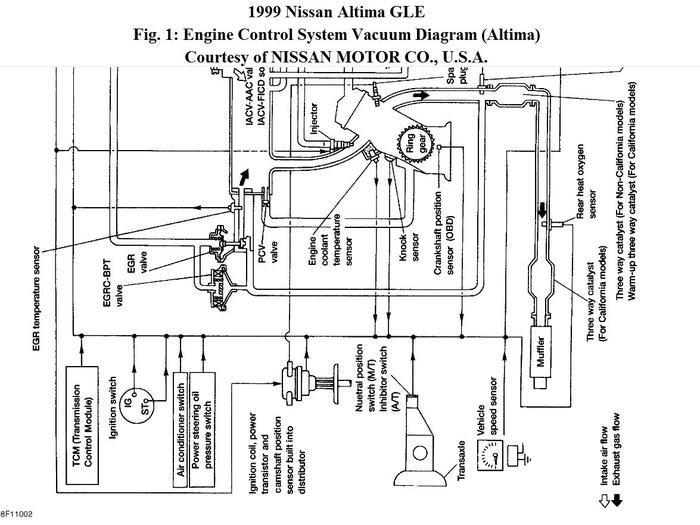

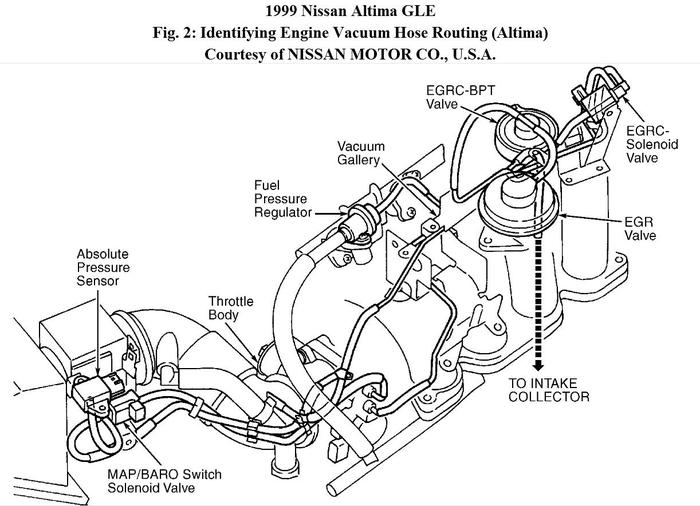

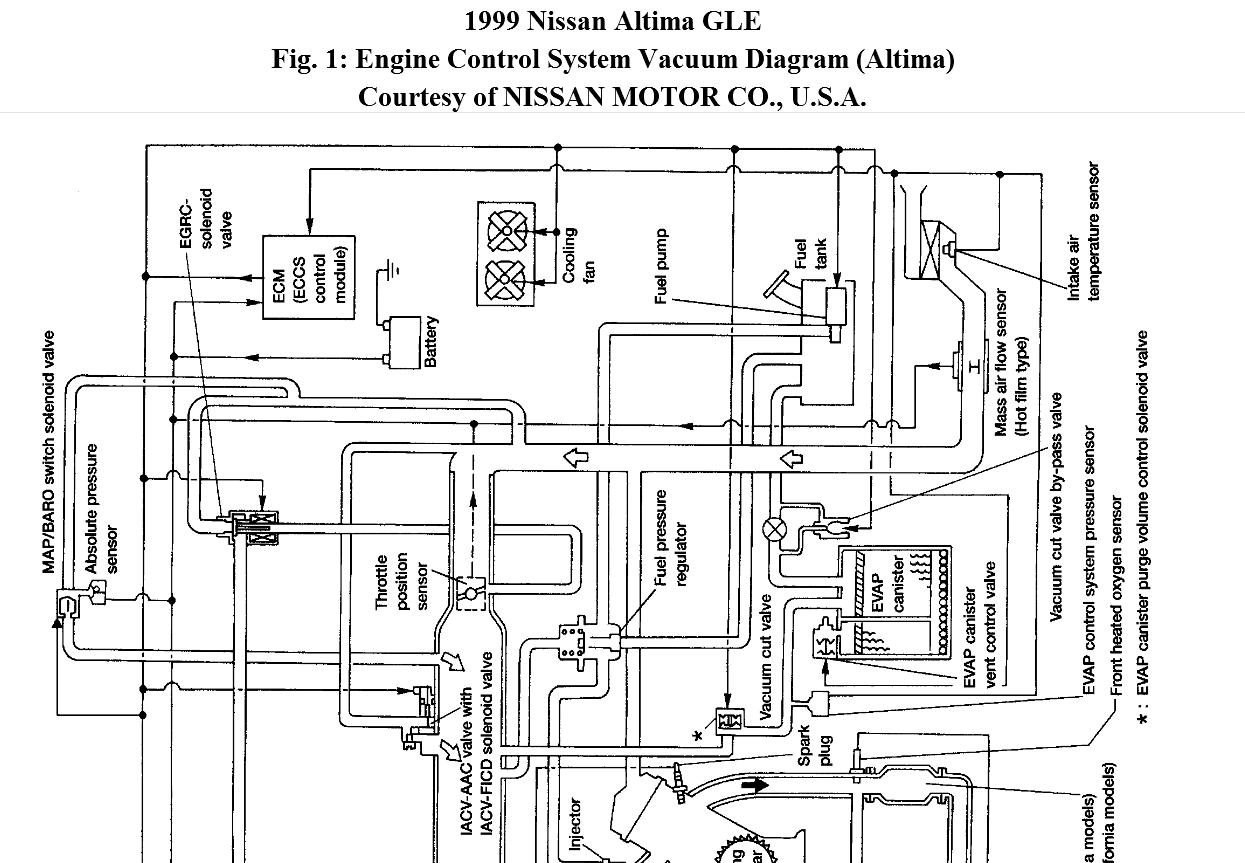

Here are the engine vacuum line diagrams below. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers,

idling rough and we found that a vaccum hose is off somewhere

the vaccum hose will cause the rough idle due to the extra oxygen in the engine.

hello
i just changed the motor in my daughters car.the motor i purchased had most of the vacuum hoses cut off and i am not totally sure if i got them in the correct places.i have one that comes off the side of the throttle body that i can't find a spot to connect it to.where do i get a diagram? hope u can help

I am re-building a 1998 Nissan altima 2.4 motor. Someone put a crank kit in it and set the timing wrong (interference engine)... Need I say more. He was then fired and I was called to fix the car. ( lucky me) the man prior to me used no gaskets only really thick silicone. Half the bolts were missing, there were washers added to bolts that were too long. Nothing was cleaned prior to re-install. I have a mess on my hands. It has been just over a month since I took the car down, I finally got the head back and all the gaskets to fix it right. So the problem I have is I don't know what I took off a moth ago was right and what was wrong. Any wiring diagrams, vacuum diagrams, timing diagrams, torque specs. Anything would help. And to all you do it your selfers don't ever take this project I am an experienced ASE certified mechanic and this motor is a night mare.

There are too much information so posting here is not the ideal way. Let ma have an email so I can send the pdf files to you on whatever I can get my hands on.

That would be amazing thanks!!!!
[email protected]

Files on the way. Hope it turns out good. Let me know if you need anything else.

can a mechanic help me w/advice on a 94 nissan altima? I think I need to replace vacuum lines, but would like to go over the symtoms of the car first w/a mechanic

You need to state the symptoms and what you want to know within your question. We are not getting notifications from additional responses right now so it might be a good idea to start over in another question.

I have a 2000 Nissan Altima. Live in CA. My question is...The car has a rough idle, also when in drive at stop lights, the car bounces rpms. 1000 rpms to 600rpms and wants to die when hitting 600. I am very capable of working on the car myself but need some guidance. When looking around I found a hose that was not connected to anything. Need help connecting it back. Found the hose below the air filter compartment. Any help would be greatly appreciated.

Hi Stacy

The hose you found off can be a vacuum line which will cause the problem you are having. Can you please shoot a quick video (or image) with your phone so we see the hose, that would be great. You can upload it here with your response.

Please get back to us. Cheers, Ken
