location of cooling fan relay

1999 MITSUBISHI ECLIPSE
137,000 MILES
Avatar
SZILKE
  • MEMBER
  • 1 POST
My 1999 Mitsubishi Eclipse GS has suddenly developed a problem. Got home from work & notice temp a little higher then normal. Discovered that the fan is not turning on at all. Radiator is good & so is the hose. Wanted to check the fan relay switch but can't find it. Where is it located on this car?
Sep 11, 2013 at 6:31 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

Here is a guide to help you test the cooling fan relay once you find it.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

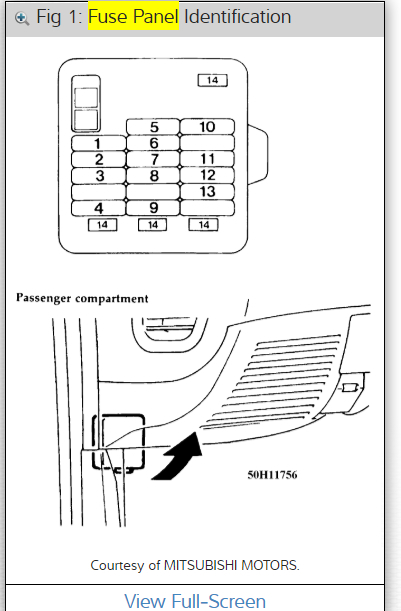

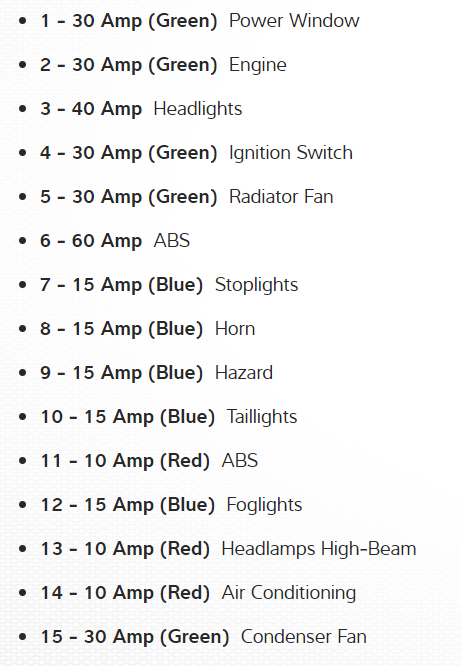

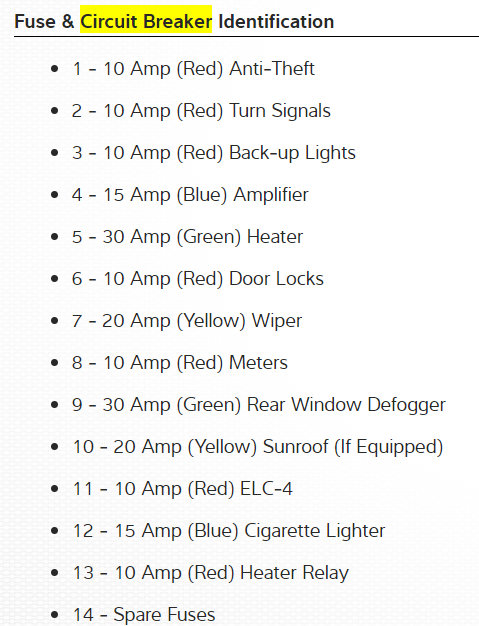

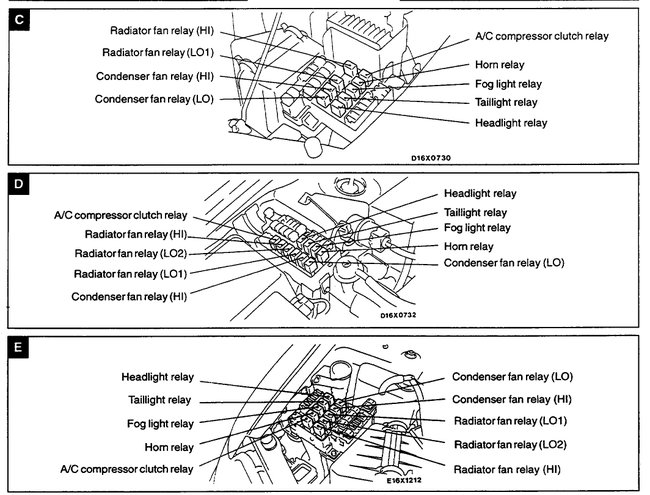

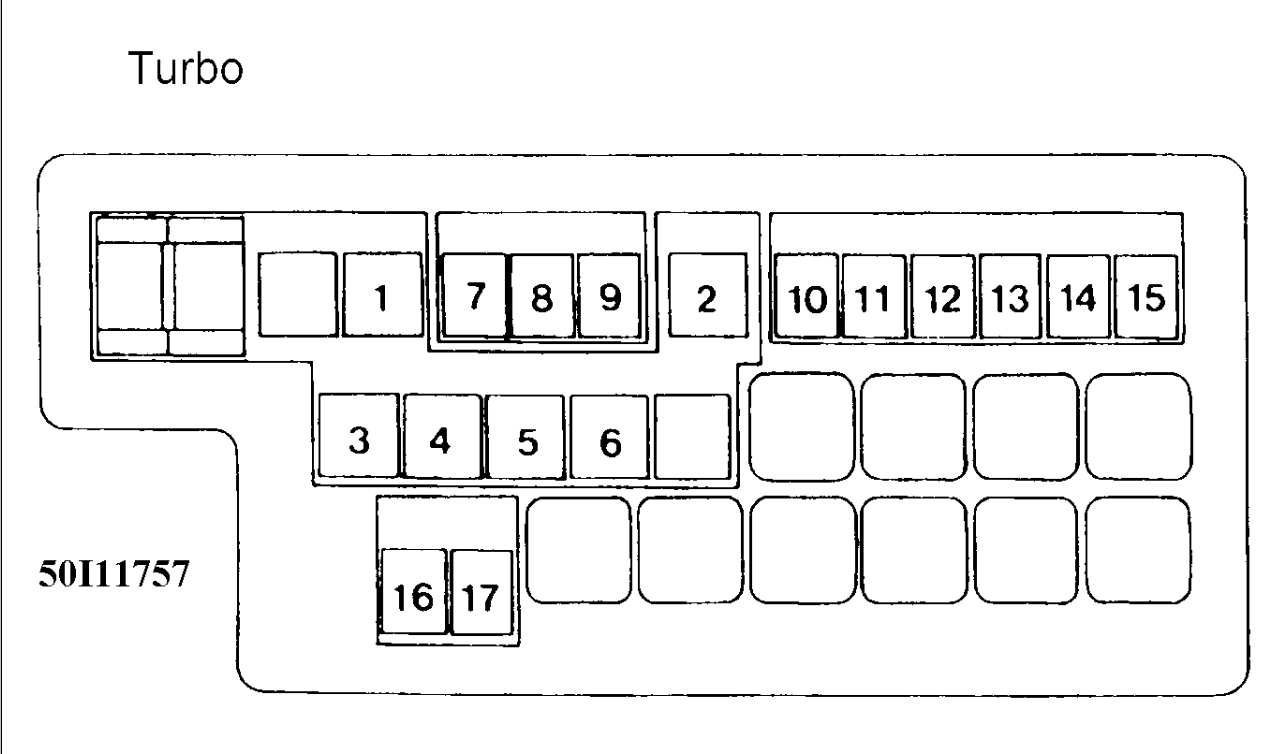

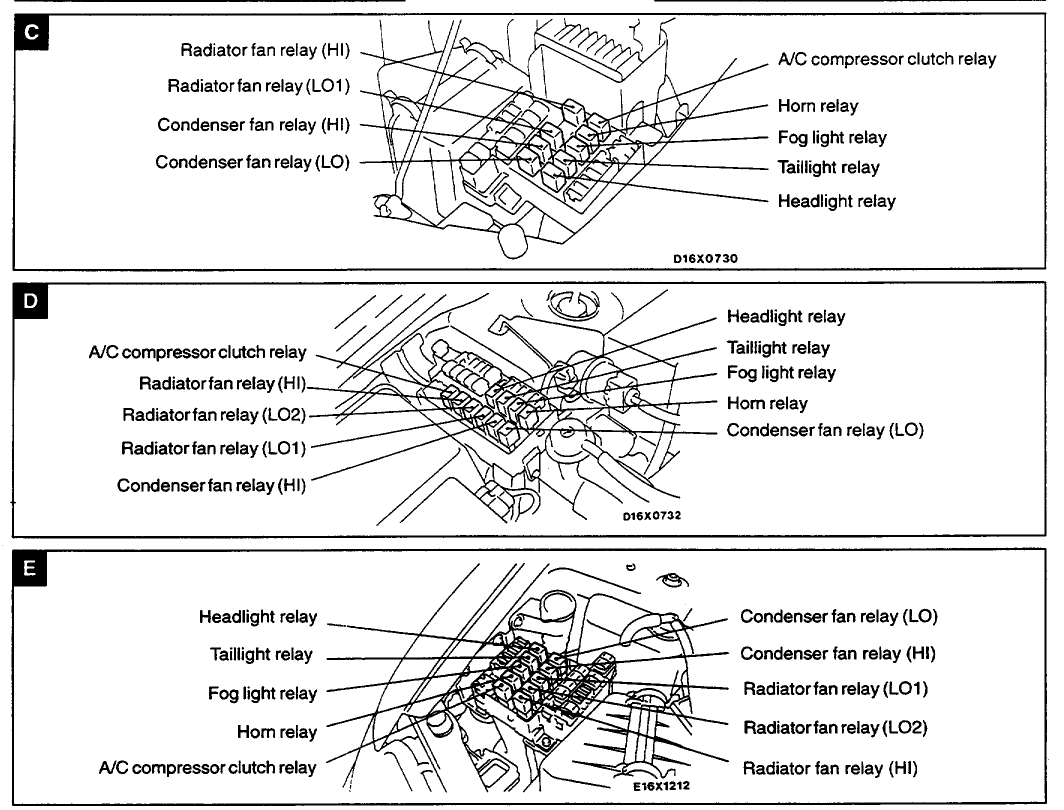

Here are the locations of the relay (below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Feb 12, 2018 at 4:21 PM
