All relays and fuse are working,fuel pump is operating,the car cranks but can't start. Engine..6G74,..Model GF-K99W GYPC
Jan 10, 2012 at 12:53 PM
Multi-port fuel injection relay location
1999 MITSUBISHI CHALLENGER
KIPANSDIDU
- MEMBER
- 2 POSTS
- FOLLOW
Advertisement

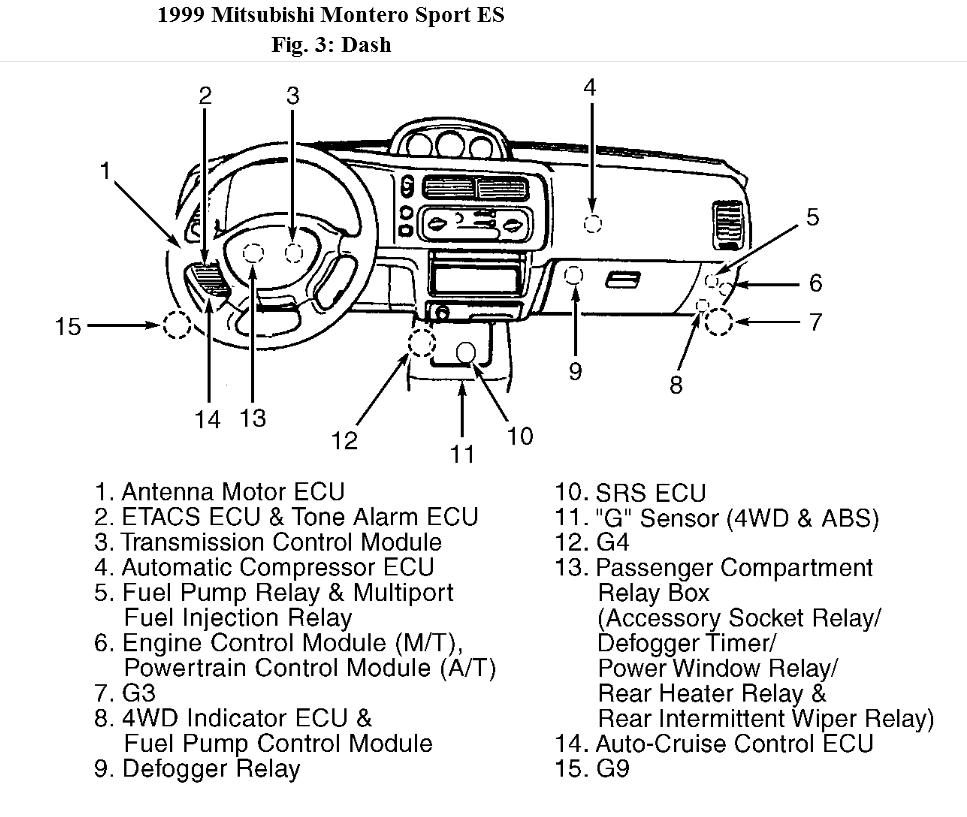

Your vehicle is not listed in our database as it is not US based however I have here the wiring schematic for the Montero which what it is known as in the US.
the relay should be known as Multi-port fuel injection relay located behind right kick-relay ( check left kick panel if not found at right)
the relay should be known as Multi-port fuel injection relay located behind right kick-relay ( check left kick panel if not found at right)
Image (Click to enlarge)
Jan 10, 2012 at 5:08 PM
ok thanks I'll do the check and come back to you.
Jan 10, 2012 at 11:09 PM
