where is the location of the fuel pump driver module

1999 MERCURY COUGAR
175,000 MILES
Avatar
RW15F
  • MEMBER
  • 1 POST
Im trying to locate the fuel pump driver module in my car. ive troublshot the whole fuel system except for this module. I checked where it should be on the 2000 model but no luck. Ive also tried calling ford but they dont know either.
Jun 13, 2012 at 6:19 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hello,

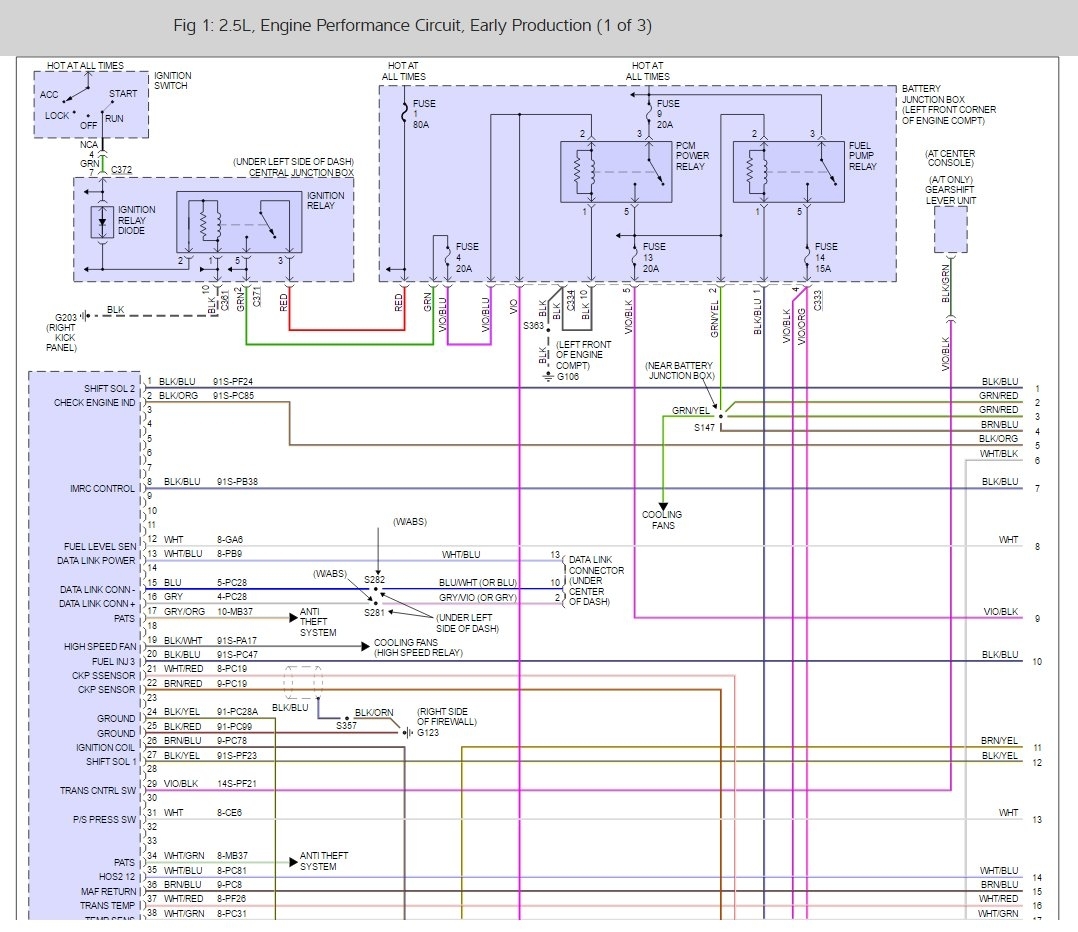

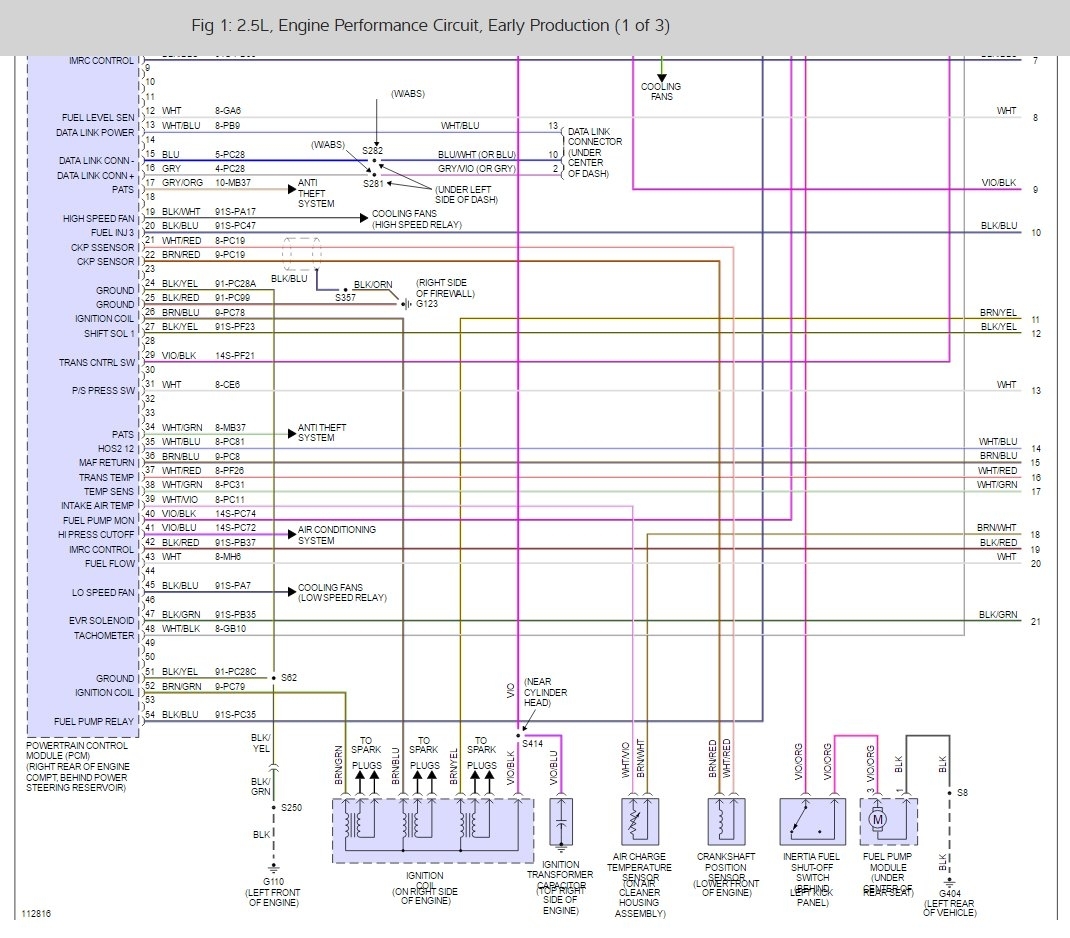

There is no fuel pump driving module just a relay here is a wiring diagram (BELOW) and a guide to help you test it.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit


Please run this test and get back to us so we can continue helping you.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
May 26, 2017 at 9:48 PM
Avatar
BRUCE1000
  • MEMBER
  • 1 POST
Engine Performance problem
2000 Mercury Cougar 6 cyl Two Wheel Drive Automatic 86000 miles

WHERE IS THE FUEL PUMP LOCATED. OR THE RELAY SWITCH
May 26, 2017 at 9:49 PM (Merged)
Advertisement
Avatar
BLUELIGHTNIN6
  • CERTIFIED EXPERT
  • 16,542 POSTS
fuel pump itself is in the fuel tank. fuel pump relay is at left front corner of engine compartment, in the battery junction box. also check the fuses and the fuel cut off (inertia) switch, located behind the left kick panel.
May 26, 2017 at 9:49 PM (Merged)
Avatar
FLOPPYTAKE2
  • MEMBER
  • 1 POST
Electrical problem
1991 Mercury Cougar 6 cyl Two Wheel Drive Automatic 40500 miles

In my trunk is located the fuel pump shut off switch, along with a red reset button. There is a ticking sound coming from the reset button and it is depressed as in I can not push it down to reset the system. Now the manual says I can have other mechanical problems. Could this be as simple as replacing the switch? The ticking is killing my battery at which if the car sits for hours it needs to be jumped. Once jumped it starts and runs perfectly, no odd idling or rpm jumps. The fuel pump was replaced at 15000 miles per service records, although I just bought the vehicle a few days ago.
May 26, 2017 at 9:49 PM (Merged)
Avatar
JAMES W.
  • CERTIFIED EXPERT
  • 2,394 POSTS
Try pulling up on the red buttom. This switch is the "enertia switch" that's supposed to shut the fuel pump off in the event of a crash. If you can't pull up on the red button, try removing the fuel pump relay to see if the clicking stops. If it stops and starts clicking again when you plug the relay back in, replace the relay.
May 26, 2017 at 9:49 PM (Merged)
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS

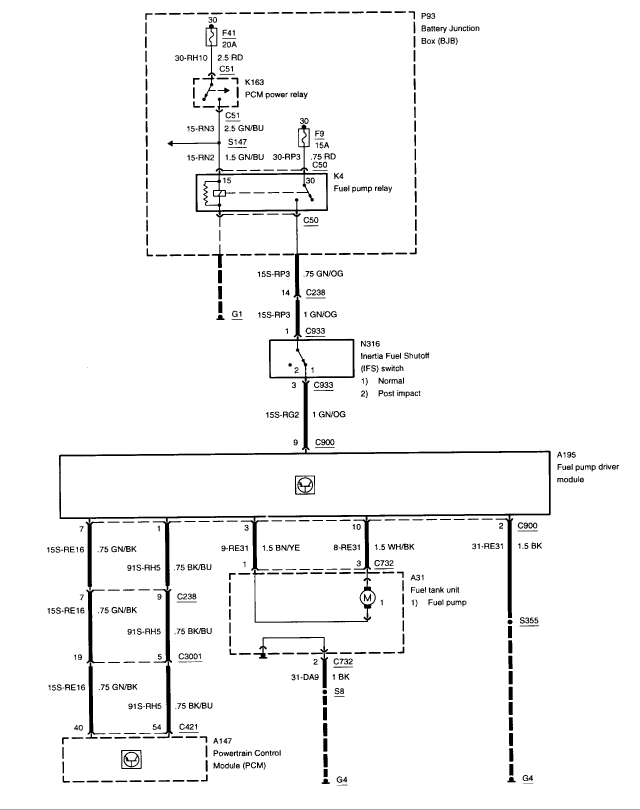

The wiring diagram supplied only applies to vehicle built before May 24, 1999. If it was built after that date, it does indeed have a Fuel Pump Driver module in addition to the relay, but that was only used for a couple months in that model year. You can tell which system you have by checking for a fuel rail pressure sensor. If it has one, it also has a FPDM. I suspect yours does not.

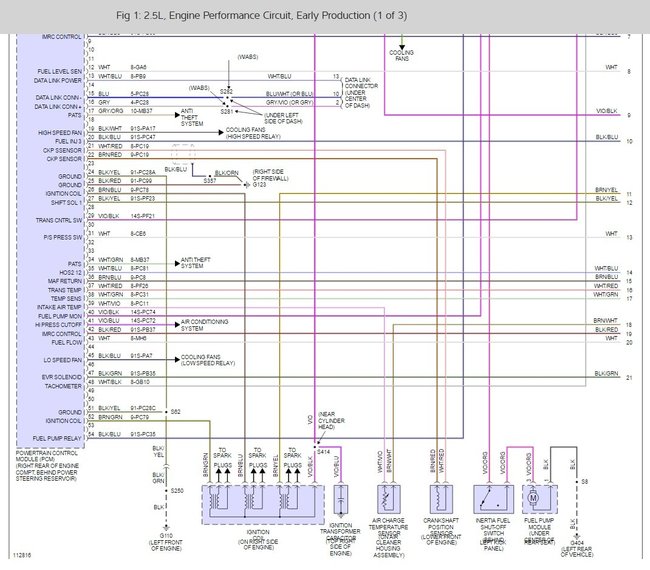

Image (Click to enlarge)
Attached Media
May 27, 2017 at 5:46 AM
