I need to know how to get to the blend door?

1999 MERCEDES BENZ ML320
170,600 MILES • 3.2L • 6 CYL • AWD • AUTOMATIC
Avatar
SCOLE
  • MEMBER
  • 1 POST
I need to know how to get to the blend door on my suv. It will not get warm on the inside of the car
Nov 9, 2014 at 6:16 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

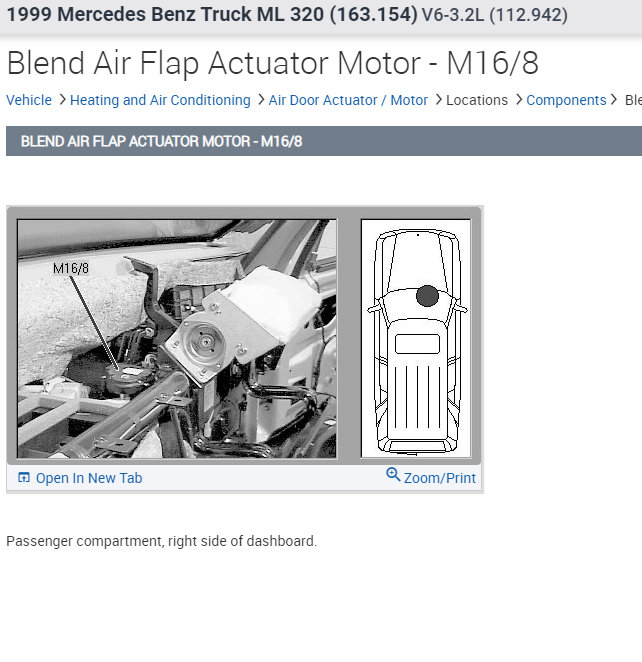

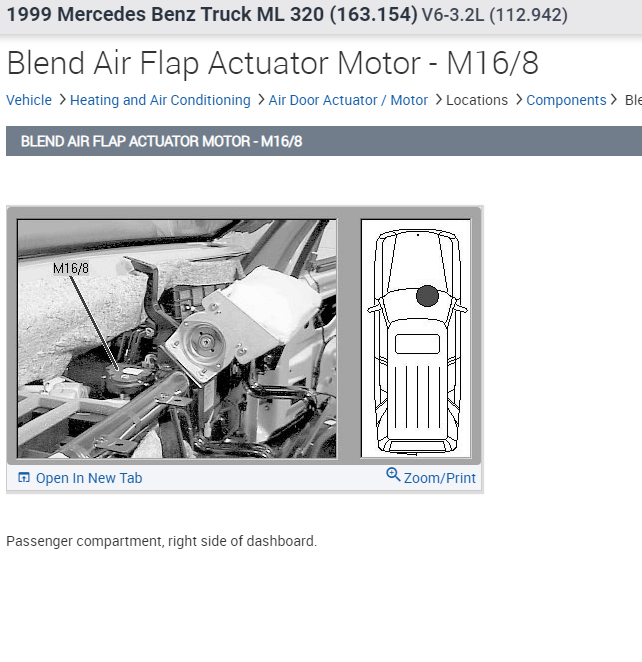

The blend door actuator is located behind the right side of the dash.
In order to access that actuator, you will have to remove the dash assembly.
Which will require you to remove several bolts and fasteners. Keep in mind to be careful not to damage those clips or the dash trims.

https://www.2carpros.com/articles/replace-blend-door-motor

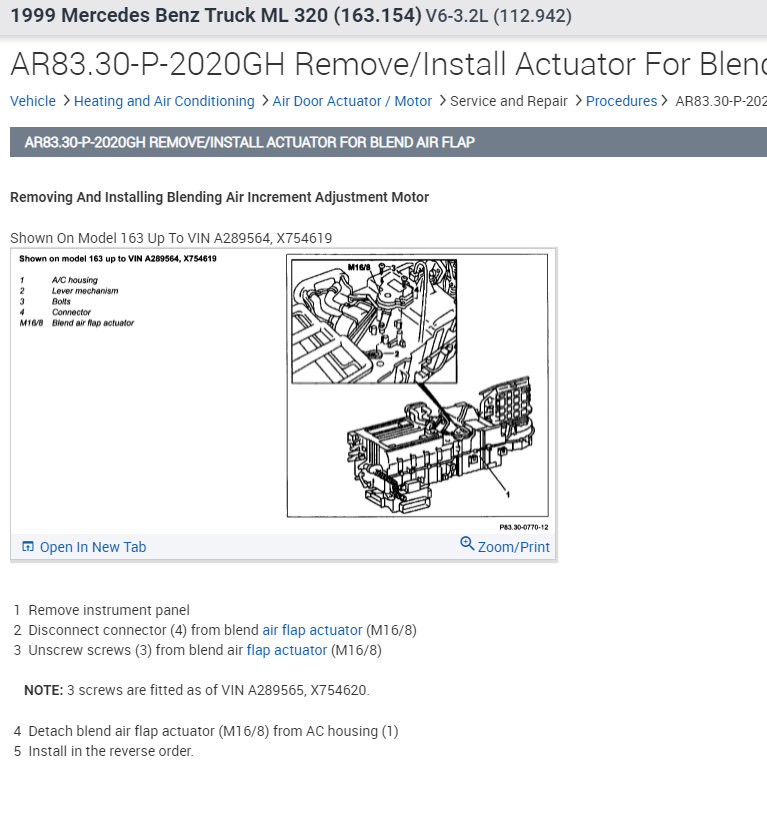

I have attached diagrams for your reference.

Please let me know if you have any questions.
Thank you.
Jan 10, 2022 at 10:35 PM
