1999 Lincoln Continental Shifter is stuck in park.

1999 LINCOLN CONTINENTAL
160,000 MILES • 4.2L • V8 • FWD • AUTOMATIC
Avatar
JETRX
  • MEMBER
  • 2 POSTS
Car starts fine. Will not shift out of park. Brake lights are working. Can't find a good parts breakdown/maintenance reference to help troubleshoot or find an override. Where is the locking solenoid located? Does it have an override?
Aug 12, 2014 at 12:46 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

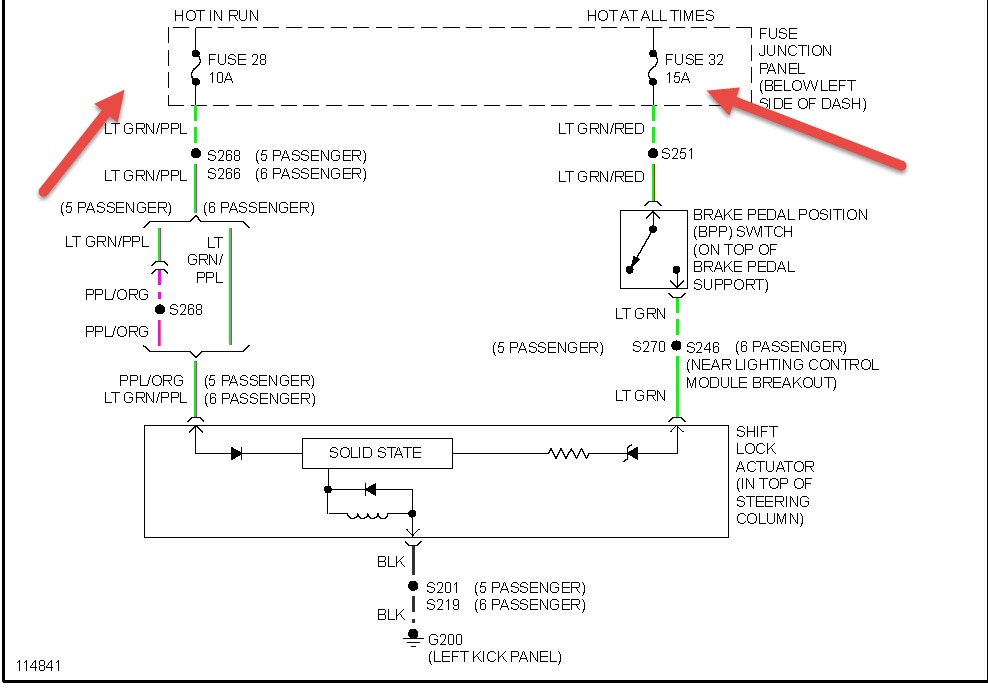

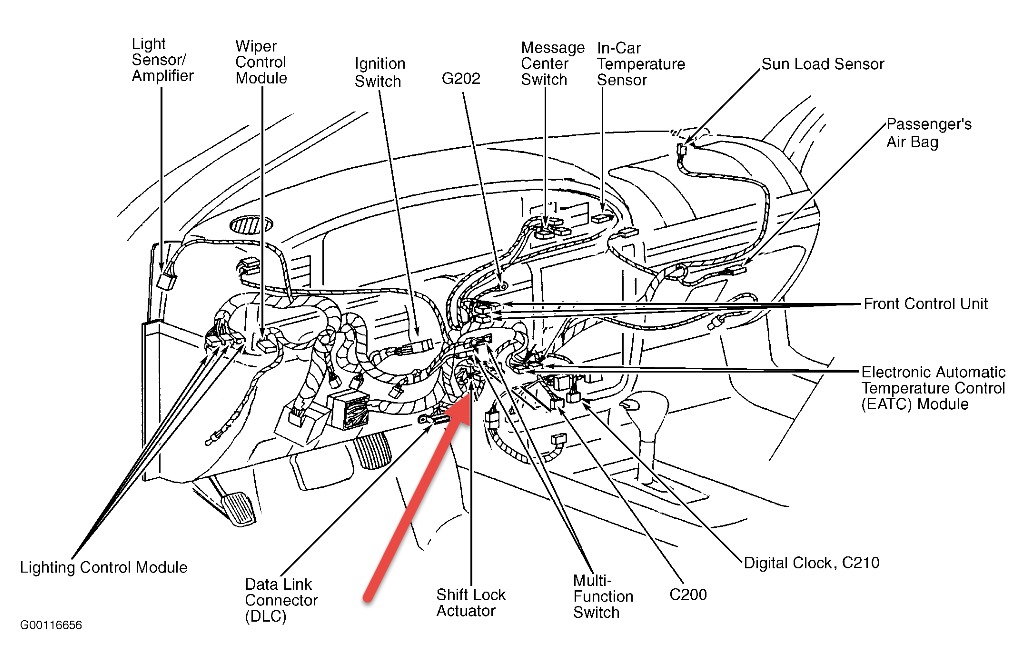

check fuses too see pics
Images (Click to enlarge)
Attached Media
Attached Media
Aug 13, 2014 at 7:21 AM
Avatar
JETRX
  • MEMBER
  • 2 POSTS
Thanks for the illustration and wiring diagram. Plan to do a bit more troubleshooting (check for good ground to actuator) however, at this point, looks like an actuator R&R might be on the horizon. Looks like instrument cluster will have to be pulled. Hope that's all. Hard to find anything other than generic "Chilton-esque" data. Suppose it might be time to drop $180 on Ebay for the factory service manuals.
Aug 13, 2014 at 12:23 PM
