Interior fuse box

1999 LINCOLN CONTINENTAL
107,000 MILES
Avatar
PINKY2007
  • MEMBER
  • 2 POSTS
I have no fuse panel cover. My lighter and charge port under the arm rest is not working . I do not know what fuse is for what. I have searched and searched online. I asked autozone and they have no clue. I need something to tell me what is what so that I can take care of these issues my self. I do not want to take and replace all fuses and some of the fuse ports are empty.
Sep 7, 2013 at 12:08 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

Here is a guide to help you test the fuses with the fuse location and identification below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

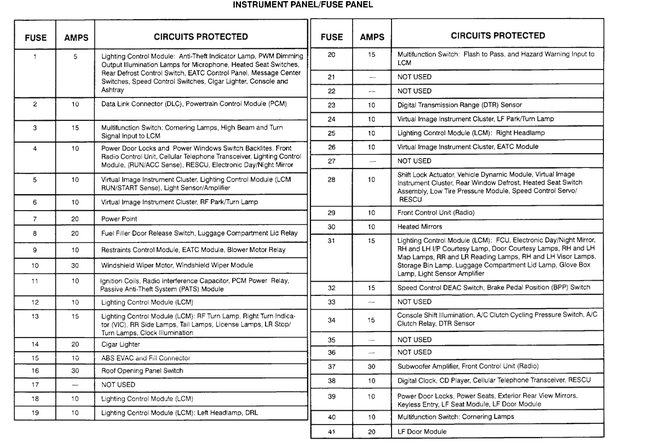

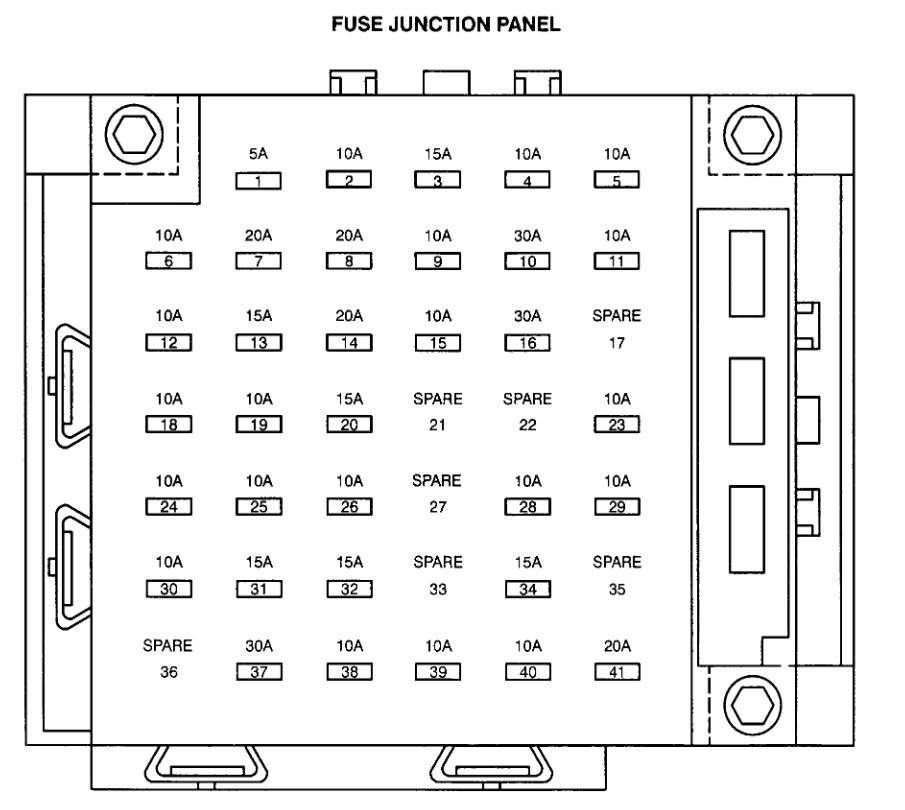

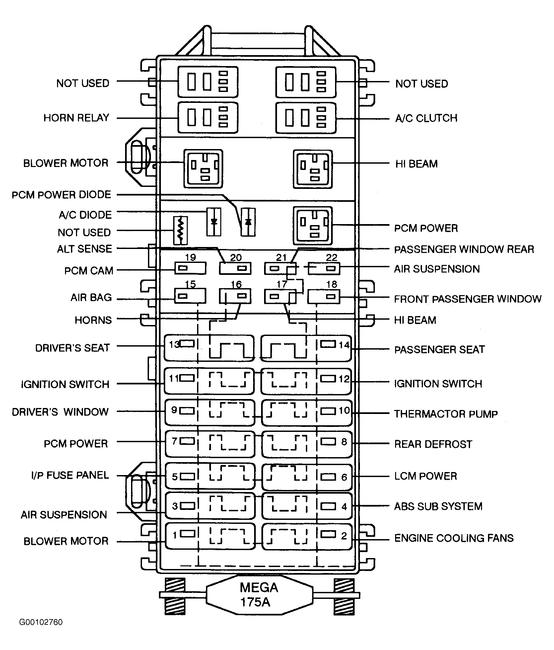

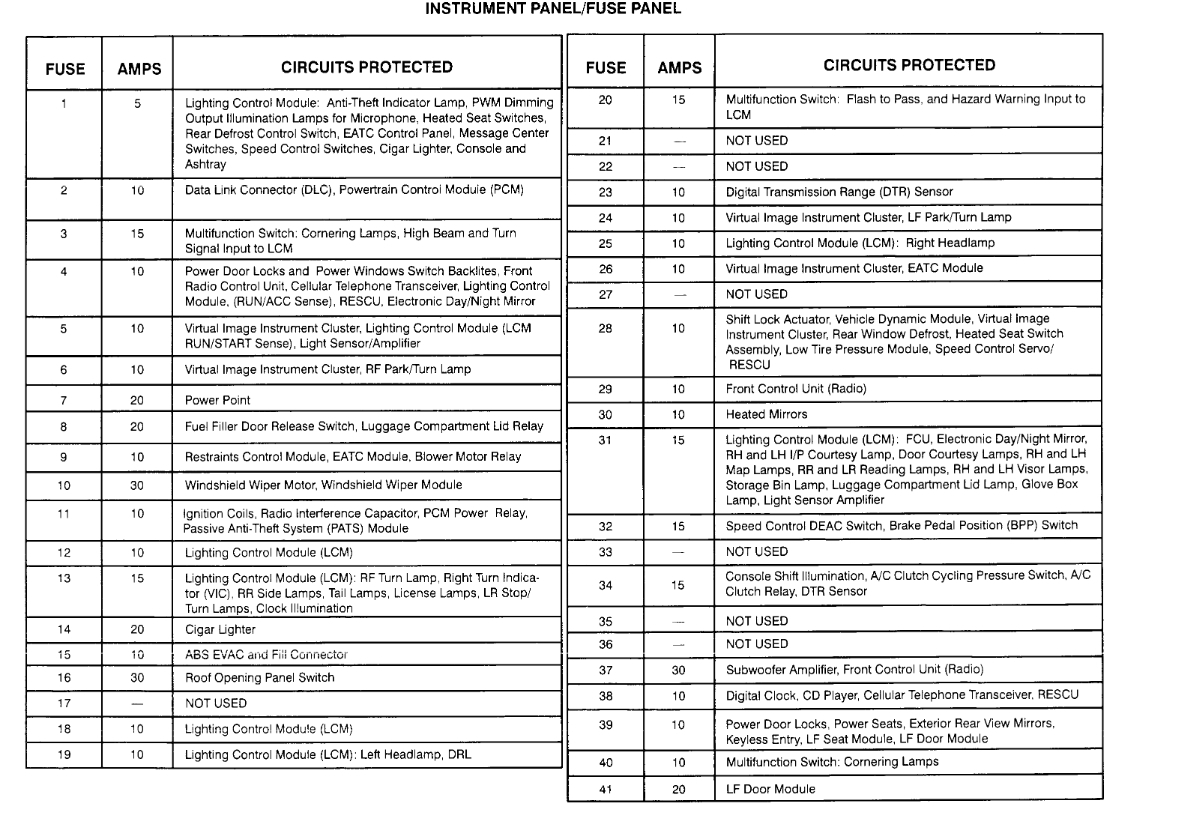

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Sep 7, 2013 at 1:26 PM
Avatar
PINKY2007
  • MEMBER
  • 2 POSTS
I checked all my fuses n they are good. what else could be the problem as to why the lighter n console plug dont work?
Sep 7, 2013 at 2:48 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
broken wire, burnt out lighter, short in system
Sep 7, 2013 at 3:26 PM
Avatar
SNOSAINT
  • MEMBER
  • 76 POSTS
I need a diagram and guide for the underhood fuse box.
Jun 21, 2019 at 3:19 PM (Merged)
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS

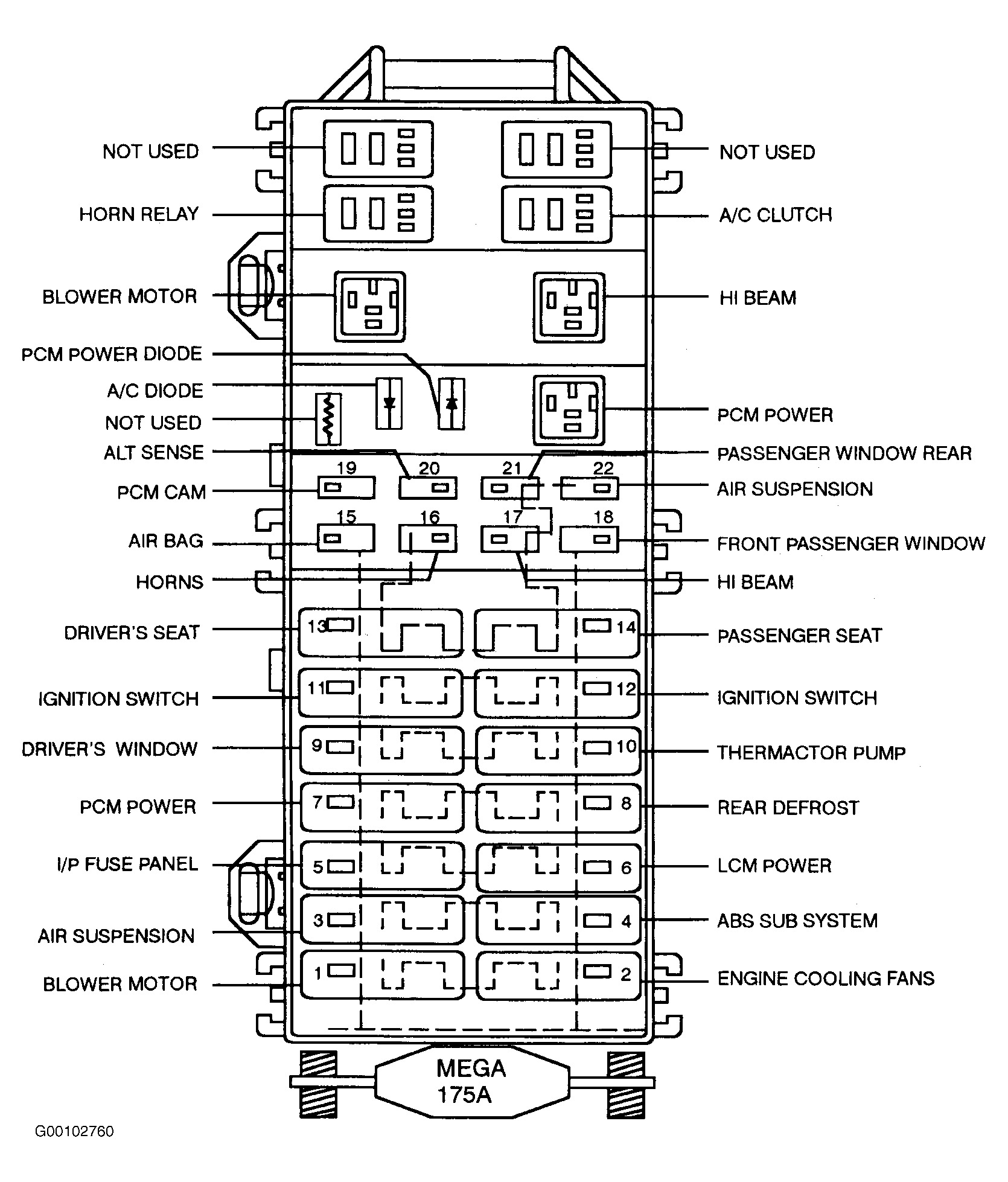

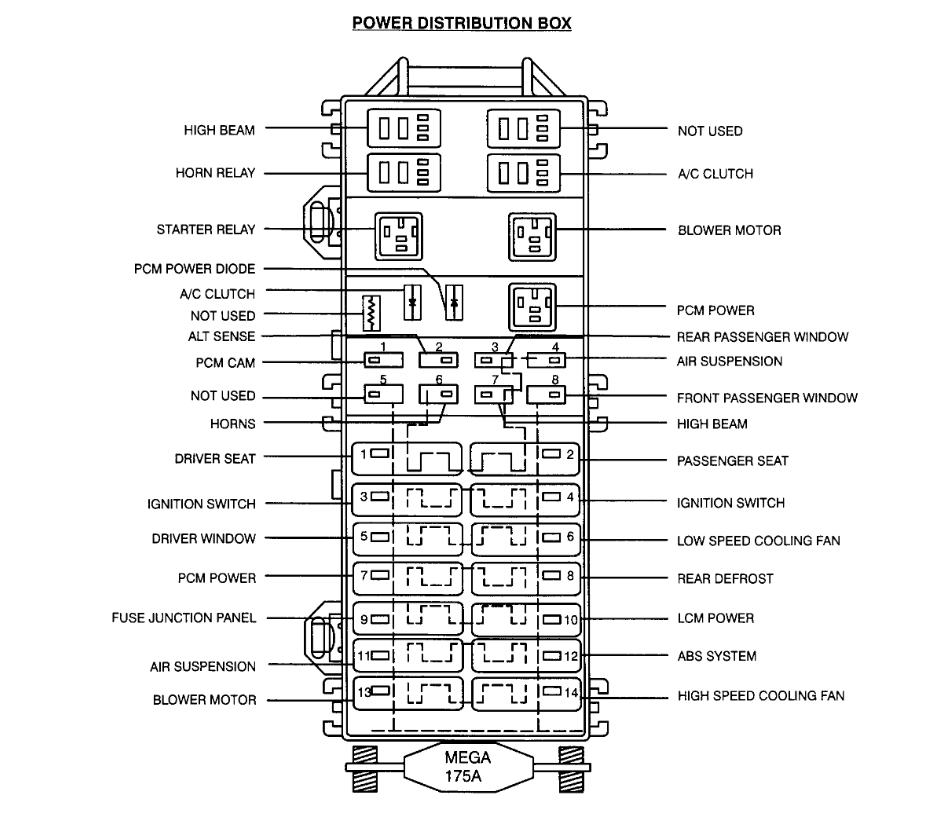

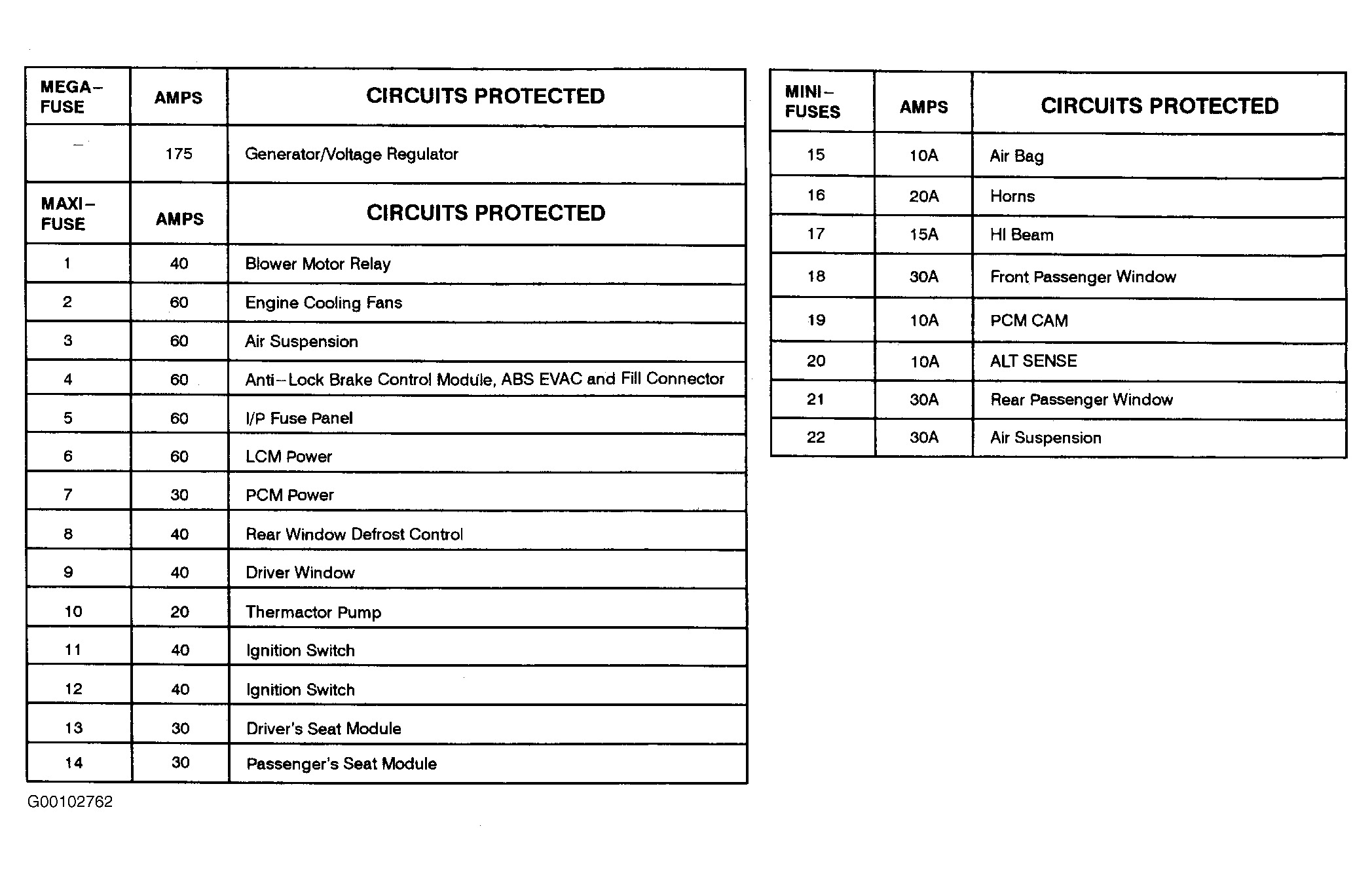

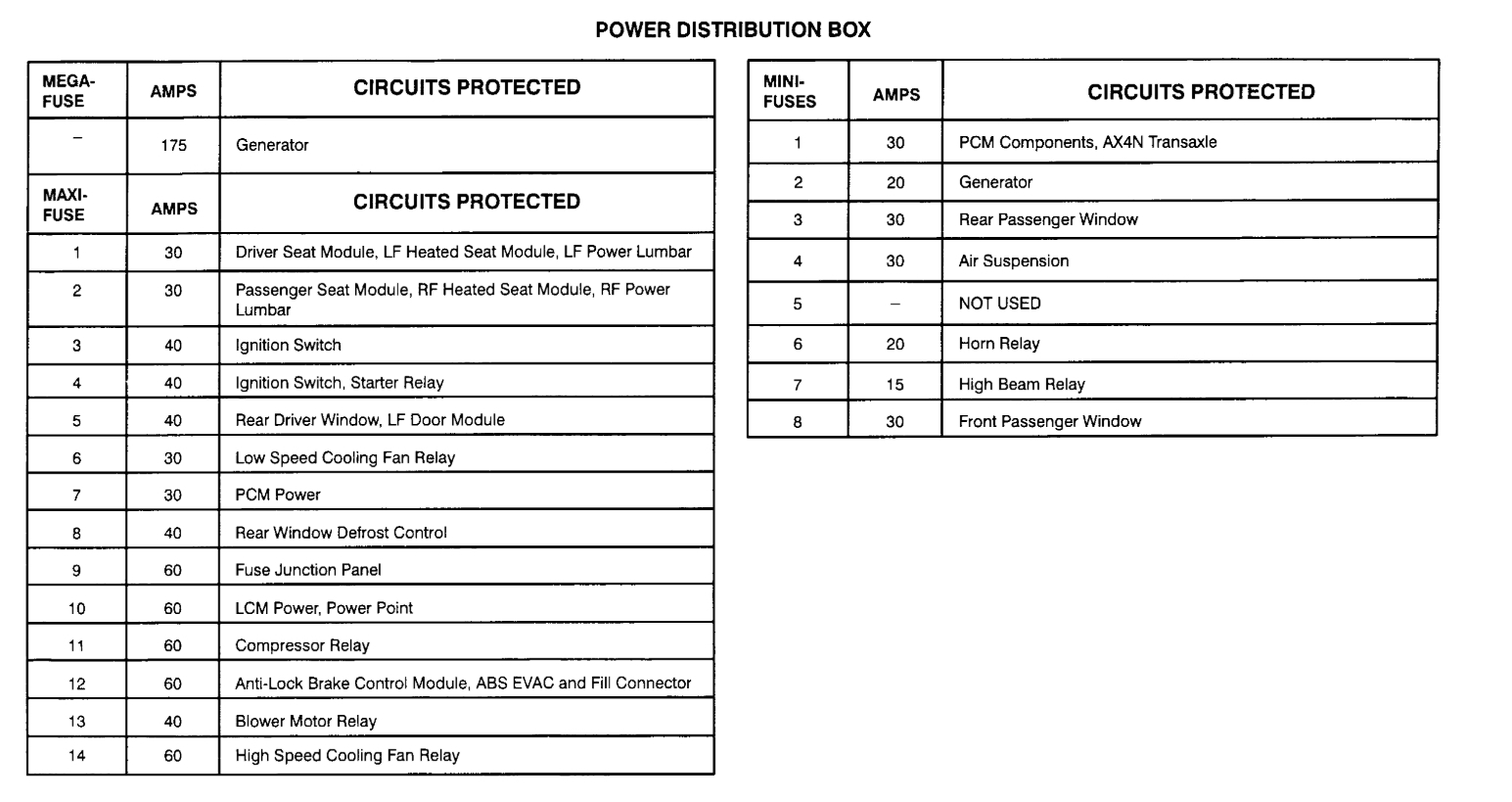

Here you go!
Images (Click to enlarge)
Attached Media
Attached Media
Jun 21, 2019 at 3:20 PM (Merged)
Avatar
SNOSAINT
  • MEMBER
  • 76 POSTS
that was great thanks. I have two of these cars, 1 manual. My son has the other car 300 miles away so i gave the manual to him. My car has twice the miles and i am just trying to keep it alive for 1 more year when i will be done commuting to work. Then it will be a parts donor until it is scrapped.
Jun 21, 2019 at 3:20 PM (Merged)
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS
These cars are great! let me know if you need anything else.
Jun 21, 2019 at 3:20 PM (Merged)
Avatar
SNOSAINT
  • MEMBER
  • 76 POSTS
I had an really old bronko that had been built for off road duty. 1/4 plate in for the floors. Was a lot of fun, but at 59, i like my expedition.

Right now i am struggling with fixing the air ride on my 97 linc.
Jun 21, 2019 at 3:20 PM (Merged)
Avatar
SNOSAINT
  • MEMBER
  • 76 POSTS
Blown fuse under hood had nothing to do with air ride. I am waiting for a new set of air springs to arrive. I will let you know.
Jun 21, 2019 at 3:20 PM (Merged)
