No power to headlight switch

1999 JEEP CHEROKEE
177,000 MILES • 4.0L • 6 CYL • AUTOMATIC
Avatar
CHAD DOYLE
  • MEMBER
  • 2 POSTS
So i jump out the ocean and notice my headlight switch doesn't work. i have brake lights working; but no dash, dome, or head lights or fogs. i checked all fuses they are all good . replaced the switch for the knob. Still nothing. I tested the switch plug in and only have ground. any clues? Vehicle listed above is the Sport model.
Nov 13, 2019 at 8:34 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

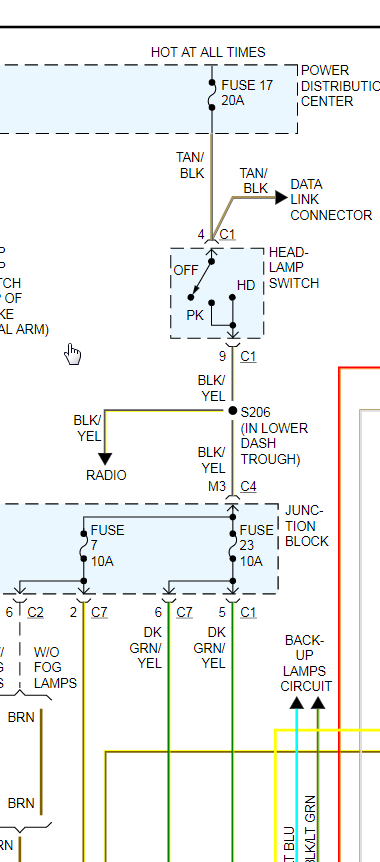

Okay. If you pull the switch out and measure voltage on the Tan and Black wire you should have 12 volts. What do you have? If you have 12 volts then jump pin 4 to pin 9 and see if the lights come on. If they don't then the switch and wiring to the switch are fine and your issue is further down the line.

Let me know what you find with this and we can go from there. Thanks
Image (Click to enlarge)
Attached Media
Nov 14, 2019 at 4:07 PM
Avatar
CHAD DOYLE
  • MEMBER
  • 2 POSTS
Okay, i will try tomorrow . thanks !
Nov 14, 2019 at 9:02 PM
