window wiring diagram?

1999 ISUZU TROOPER
19,950 MILES
Avatar
EMMERS09
  • MEMBER
  • 1 POST
All electronics work such as door locks, windshield wipers, signal lights, power mirrors, and all dash lights work. The cruise control, power windows, and rear window wiper don't work.. The TOD system also works. What has gone a foul?
Nov 25, 2011 at 4:48 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

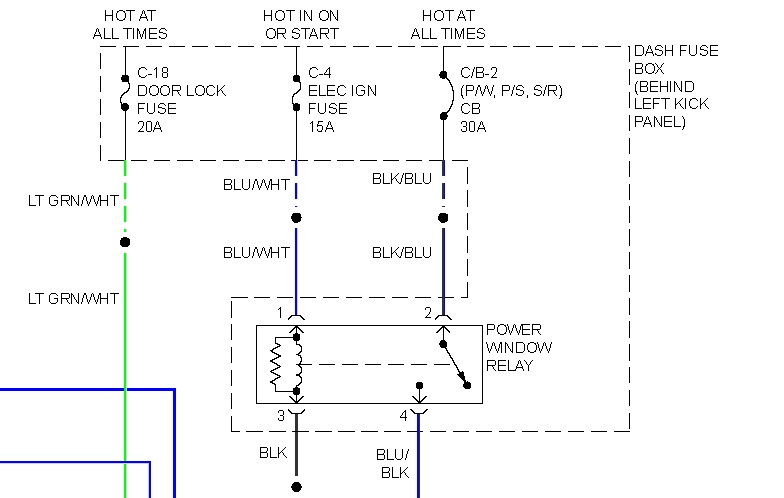

As far as the power window, check the fuse and circuit breaker in diagram.

Check the wiring harness to master switch, voltage and ground. The wiring harness should be on hinge side of driver door, may have a rubber boot protecter, pull the rubber back to access voltage and ground wires. The voltage should be a blue wire with black tracer. The ground wire is black.
Image (Click to enlarge)
Attached Media
Nov 25, 2011 at 6:17 PM
