1999 Infiniti G20 cabin blower motor noise

1999 INFINITI G20
186,000 MILES • 2.0L • 4 CYL • FWD • AUTOMATIC
Avatar
JAZZBUFF2
  • MEMBER
  • 1 POST
My fan blower(air/ac/heating) has been making noise for several years (originally sounded as if fan blades might be hitting a piece of paper). Now it's considerably louder. I understand several years ago Mfg. Issued a tech notice to dealers on how to place an additional cover on the blower (or fan). This part can be ordered from dealer for about $17.00 (currently out of stock), but the people I asked were a little unclear how to install.
How do I remove the dash on the passenger side, or perhaps just the glove box, or both to get to this blower?
Thanks for your help.
Feb 28, 2014 at 10:53 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
it's probably the blower is worn out
Remove the instrument panel lower cover (if equipped).
Disconnect the blower motor harness connector.
Clean the blower motor housing to ensure adhesive strips on the back of the blower motor cover will stick (standard window cleaner or other all-purpose cleaner can be used).
NOTE: Be sure to remove all residual film from the blower motor housing that may have been left by cleaning.

Peel the protective coverings from the adhesive strips on the blower motor cover (see Fig. 1 for adhesive strip locations).

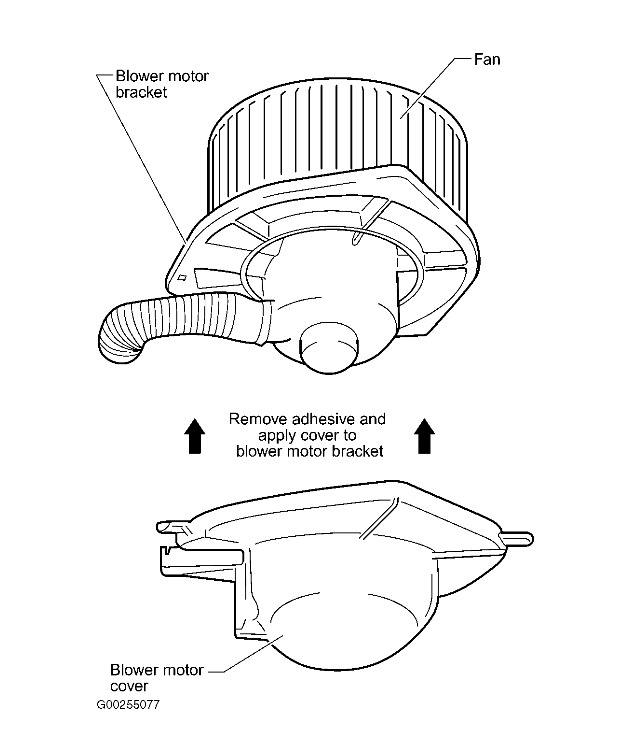

Install the blower motor cover onto the motor bracket (see Fig. 2).
Image (Click to enlarge)
Attached Media
Mar 1, 2014 at 6:40 AM
