Head Bolt Torque and Sequence

1999 HONDA CRV
4 CYL • AUTOMATIC
Avatar
NICOLENIC74
  • MEMBER
  • 1 POST
Head Bolt sequence diagram Honda CRV 99
Jul 10, 2011 at 5:14 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Tighten in 2 stages.
1st step = 22 ft.lbs (30 n.M)
2nd step = 63 ft.lbs (85 n.M)

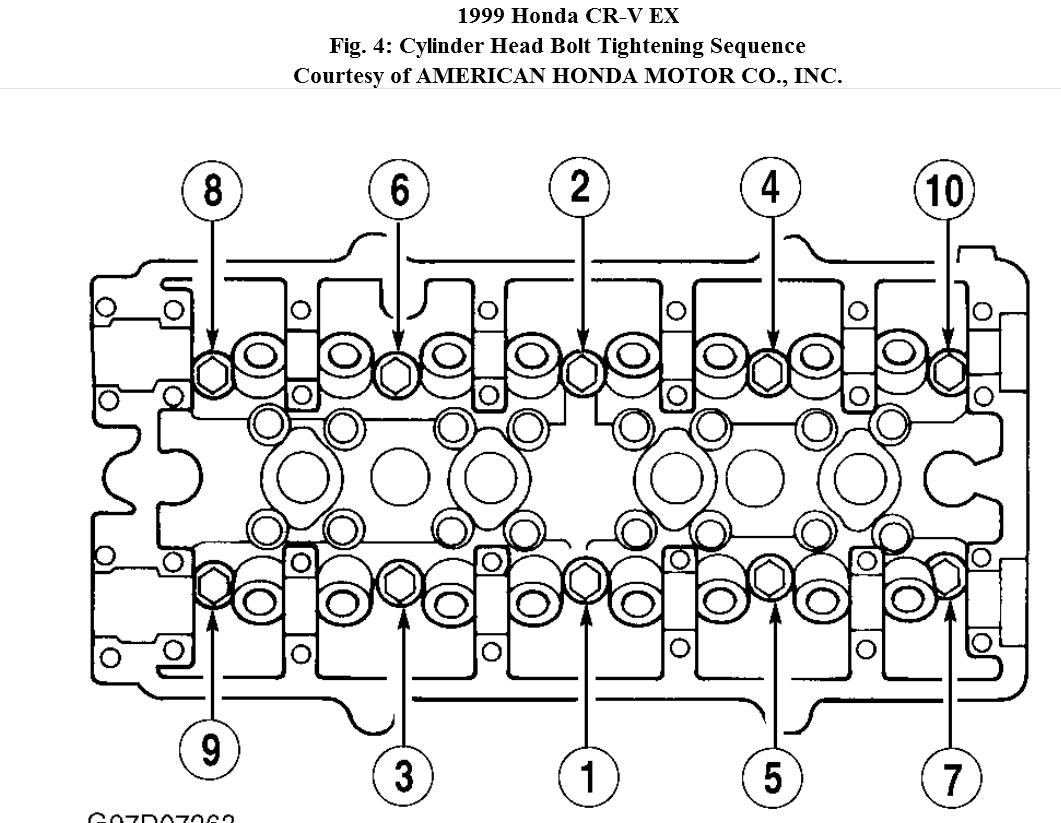

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Jul 10, 2011 at 6:33 AM
