Is there a relay fuse for a 1999 Honda Civic windshield washer?

1999 HONDA CIVIC
208,370 MILES
Avatar
VAZZIE1212
  • MEMBER
  • 2 POSTS
Washer fluid won't spray and I don't hear the motor.
Jan 22, 2012 at 7:14 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

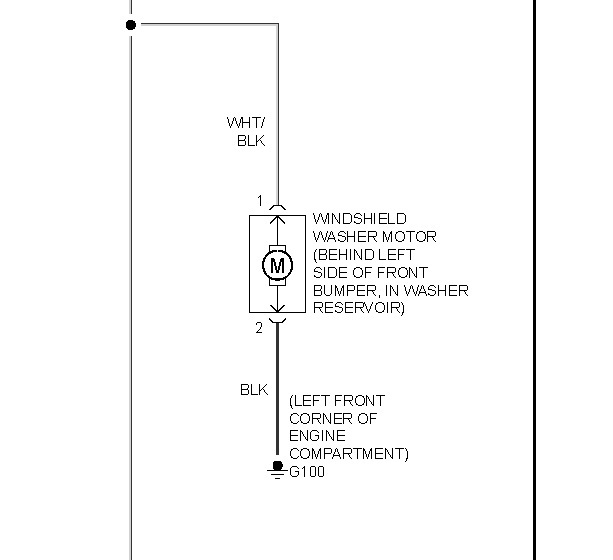

My hearing is no good, I'd have to feel of washer motor. In the diagram, top wire is voltage, black wire is ground, with washer activated . Check voltage and ground, if both are good and no washer motor action, suspect the motor.
Image (Click to enlarge)
Attached Media
Jan 22, 2012 at 7:30 PM
