Brake lights out on 1999 Ford Windstar

1999 FORD WINDSTAR
128,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
CRDUBOSE
  • MEMBER
  • 1 POST
1999 Ford Windstar Van brake light on passenger side not working. Changed bulb, changed plug and still does not work. Tail lights work but not brake lights Now the tag lights have gone out. Changed bulbs and it still does not work.
Jan 9, 2011 at 1:38 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
At right rear quarter inside trunk there is a Rear Electronic Module. Check the continuity of wire between the module and brake bulb socket.

Check terminal 1 or 5 for continuity to grund with brake pedal depressed.
Jan 9, 2011 at 11:05 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

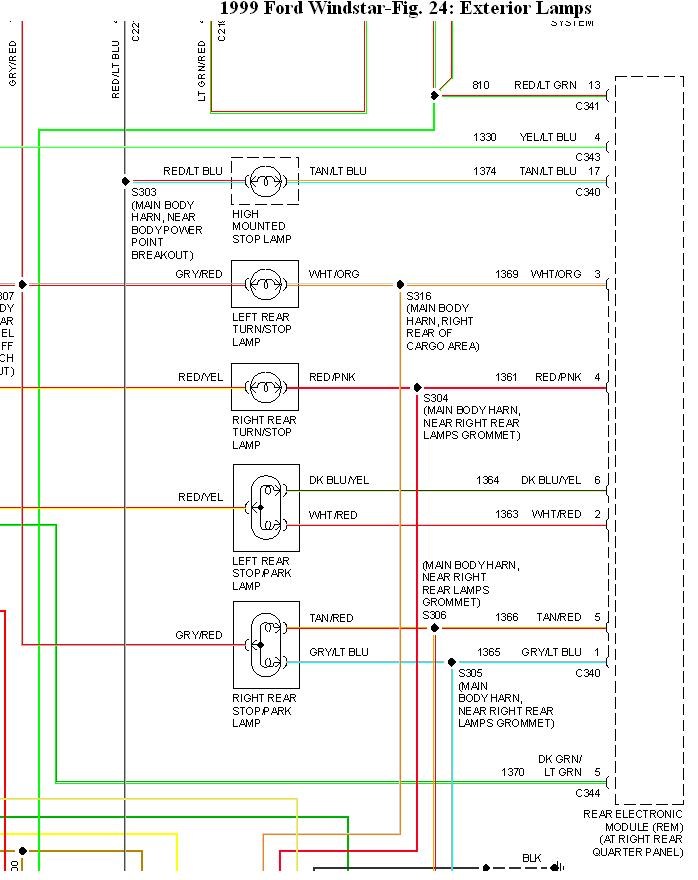

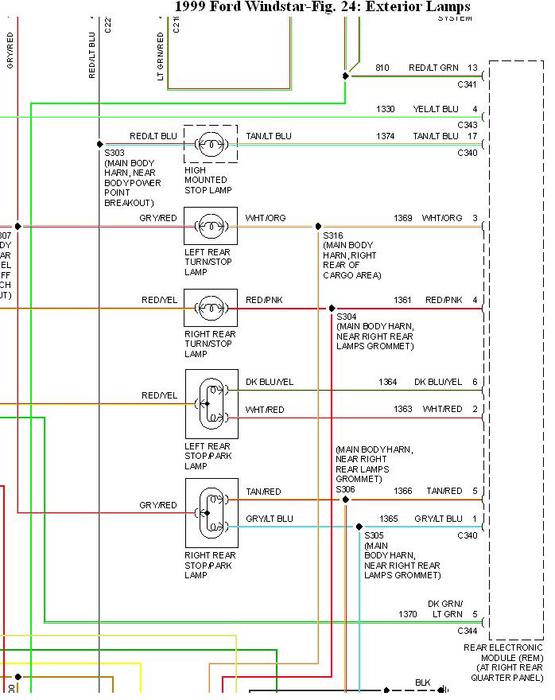

Sorry I missed out the diagram.
Image (Click to enlarge)
Attached Media
Jan 9, 2011 at 11:06 AM
