Reinstalling fuel tank

1999 FORD RANGER

52,000 MILES

RLOFTY

MEMBER
1 POST
FOLLOW

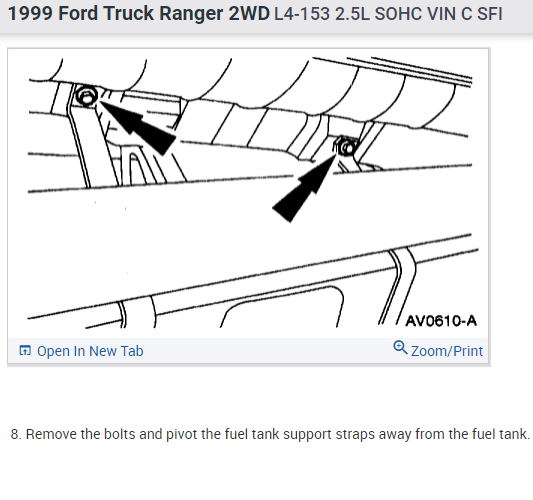

Fuel tank removal went ok, but have great-deal of difficulty when attempting to align bolt-hole in strap to body...

How do I reinstall the tank? Any tricks?

Mar 6, 2012 at 10:02 PM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

There are nothing particularly tricky for the tank installation. Unless you might have missed a step during removal, which can make it little tricky to get it aligned properly.

Refer to this installation video:

https://youtu.be/OKbo6wrKCk4

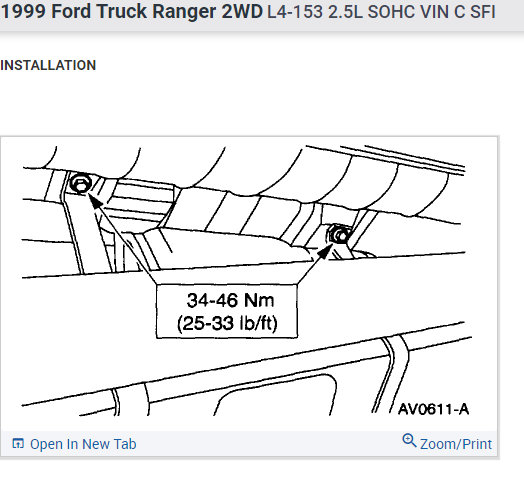

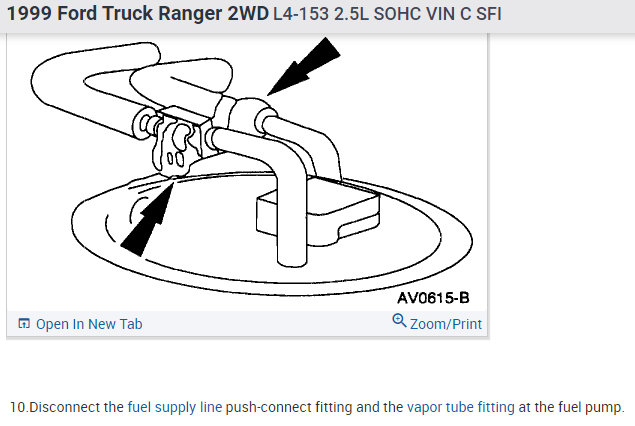

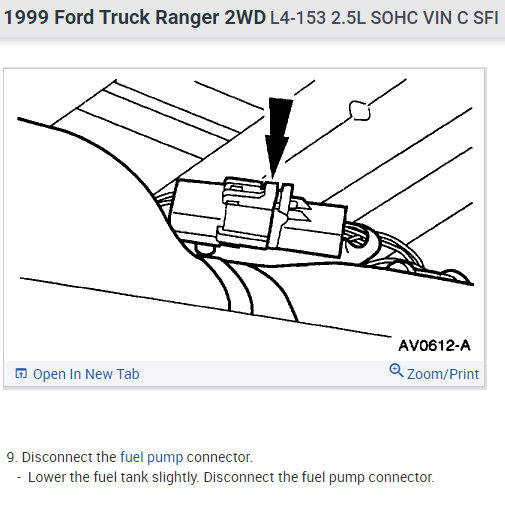

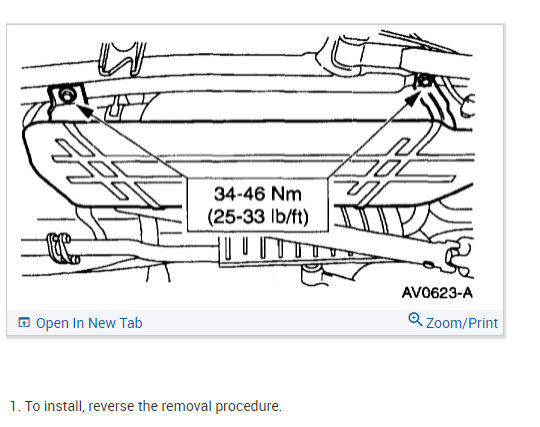

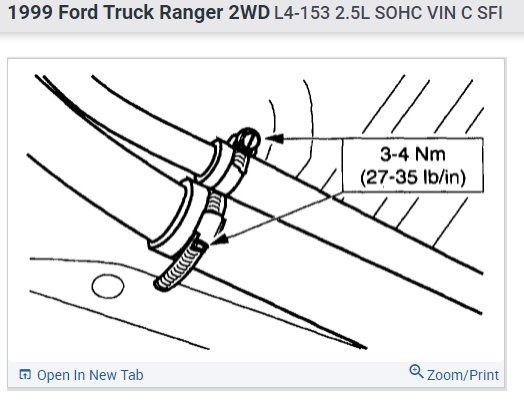

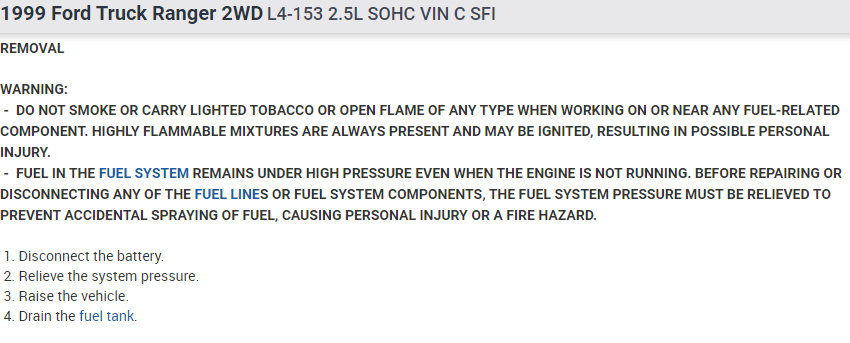

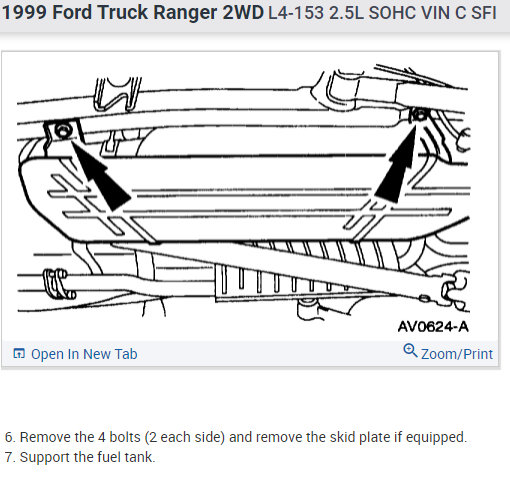

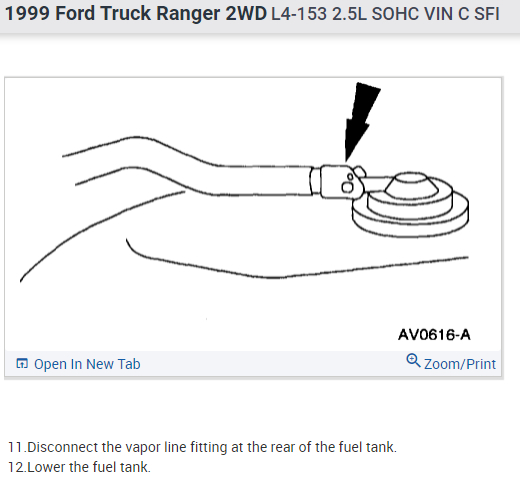

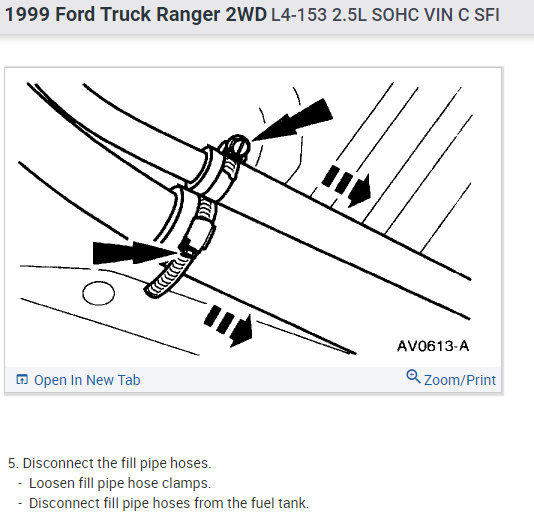

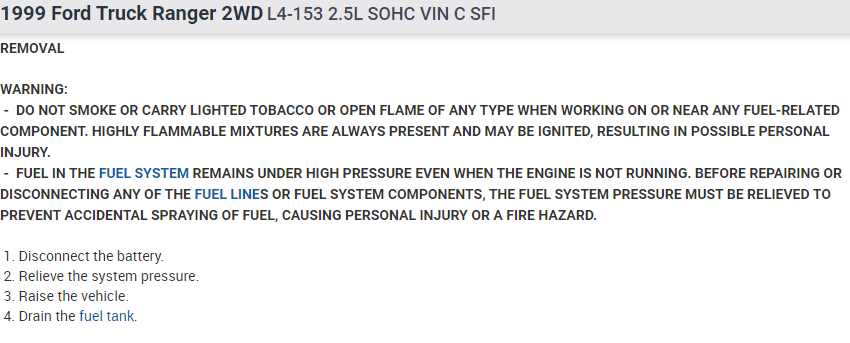

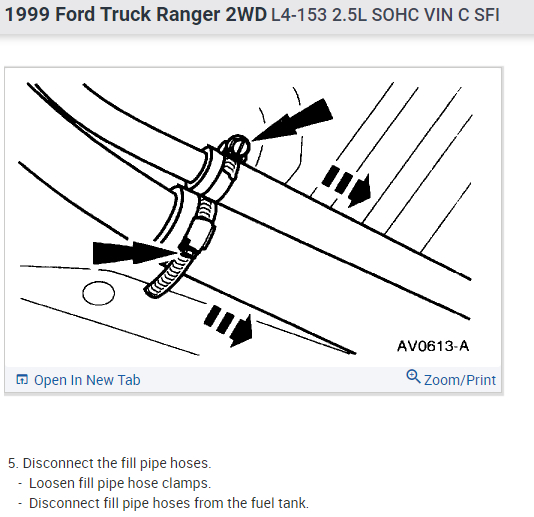

I have attached the replacement procedure.

Let me know of any questions.

Thank you.

Images (Click to enlarge)
